Features

• Negligible switching losses

• Low forward voltage drop

• Avalanche rated

• ECOPACK2 component

Applications

• Switching diode

• SMPS

• DC/DC converter

• LED lighting

Description

Axial and surface mount power Schottky rectifier suited for switch mode power

supplies and high frequency dc to dc converters.

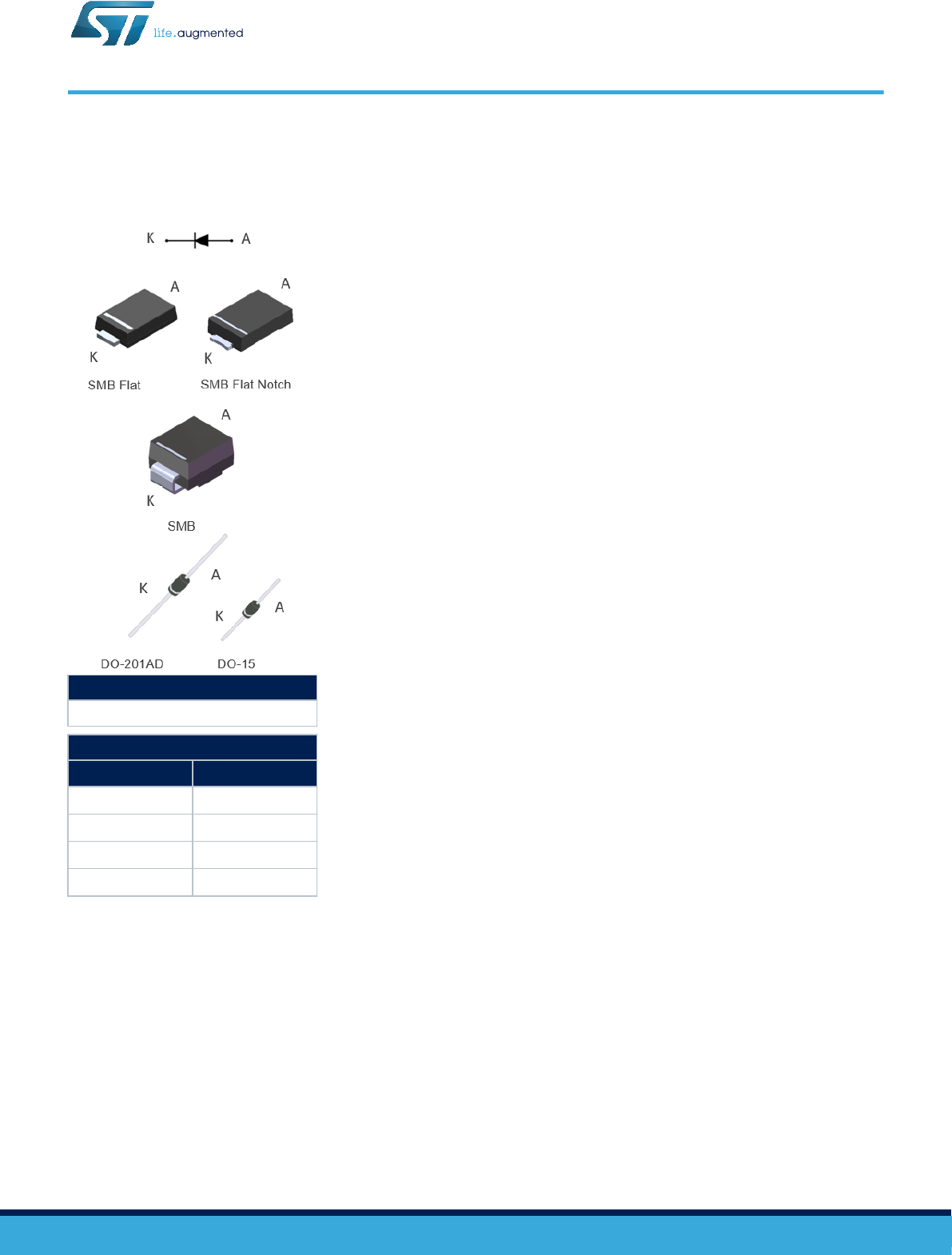

Packaged in DO-201AD, DO-15, SMB, SMBflat and SMBflat Notch, this device is

intended for use in low voltage, high frequency inverters and small battery chargers

and for applications where there are space constraints, for example telecom battery

charger.

Product status

STPS3L60

Product summary

Symbol Value

F(AV)

3 A

RRM

60 V

j(max.)

150 °C

F(typ.)

0.53 V

60 V, 3 A low drop Schottky rectifier

STPS3L60

Datasheet

DS2134 - Rev 7 - January 2020

For further information contact your local STMicroelectronics sales office.

www.st.com

Summary of content (17 pages)

PAGE 1
STPS3L60 Datasheet 60 V, 3 A low drop Schottky rectifier Features • • • • Negligible switching losses Low forward voltage drop Avalanche rated ECOPACK2 component Applications • • • • Switching diode SMPS DC/DC converter LED lighting Description Axial and surface mount power Schottky rectifier suited for switch mode power supplies and high frequency dc to dc converters.
PAGE 2
STPS3L60 Characteristics 1 Characteristics Table 1. Absolute ratings (limiting values at 25 °C, unless otherwise specified) Symbol Parameter Value Unit VRRM Repetitive peak reverse voltage 60 V IF(RMS) Forward rms current 10 A 3 A SMB Flat Notch, SMB Flat TL = 115 °C IF(AV) Average forward current, δ = 0.
PAGE 3
STPS3L60 Characteristics To evaluate the conduction losses, use the following equation: P = 0.44 x IF(AV) + 0.
PAGE 4
STPS3L60 Characteristics (curves) 1.1 Characteristics (curves) Figure 1. Average forward power dissipation versus average forward current Figure 2. Average forward current versus ambient temperature (δ = 0.5) (SMB Flat, SMB Flat Notch) PF(AV)(W) IF(AV)(A) 2.50 δ = 0.1 δ = 0.05 2.25 δ = 0.2 3.5 δ = 0.5 Rth(j-a)=Rth(j-l) 3.0 2.00 δ=1 1.75 2.5 1.50 2.0 1.25 1.5 1.00 0.75 0.50 0.5 IF(AV)(A) 0.25 δ=tp/T 0.00 0.0 0.5 1.0 1.5 2.0 2.5 3.0 Tamb (°C) tp 0.0 3.5 4.0 Figure 3.
PAGE 5
STPS3L60 Characteristics (curves) Figure 7. Relative variation of thermal impedance junction Figure 8. Relative variation of thermal impedance junction to ambient versus pulse duration (SMB) to ambient versus pulse duration (DO-201AD) 1.0 Zth(j-a) /Rth(j-a) 1.0 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.6 0.5 0.5 0.4 0.4 0.3 0.3 0.2 0.2 Single pulse 0.1 0.1 t p (s) 0.0 Single pulse t p (s) 0.0 1.E-01 1.E+00 1.E+01 1.E+02 1.E+03 Figure 9.
PAGE 6
STPS3L60 Characteristics (curves) Figure 13. Forward voltage drop versus forward current (low level) Figure 14. Thermal resistance junction to ambient versus copper surface under each lead (SMB flat, SMB flat Notch) IFM(A) 5 Rth(j-a)(°C/W) 200 Tj=100°C (Typical values) SMB flat SMB flat Notch Epoxy printed board FR4, copper thickness: 35 μm 4 150 3 Tj=100°C (Maximum values) 100 2 Tj=25°C (Maximum values) 50 1 VFM(V) SCu (cm²) 0 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.
PAGE 7
STPS3L60 Package information 2 Package information In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark. 2.1 SMB Flat Notch package information • • Epoxy meets UL94, V0 Lead-free package Figure 18.
PAGE 8
STPS3L60 SMB Flat Notch package information Table 4. SMB Flat Notch mechanical data Dimensions Ref. Millimeters Min. A Typ. 0.90 A1 Inches Max. Min. 1.10 0.035 0.05 Typ. Max. 0.043 0.002 b 1.95 2.20 0.077 0.087 c 0.15 0.40 0.006 0.016 D 3.30 3.95 0.130 0.156 E 5.20 5.60 0.205 0.220 E1 4.05 4.60 0.159 0.181 G 2.00 0.079 G1 1.20 0.047 L 0.75 1.20 0.030 0.047 L1 0.30 0.012 L2 0.60 0.024 L3 0.02 0.001 V 8° 8° V1 8° 8° Figure 19.
PAGE 9
STPS3L60 SMB package information 2.2 SMB package information • • Epoxy meets UL94, V0 Lead-free package Figure 20. SMB package outline E1 D E A1 C A2 L b Table 5. SMB package mechanical data Dimensions Millimeters Ref. DS2134 - Rev 7 Inches (for reference only) Min. Max. Min. Max. A1 1.90 2.45 0.074 0.097 A2 0.05 0.20 0.001 0.008 b 1.95 2.20 0.076 0.087 c 0.15 0.40 0.005 0.016 D 3.30 3.95 0.129 0.156 E 5.10 5.60 0.200 0.221 E1 4.05 4.60 0.159 0.182 L 0.
PAGE 10
STPS3L60 SMB package information Figure 21. SMB recommended footprint 1.62 2.60 1.62 (0.064) (0.102) (0.064) 2.18 (0.086) 5.84 (0.
PAGE 11
STPS3L60 SMB Flat package information 2.3 SMB Flat package information • • Epoxy meets UL94, V0 Lead-free package Figure 22. SMB Flat package outline A c D L 2x L1 2 x E E1 L2 2 x b Table 6. SMB Flat mechanical data Dimensions Ref. Millimeters Min. DS2134 - Rev 7 Typ. Inches Max. Min. Typ. Max. A 0.90 1.10 0.035 0.044 b 1.95 2.20 0.076 0.087 c 0.15 0.40 0.005 0.016 D 3.30 3.95 0.129 0.156 E 5.10 5.60 0.200 0.221 E1 4.05 4.60 0.159 0.182 L 0.75 1.50 0.029 0.
PAGE 12
STPS3L60 SMB Flat package information Figure 23. Footprint recommendations, dimensions in mm (inches) 1.20 (0.047) 3.44 (0.136) 1.20 (0.047) 2.07 (0.082) 5.84 (0.
PAGE 13
STPS3L60 DO-201AD package information 2.4 DO-201AD package information • Epoxy meets UL 94, V0 Figure 24. DO-201AD package outline B A E Note 1 B E Note 1 ØD Note 2 ØC Table 7. DO-201AD package mechanical data Dimensions Millimeters Ref. Min. A B 25.40 Inches (for reference only) Typ. Max. - 9.50 - Min. 1.000 Typ. Max. - 0.374 - C - 5.30 - 0.209 D(1) - 1.30 - 0.051 E - 1.25 Note 2(2) 15.00 0.049 0.590 1. The lead diameter D is not controlled over zone E 2.
PAGE 14
STPS3L60 DO-15 package information 2.5 DO-15 package information • Epoxy meets UL 94, V0 Figure 25. DO-15 package outline C C A ØD ØB Table 8. DO-15 package mechanical data Dimensions Ref. DS2134 - Rev 7 Millimeters Inches (for reference only) Min. Typ. Max. Min. Typ. Max. A 6.05 - 6.75 0.238 - 0.266 B 2.95 - 3.53 0.116 - 0.139 C 26.00 - 31.00 1.024 - 1.220 D 0.71 - 0.88 0.028 - 0.
PAGE 15
STPS3L60 Ordering Information 3 Ordering information Table 9. Ordering information DS2134 - Rev 7 Order code Marking Package Weight Base qty. Delivery mode STPS3L60UFN B36 SMB Flat Notch 0.056 g 5000 Tape and reel STPS3L60U G36 SMB 0.107 g 2500 Tape and reel STPS3L60UF FG36 SMB Flat 0.050 g 5000 Tape and reel STPS3L60RL STPS3L60 DO-201AD 1.12 g 1900 Tape and reel STPS3L60Q STPS3L60 DO-15 1000 Ammopack STPS3L60QRL STPS3L60 DO-15 6000 Tape and reel 0.
PAGE 16
STPS3L60 Revision history Table 10. Document revision history DS2134 - Rev 7 Date Version Changes July-2003 5A 12-Jun-2009 6 Reformatted to current standards. Added SMBflat package. Added ECOPACK statement. Added cathode band graphics. 31-Jan-2020 7 Added Section 2.1 SMB Flat Notch package information. Previous issue.
