6.6 MATRIX AIS+ CONNECTIONS
The image and table below show the wires of the MATRIX AIS+ (GX2150) and
the connections to optional devices such as a PA Speaker (Horn), External
Speaker and a GPS Chart plotter.
The GX2150 uses NMEA 0183 protocol to share coordinates, DSC and AIS
information to and from a GPS chart plotter. The GX2150 transfers targets to a
GPS Chart plotter or PC at 38400 baud (sometimes called High Speed HS).
GPS and DSC information is transferred to a GPS Chart Plotter with multiple
ports (minimum 2) at 4800 baud (default setting).
To connect to a GPS Chart Plotter which has one NMEA port, the GX2150 may
be setup to receive GPS coordinates, send DSC and AIS signals at 38400.
Refer to section “10.10 NMEA DATA IN/OUT” for details.
6.6.1 MATRIX AIS+ 4800 Baud Connections

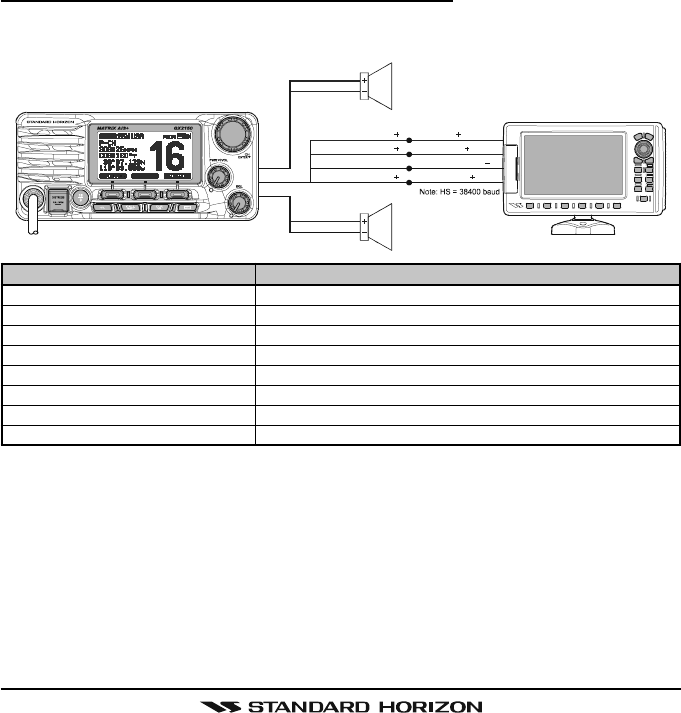

Use the image and table below when connecting to a GPS Chart plotter which
has two or more NMEA 0813 ComPorts.
GPS Receiver
PA Speaker
External Speaker
Shield
Shield
Red
White
Plotter Connection
Radio Wires
Green: NMEA Common
Gray: NMEA Output
( )
NMEA OUT
( )
NMEA COMMON
( )
NMEA IN
( )
NMEA-HS IN
( )
Blue: NMEA Input
( )
Brown: NMEA Output
( )
Wire Color/Description
WHITE - External Speaker
(
+
)
SHIELD - External Speaker
(–)
RED - PA Speaker
(
+
)
SHIELD - PA Speaker
(–)
GREEN - NMEA Ground
BLUE - NMEA GPS Input
(
+
)
GRAY - NMEA DSC Output
(
+
)
BROWN - AIS DATA Output
(
+
)
Connection Examples
Positive wire of an 4 Ohm external speaker
Negative wire of an 4 Ohm external speaker
Positive wire of an 4 Ohm PA speaker
(
horn
)
Negative wire of an 4 Ohm PA speaker
(
horn
)
GPS Chart Plotter NMEA 0183 common
GPS Chart Plotter NMEA 0183 output positive wire
1
GPS Chart Plotter NMEA 0183 input positive wire
1
GPS Chart Plotter NMEA input positive wire
2
1: 4800 baud
2: 38400 baud
