User Manual

Page 77GX2000/GX2150
10 GENERAL SETUP
The optional RAM3
(
CMP30
)
Remote Station Microphone can also
change the SETUP menu using the following procedure.

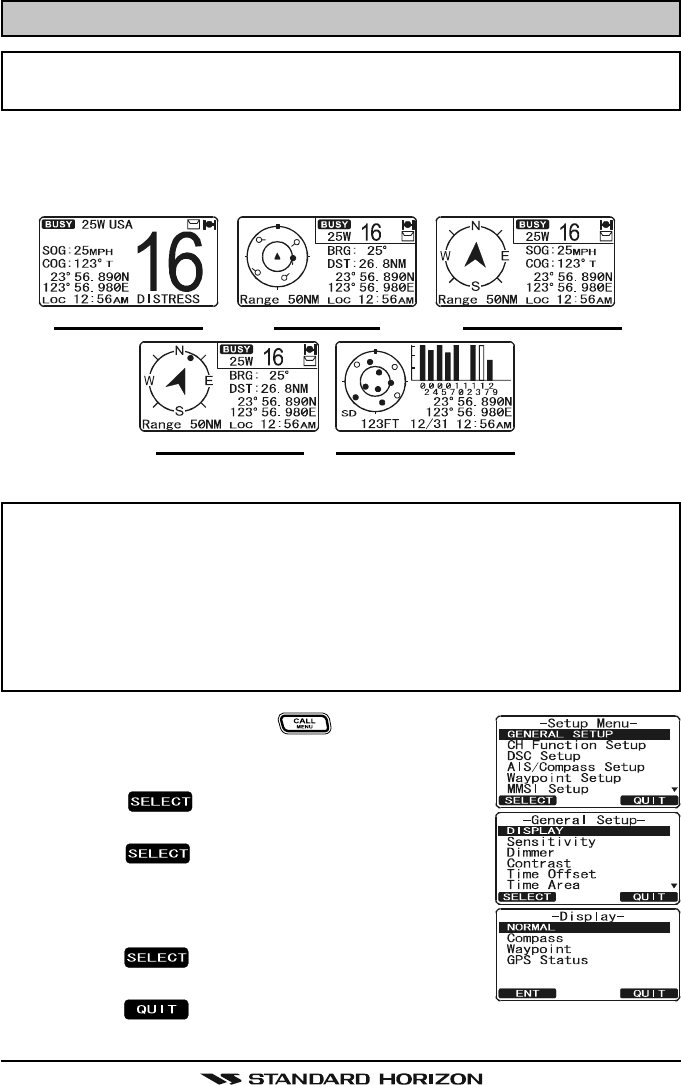

10.1 DISPLAY
The GX2000/GX2150 can select additional screens other than the default
normal (Radio) display by using the procedure below.
NOTE
1. By default the COG in “NORMAL” and “COMPASS” displays and
BRG in “AIS”, “COMPASS”, and “WAYPOINT” displays are set to
“True”, however this may be change to magnetic by following the
steps in section “10.9 MAGNETIC”.
2. The “GPS STATUS” display is only available on the GX2150. For this
display to operate correctly, the GX2150 must be connected to a GPS
Chart plotter which outputs NMEA 0183 GSA and GSV sentences.
1. Press and hold down the key until “Setup
Menu” appears, then select “GENERAL SETUP” with
the CHANNEL knob.
2. Press the soft key, then rotate the CHAN-
NEL knob to select “DISPLAY”.
3. Press the soft key.
4. Rotate the CHANNEL knob to select desired screen
type “NORMAL”, “AIS”, “COMPASS”, “WAYPOINT”, or
“GPS Status”.
5. Press the soft key to store the selected set-
ting.
6. Press the soft key several times to return to
radio operation.
“NORMAL” DISPLAY
1
“COMPASS” DISPLAY
1
“AIS” DISPLAY
1
“GPS STATUS” DISPLAY
2
“WAYPOINT” DISPLAY
