User Manual

GX2000/GX2150Page 86

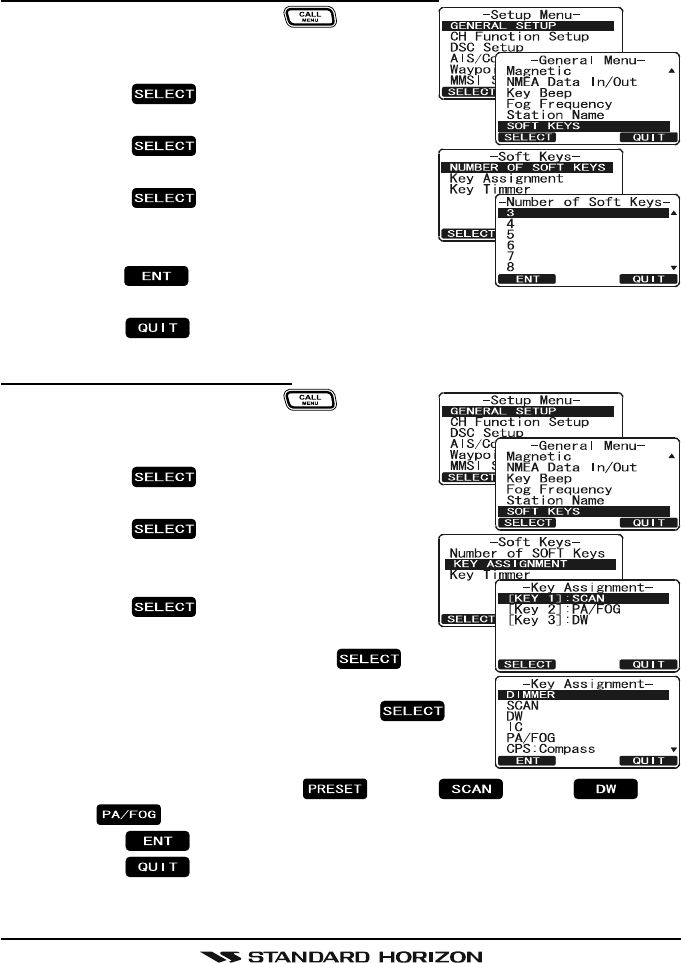

10.14 SOFT KEYS
This menu item allows selection of the number of soft keys, soft key selection
and how long the display will show the soft key icon after a soft key is pressed.
10.14.1 Selecting the Number of Soft Keys
1. Press and hold down the key until
“Setup Menu” appears, then select “GENERAL
SETUP” with the CHANNEL knob.
2. Press the soft key, then rotate the
CHANNEL knob to “SOFT KEY”.
3. Press the soft key, then rotate the
CHANNEL knob to “NUMBER OF SOFT KEYS”.
4. Press the soft key, then rotate the
CHANNEL knob to select the number of soft
keys (3 through 10).
5. Press the soft key to store the selected set-
ting.
6. Press the soft key several times to return to radio operation.
10.14.2 Assigning Soft Keys
1. Press and hold down the key until
“Setup Menu” appears, then select “GENERAL
SETUP” with the CHANNEL knob.
2. Press the soft key, then rotate the
CHANNEL knob to “SOFT KEY”.
3. Press the soft key, then rotate the
CHANNEL knob to “KEY ASSIGNMENT” (to
change the use of selected soft keys).
4. Press the soft key, then rotate the
CHANNEL knob to select the key (“KEY1”,
“KEY2”, or “KEY3”) and press the soft key.
Then, rotate the CHANNEL knob to select the new
function to be assigned, and press the soft
key. Available functions are listed on the next page.
5. Repeat step 4 to program the other soft keys.
The factory defaults are Key 1: , Key 2: , Key 3: , and
Key 4: .
6. Press the soft key to store the selected setting.
7. Press the soft key several times to return to radio operation.
