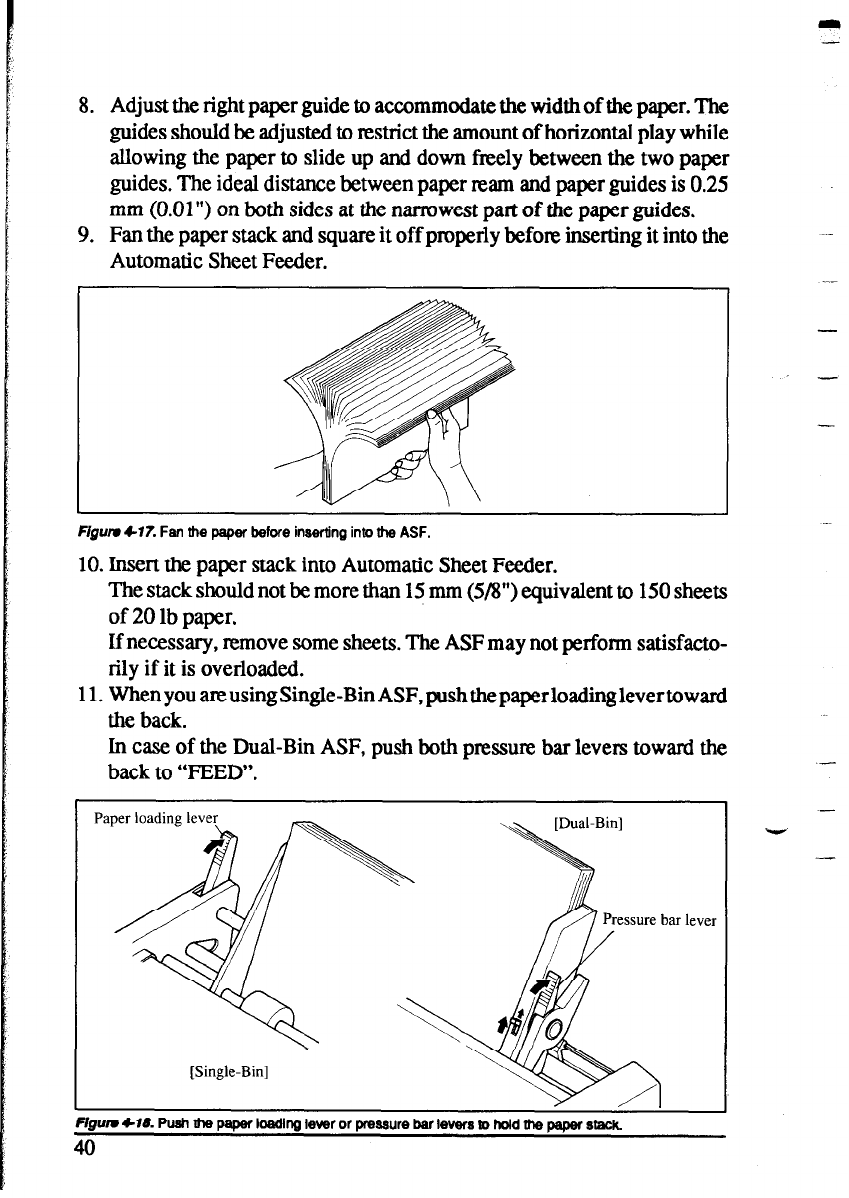

8. Adjust the right paper guide to accommodate the width of the paper. The
guides should be adjusted to restrict the amount of horizontal play while
allowing the paper to slide up and down freely between the two paper
guides. The ideal distance between paper team and paper guides is 0.25
mm (0.01”) on both sides at the narmwest part of the paper guides.
9. Fan the paper stack and square it off properly before inserting it into the
Automatic Sheet Feeder.
Figurn 417. Fan the paper before inserting into the ASF.
10. Insert the paper stack into Automatic Sheet Feeder.
The stack should not be more than 15 mm (5/V) equivalent to 150 sheets
of 20 lb paper.
If necessary, remove some sheets. The ASF may not perform satisfacto-
rily if it is overloaded.
11. When you are using Single-Bin ASF, push the paper loading lever toward
the back.
ln case of the Dual-Bin ASF, push both pnxsute bar levers toward the
back to “FEED”.
Paper loading leve
eswre bar lever
[Single-Bin]
-
-
-
Figwv 416. Push the Paper loading lever or pressure bar levers to hold the paper stack.
40
