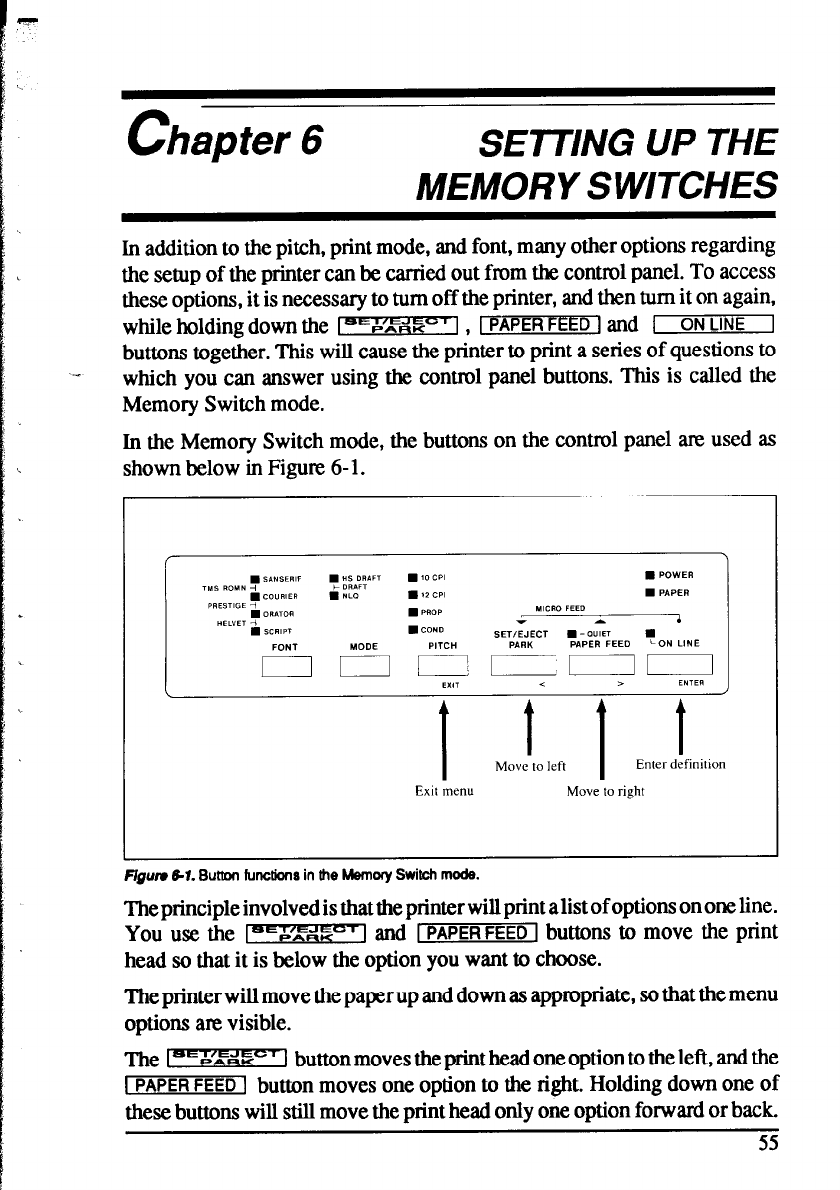

Multi-Font User's Manual

.-
chapter 6
SETTING UP THE
MEMORY SWITCHES
In addition to the pitch, print mode, and font, many other options regarding
the setup of the printer can be carried out from the control panel. To access
these options, it is necessary to turn off the printer, and then turn it on again,
while holdingdownthe [8k&%4ZG’ I, I PAPER FtED 1 and I
ON LINE
I
buttons together. This will cause the printer to print a series of questions to
which you can answer using the control panel buttons. This is called the
Memory Switch mode.
In the Memory Switch mode, the buttons on the control panel are used as
shown below in Figure 6-l.
Exit rnen~~
Move to right
Figutv 6-T. Bulton funcliona in the kdemofy switch mode.
The principle involved is that the printer will print alist of options on one line.
You use the m and I PAPER FEED 1 buttons to move the print
head so that it is below the option you want to choose.
The printer will move the paper up and down as appropriate, so that the menu
options are visible.
The P&%4- button moves the print head one option to the left, and the
I PAPER FEED 1 button moves one option to the right. Holding down one of
these buttons will still move the print head only one option forward or back.
55
