Multi-Font User's Manual

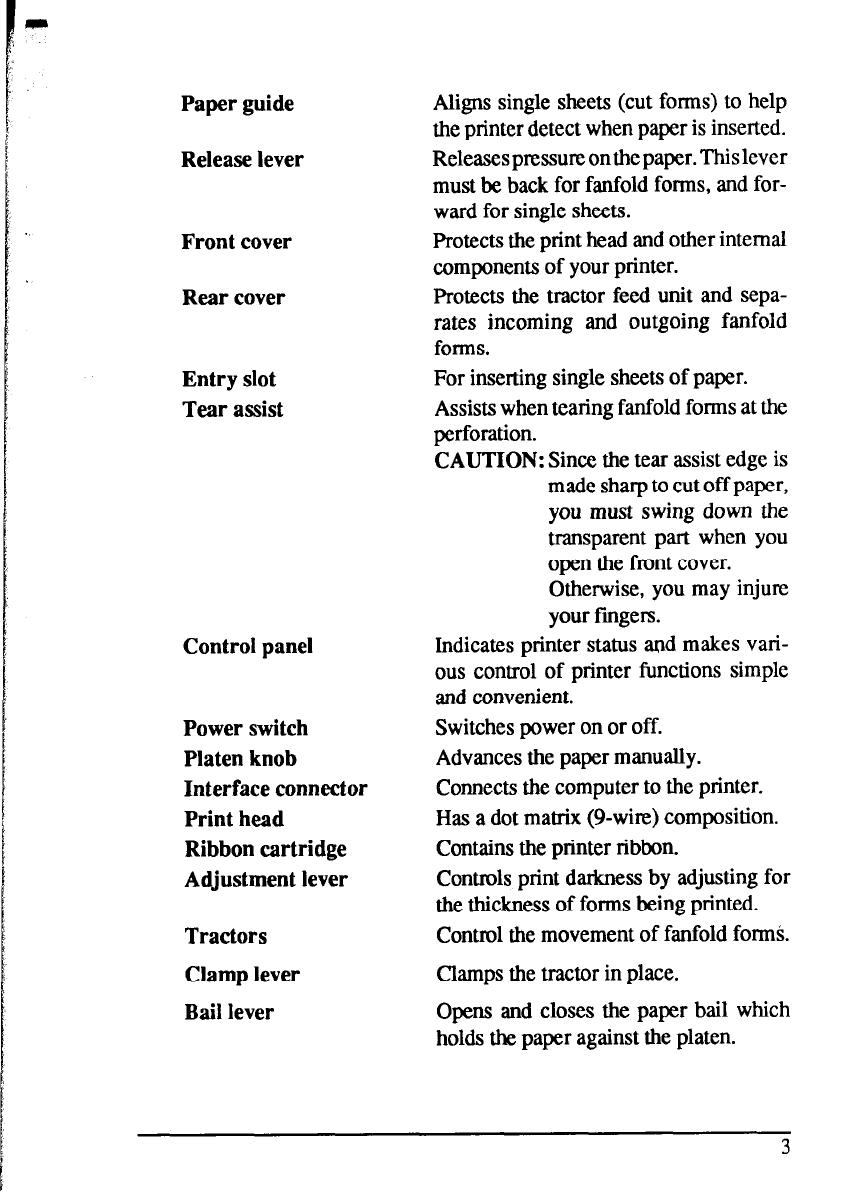

Paper guide
Release lever
Front cover
Rear cover
Entry slot
Tear assist
Control panel
Power switch
Platen knob
Interface connector
Print head
Ribbon cartridge
Adjustment lever
Tractors
Clamp lever
Bail lever
Aligns single sheets (cut forms) to help
the printer detect when paper is inserted.
Releasespressureonthepaper.Thislever
must be back for fanfold forms, and for-
ward for single sheets.
Protects the print head and other internal
components of your printer.
Protects the tractor feed unit and sepa-
rates incoming and outgoing fanfold
forms.
For inserting single sheets of paper.
Assists when tearing fanfold forms at the
perforation.
CAUTION: Since the tear assist edge is
made sharp to cut off paper,
you must swing down the
transparent part when you
open the front cover.
Otherwise, you may injure
your fingers.
Indicates printer status and makes vari-
ous control of printer functions simple
and convenient.
Switches power on or off.
Advances the paper manually.
Connects the computer to the printer.
Has a dot matrix (9-w&) composition.
Contains the printer ribbon.
Controls print darkness by adjusting for
the thickness of forms being printed.
Control the movement of fanfold forms.
Clamps the tractor in place.
Opens and closes the paper bail which
holds the paper against the platen.
