Multi-Font User's Manual

PULL TRACTOR UNIT (PT-1 OXM/15XM)
You can use the FW Tractor Unit to print on fanfold forms or multi-part
forms.
The procedure to mount the Pull Tractor Unit is:
1. Open the front cover by lifting up the back using the two grips on either
side, then swing down the transparent part (see Figure 3- 1).
2. Open the rear cover by lifting up the front using the two grips on either
side, then remove it upward.
If the paper guide is installed, remove it before taking off the rear cover.
3. Move the bail lever on top of the printer forward to open the paper bail.
4. Squeeze the sides of the paper supports lightly, and insert into the holes
on both side of the Pull Tractor Unit as shown in Figure 3-10.
support B
-. - _ - . .
_ .- -..-

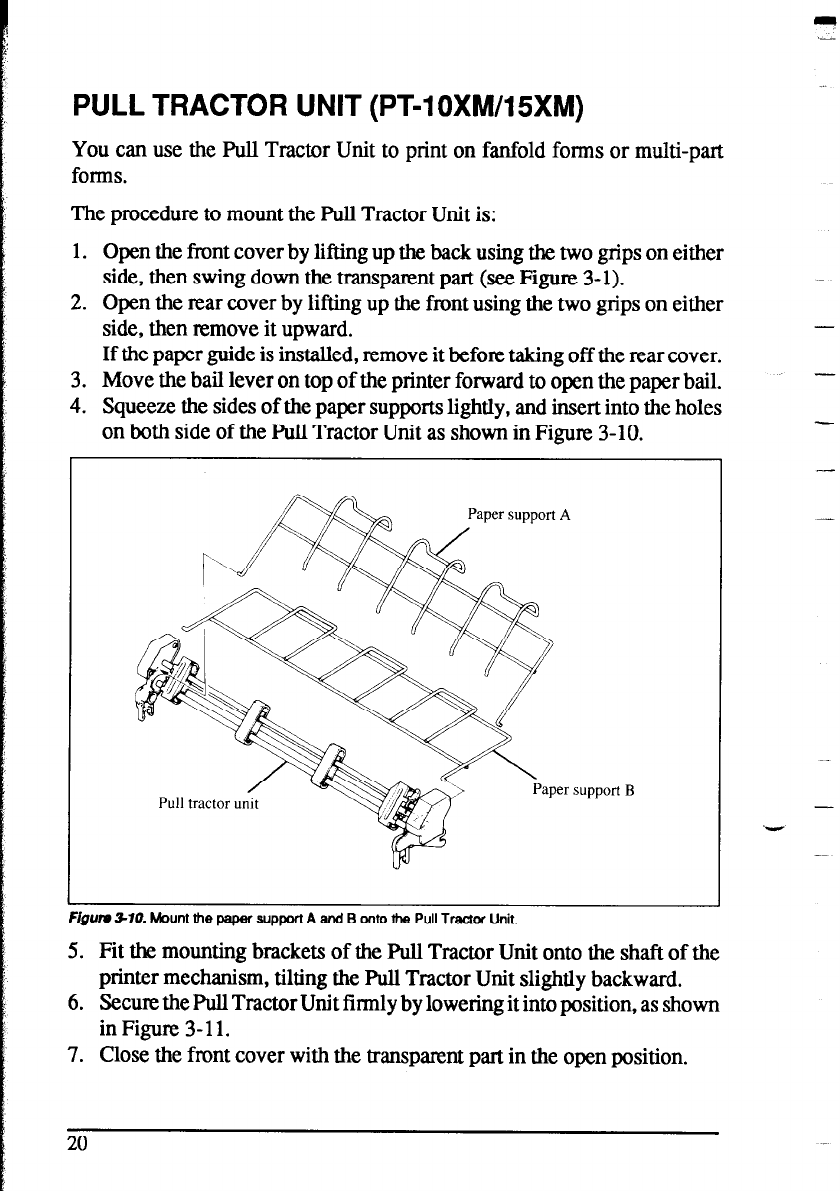

rlgum ~7~7. Mounl me paper support A and B onto me Pull TraCtOr Unit.
5. Fit the mounting brackets of the F%ll Tractor Unit onto the shaft of the
printer mechanism, tilting the Pull Tractor Unit slightly backward.
6. Secure the Pull Tractor Unit firmly by lowering it into position, as shown
inFigure 3-11.
7. Close the front cover with the transparent part in the open position.
-
-
-
20
