Multi-Font User's Manual

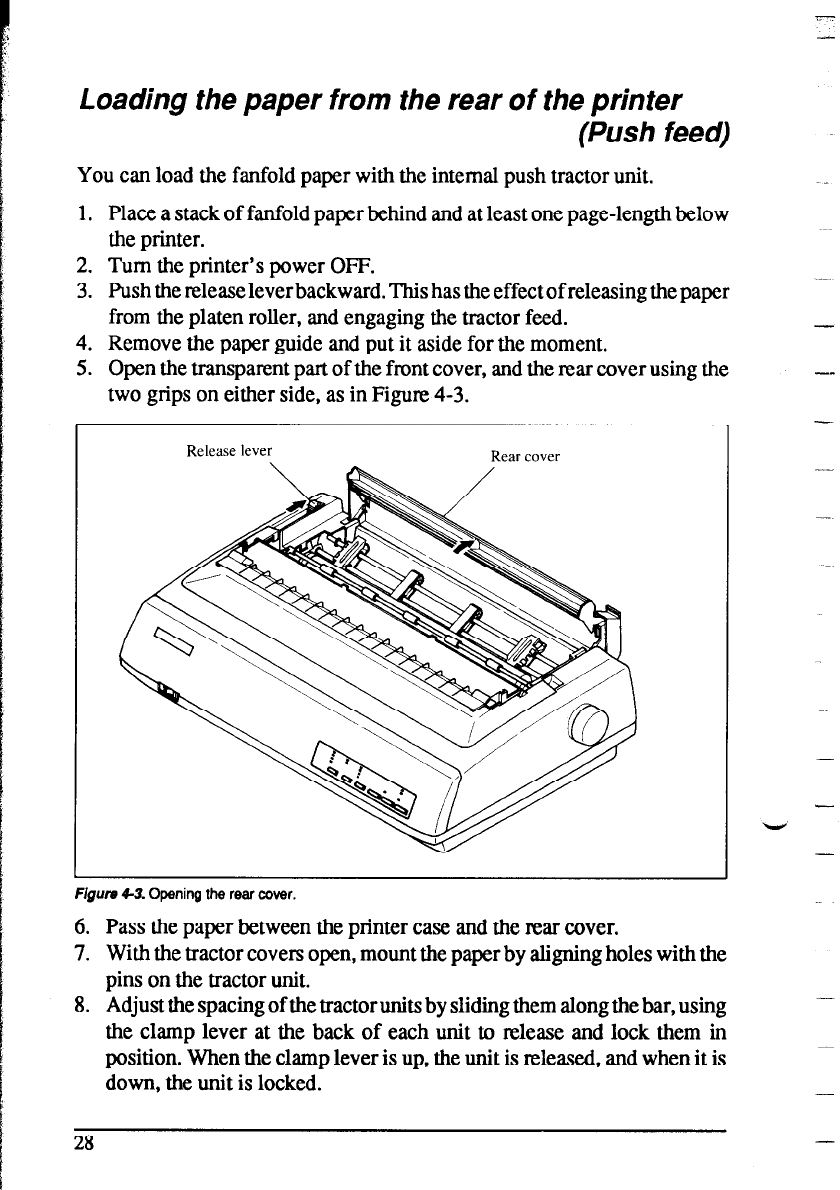

Loading the paper from the rear of the printer
(Push feed)
You can load the fanfold paper with the internal push tractor unit.
1. Place a stack of fanfold paper behind and at least one page-length below
the printer.
2. Turn the printer’s power OFF.
3. Push the release lever backward. This has the effect of releasing the paper
from the platen roller, and engaging the tractor feed.
4. Remove the paper guide and put it aside for the moment.
5. Open the transparent part of the front cover, and the rear cover using the
two grips on either side, as in Figure 4-3.
-~
-
--
Release lever
Rear cover
F/gum 43. Opening the rear cover.
6. Pass the paper between the printer case and the rear cover.
7. With the tractor covers open, mount the paper by aligning holes with the
pins on the tractor unit.
8. Adjust the spacing of the tractor units by sliding them along the bar, using
the clamp lever at the back of each unit to release and lock them in
position. When the clamp lever is up, the unit is released, and when it is
down, the unit is locked.
-
-.
-
V
-
28
