Multi-Font User's Manual

I
Loadingthepaper fromtherear of theprinter
(Pushfeed)
Youcan loadthe fanfoldpaperwiththeinternalpushtractorunit.
1.
2.
3.
4.
5.
Placeastackoffanfoldpaperbehindandatleastonepage-lengthbelow
theprinter.
Turn-theprinter’spowerOFF.
Pushthereleaseleverbackward.Thishastheeffectofreleasingthepaper
fromtheplatenroller,andengagingthetractorfeed.
Removethepaperguideandput it asideforthemoment.
Openthetmnsparentpartofthefrontcover,andtherearcoverusingthe
two gripson eitherside,as in Figure
4-3.
I

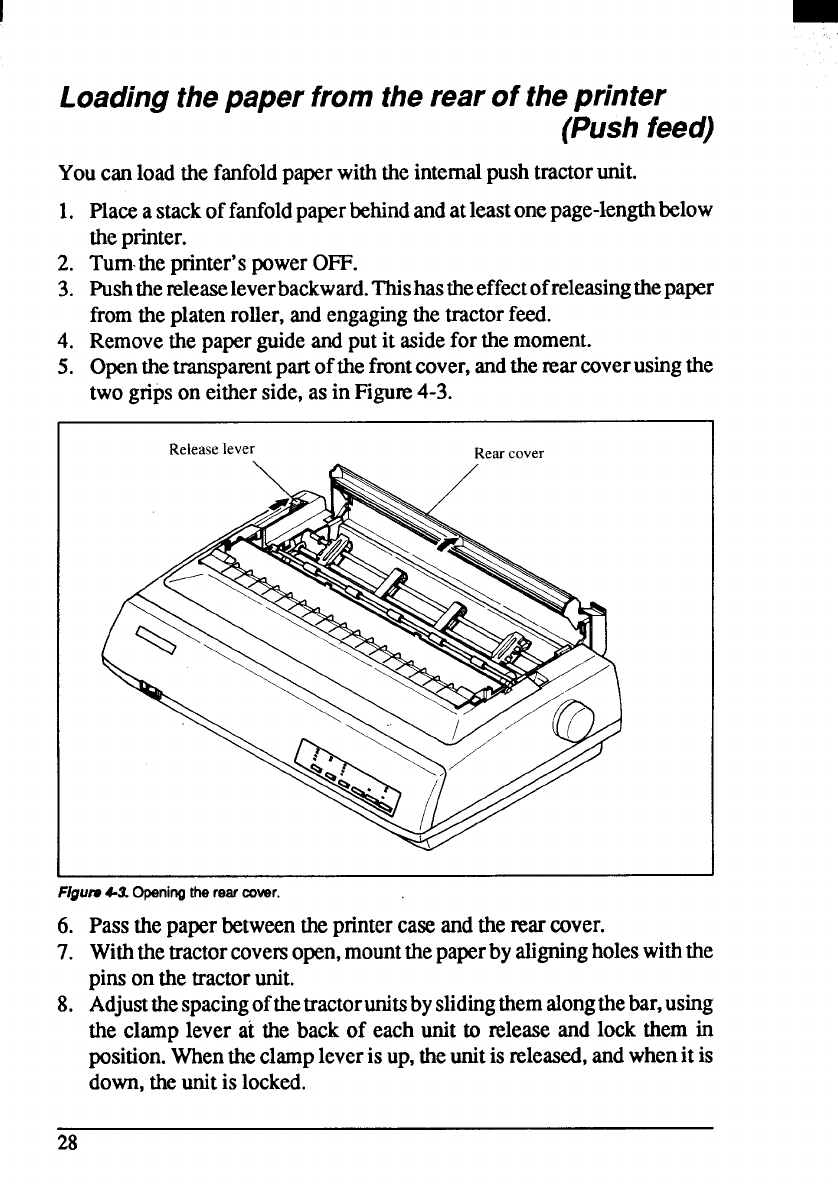

F/gum4-~ Openingthe rear cover.
6.
Passthepaperbetweentheprintercaseandthemrcover.
7. Withthetractorcoversopen,mountthepaperby aligningholeswiththe
pinson the tractorunit.
8. Adjustthespacingofthetractorunitsbyslidingthemalongthebar,using
the clamp lever at the back of each unit to release and lock them in
position.Whentheclampleveris up,theunitisreleased,andwhenit is
down,theunitis locked.
28
