CH Display
Auto O: After you select a computer, the port number and name of the computer
will appear on the screen for 3 seconds then disappear automatically. Always On:
The port number and name of a selected computer and/or OSD status are displayed
on the screen all the time. The non-volatile memory stores the CH Display setting.
Position
The position of the selected computer name and/or OSD status displayed on screen
during operation. The actual display position shifts due to dierent VGA resolution,
the higher the resolution the higher the display position. The nonvolatile memory
stores the Position setting. UL as Upper Left, UR as Upper Right, LL as Lower Left,
LR as Lower Right. MI as Middle.
Country Code for Sun
Sun keyboards of dierent languages have dierent layouts. The KVM switch is able
to emulate a Sun keyboard for a specic language type or country such as Arabic,
Belgian, US, Yugoslavia, etc. Select the proper country code that matches all of your
Sun computers.
NOTE: The country code must be set prior to powering up the Sun computer. Not
performing this step prior to power-up could cause the system to malfunction.
Max. Resolution: It supports widescreen, and you can adjust the monitor
resolution under this sub-menu. The following selections are available: 1024x768,
1280x1024, 1600x1200, 1920x1440 Widescreen resolutions: 1920x1200, 1920x1080,
1440x900, 1360x768 and “DDC2B Disable”.

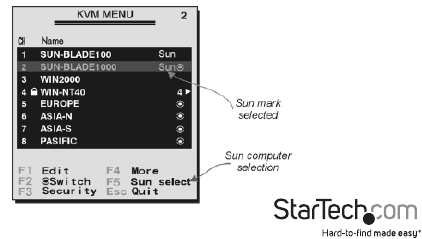

Function Key <F5>: To switch the Sun mark of a port on or o indicating the
computer is a Sun server. Sun servers have more keys on the keyboard than a PC.
When a Sun-marked port is selected, the KVM Switch starts to translate the keys
from a PC keyboard to a Sun keyboard. See the section entitled Sun Keyboard
Mapping for further detail.
