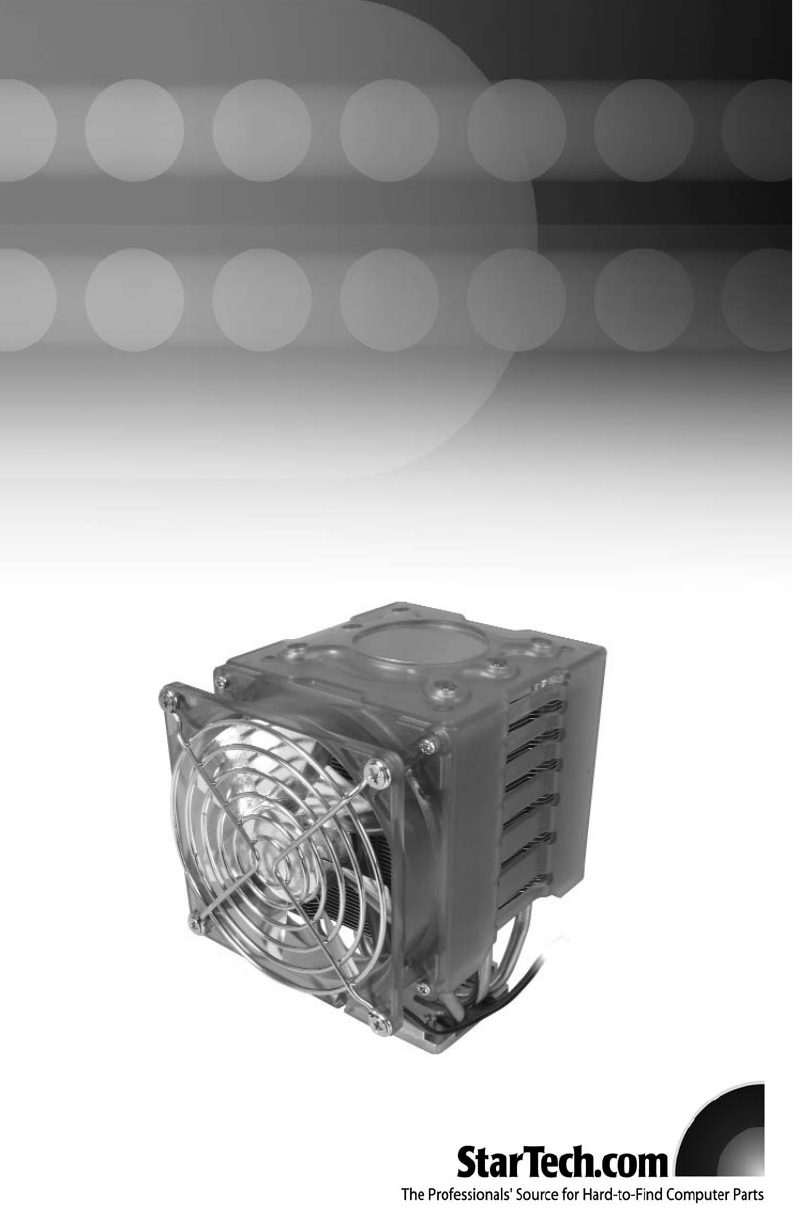

Universal AMD/Intel CPU Cooler Universal Intel/AMD Heatpipe CPU Cooler FAN939775HP Instruction Manual Actual product may vary from photo
FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Instruction Manual Table of Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Contents . . .
Instruction Manual Introduction Thank you for purchasing a Universal Intel P4/AMD Athlon Heatsink with fan.Designed to fit a wide range of Intel and AMD processors, this extra-large heat sink and fan provides maximum heat dissipation for your hard-working CPU. The fan is capable of moving up to 65 CFM and includes an External Speed Controller that allows you to customize the fan speed, and in turn the air flow and noise level of the fan.
Instruction Manual Parts List Heat Pipe Main Unit Frame with Fan External Speed Controller Screw kit Base/Retention Clip for Intel P4 Socket 478 Base/Retention Clip for Intel LGA775 (Socket T) Retention Clip for AMD K7 & Intel P3 Retention Clip for AMD Opteron & K8 CAUTION: Computers contain sensitive electronic components that are easily damaged by static electricity and excessive shock.
Instruction Manual Installation Note: Although FAN939775HP supports a variety of different CPUs, the illustrations below depict installation on an Intel chipset. Installation steps are identical for both AMD and Intel chipsets, with the exception of the parts used. When installing FAN939775 on a Socket AM2 system, please ensure that the motherboard already has the AM2 retention module (mounting bracket), and use the K8 clip. 1.
Instruction Manual Specifications Heatsink Dimension DC Fan Size Base Material Bearing Type Speed Noise Level Max Air flow Rated Voltage Weight Regulatory Certifications 93 x 93 x 98.5 mm 92 x 92 x 25 mm Heat Pipe One Ball 1500 ~ 2800 RPM 18 ~ 28 dBA 30 ~ 60 CFM 12 V.DC 950 g FCC, CE Technical Support StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.
