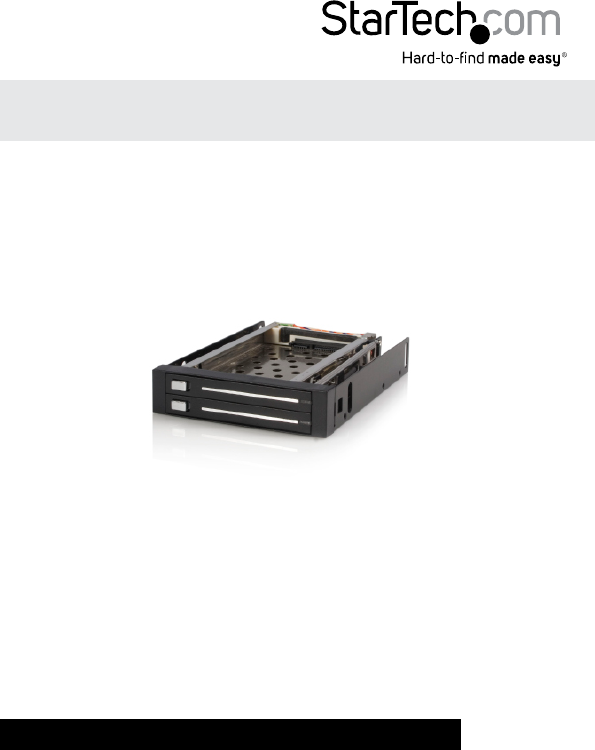

2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane HSB220SAT25B *actual product may vary from photos DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.
FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Table of Contents Introduction.............................................................................................1 Features......................................................................................................................................................... 1 Packaging Contents.................................................................................................................................. 1 Installation and Usage.................................................
Introduction Thank you for purchasing a StarTech.com 3.5” Dual SATA Hard Drive Hot-Swap Bay the ideal solution for simplifying drive removals and insertions as part of the system building process. Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the HSB220SAT25B Dual SATA Hard Drive Hot-Swap Bay provides everything you need to expedite important projects.
Installation and Usage Hardware Installation To prepare HSB220SAT25B for installation within the computer: (4-pin) LED Connector (15-pin) SATA Power Connector (7-pin) SATA Data Connector 1. Connect the 15-pin SATA Power Connector and 4-pin LED connector (provided by an included LP4-to-4-pin LED/15-pin SATA Power Y-cable) to the appropriate ports on the rear panel of HSB220SAT25B, as shown above.
3. Ensuring the computer is powered down, remove the slot cover from a 3.5” floppy drive bay on the host computer. 4. Gently, slide HSB220SAT25B into the now vacant 3.5” floppy drive bay, threading the connected cables through the opening, until the front panel of HSB220SAT25B is flush with the computer case front panel. 5.
Please note: It is essential that the drive be positioned properly within the drive bay. Attempting to install a drive with its interface improperly aligned with the drive bay interface could cause serious damage to both the drive and the drive bay. 2. Position a 2.5” SATA hard drive so that the SATA interface is directed into one of the drive bays, label side up. Gently press the drive inward until the front panel door begins to close, then lock the drive in place by closing the door until it clicks shut.
Please note: It is strongly recommended that the computer be powered down when removing drives from HSB220SAT25B, as removing drives while in use can damage the drive and any data contained within. Drive Removal To remove a drive from HSB220SAT25B: 1. Open the front panel door by gently sliding the locking button from left to right. 2. Gently pull the door open to eject the drive partially, then pull the drive out from the enclosure: 3.
Specifications Bus Type SATA I, SATA II, SATA II Supported Drive Form Factor 9.5 mm, 2.5” SATA/DRIVES 2 x 15-pin SATA Power Female (external) 2 x 15-pin SATA Power Female (internal) Connector Types 2 x SATA 7-pin Data Female (external) 2 x SATA 7-pin Data Female (external) 2 x 4-pin LED Weight Dimensions (W x H x L) Instruction Manual 270 g (9.53 oz ) 101 mm (3.98” ) x 25 mm (0.98”) x 123 mm (4.
Technical Support StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads. For the latest drivers/software, please visit www.startech.com/downloads Warranty Information This product is backed by a two year warranty. In addition, StarTech.
