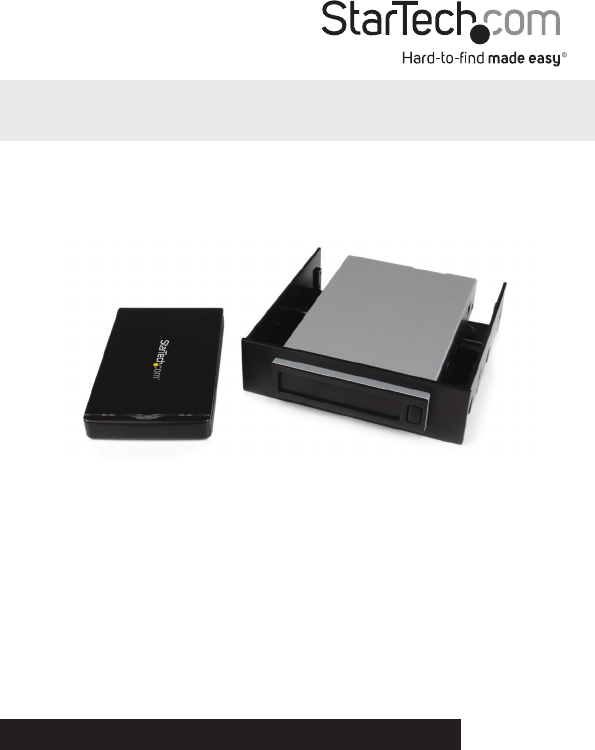

Introduction The SAT2510U3REM/SAT2510U3S Removable 2.5” SATA HDD Backup System/Mobile Rack for 3.5”/5.25” Front Bay turns a 2.5” SATA HDD/SSD drive into a removable hard drive that can also be used externally as a normal USB 3.0 enclosure. The 2.5” SATA removable hard drive bay can be mounted into any computer’s 3.5” or 5.25” front bay to provide a hot-swap capable mobile rack. Drives can be easily installed and removed from the computer system without having to open the computer case every time.
Installation Drive Bay Drive Enclosure Drive Bay Bracket WARNING: Hard drives require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. WARNING: Hard drives, like all computer equipment can also be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching any components. StarTech.
2. Attach the 2.5” SATA hard drive to the circuit board, and fasten it to the board from the bottom using the provided mounting screws. 3. Once the hard drive has been secured to the circuit board, carefully slide the circuit board (with hard drive attached) into the drive enclosure housing. 4. Replace the rear panel cover and fasten the rear panel to the enclosure, using the screws that were removed in step #1. Installing the Drive Bay into the Computer 1. If mounting the Drive Bay into a 3.
4. Remove the side cover(s) from the computer case and the cover to the front bay you wish to mount the Drive Bay into (see documentation for your computer system for details). 5. Insert the Drive Bay into the front bay slot as appropriate (see documentation for your computer system for details). Please ensure proper alignment of mounting holes in the Drive Bay/Bracket with the mounting holes for the computer chassis. 6.
Connecting the Removable Drive Enclosure – Internal 1. Power down the host computer. 2. Insert the Drive Enclosure into the Drive Bay. The Eject button will pop out, indicating that the Drive Enclosure is fully inserted. 3. Power up to the computer. Once the operating system is fully loaded it should detect the presence of the SATA drive. 4.
Locate the Disk that says it is “Unallocated” (check hard drive capacity to confirm it’s the correct hard drive) and then right-click in the section that says “Unallocated” and select “New Partition”. The New Partition Wizard will appear. Follow the instructions in the wizard to complete setting up the drive. Once complete, the Disk should show up as “Healthy” with a drive letter assigned (i.e. E:). This drive letter should now appear within My Computer.
Specifications Number of Hard Drives Supported 1 x 2.5” Host Interface SATA revision 3.x SuperSpeed USB 3.0 Chipset ID ASMedia ASM1053 ASMedia ASM1456 Drive Bay: 1 x 7-pin SATA port 1 x 4-pin SP4 small Floppy male External Connectors Enclosure: 1 x USB 3.0 micro-B female 1 x 7+15 pin SATA data+power port LEDs 1 x Power/Activity Compatible Hard Drives 2.5” SATA drives, up to 9.5mm in height Maximum Data Bandwidth SATA III: 6 Gbps USB 3.
