ManualsBrandsStarTech ManualsComputers & AccessoriesStarTech.com 2 Port Flush Mount ExpressCard 54mm SuperSpeed USB 3.0 Card Adapter with UASP - Dual Port Laptop ExpressCard USB 3 Controller

Manual Revision: 02/24/2011

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

ECUSB3S254F

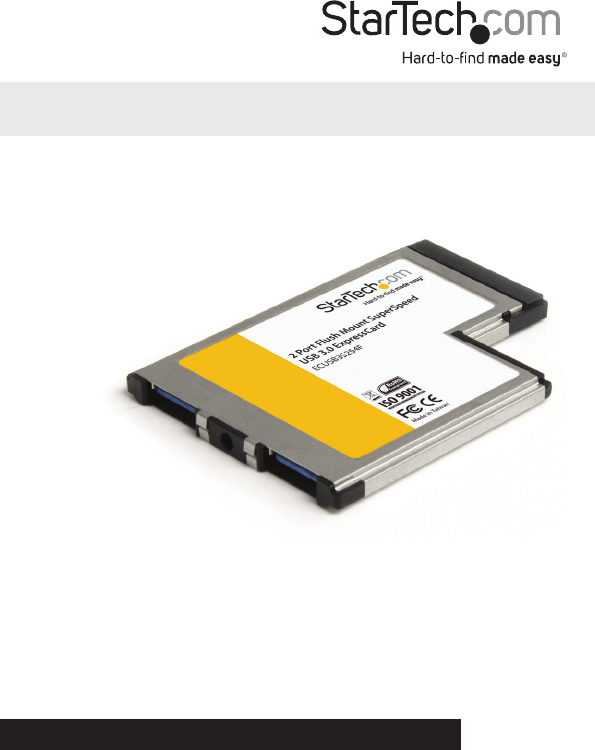

2-Port Flush Mount ExpressCard/54 USB 3.0 Card

*actual product may vary from photo

Summary of content (8 pages)

PAGE 1
2-Port Flush Mount ExpressCard/54 USB 3.0 Card ECUSB3S254F *actual product may vary from photo DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.
PAGE 2
FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
PAGE 3
Table of Contents Introduction.............................................................................................1 Packaging Contents.................................................................................................................................. 1 System Requirements............................................................................................................................... 1 Installation..........................................................................
PAGE 4
Introduction The ECUSB3S254F 2-Port Flush Mount USB 3.0 ExpressCard Adapter uses a unique form factor design that allows it to sit fully in a standard 54mm laptop ExpressCard slot without sticking out; the ports sit flush with the sides of the laptop, creating a seamless add-on that can be left installed, even while on the move, without fear that it will get snagged or hit against which could cause damage to the card or slot. The SuperSpeed USB 3.
PAGE 5
Installation Hardware Installation The ExpressCard adapter will simply slide into the ExpressCard slot on any compatible system. Push the card all the way in, until it ‘clicks’ and locks into place. To eject the card, simply push the card further into the slot until it clicks, and then release and it will then be automatically ejected from the slot.
PAGE 6
Specifications USB 3.0 base specification 1.0 Interface Intel xHCI specification 0.95 Host Interface ExpressCard 2.0 Form Factor ExpressCard/54 (54mm) Chipset ID NEC uPD720200 2 x USB 3.0 type A female External Connectors 1 x DC Power LEDs N/A Power Adapter (Optional) 5VDC, center positive, type A plug Maximum Data Transfer Rate USB 3.0: 5 Gbps Operating Temperature 0°C ~ 85°C (32°F ~ 185°F) Storage Temperature -65°C ~ 125°C (-85°F ~ 257°F) Dimensions 74.0mm x 54.0mm x 5.
PAGE 7
Technical Support StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads. Warranty Information This product is backed by a one year warranty. In addition, StarTech.
PAGE 8
StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server Management solutions, serving a worldwide market through our locations in the United States, Canada, the United Kingdom and Taiwan. Visit www.startech.
