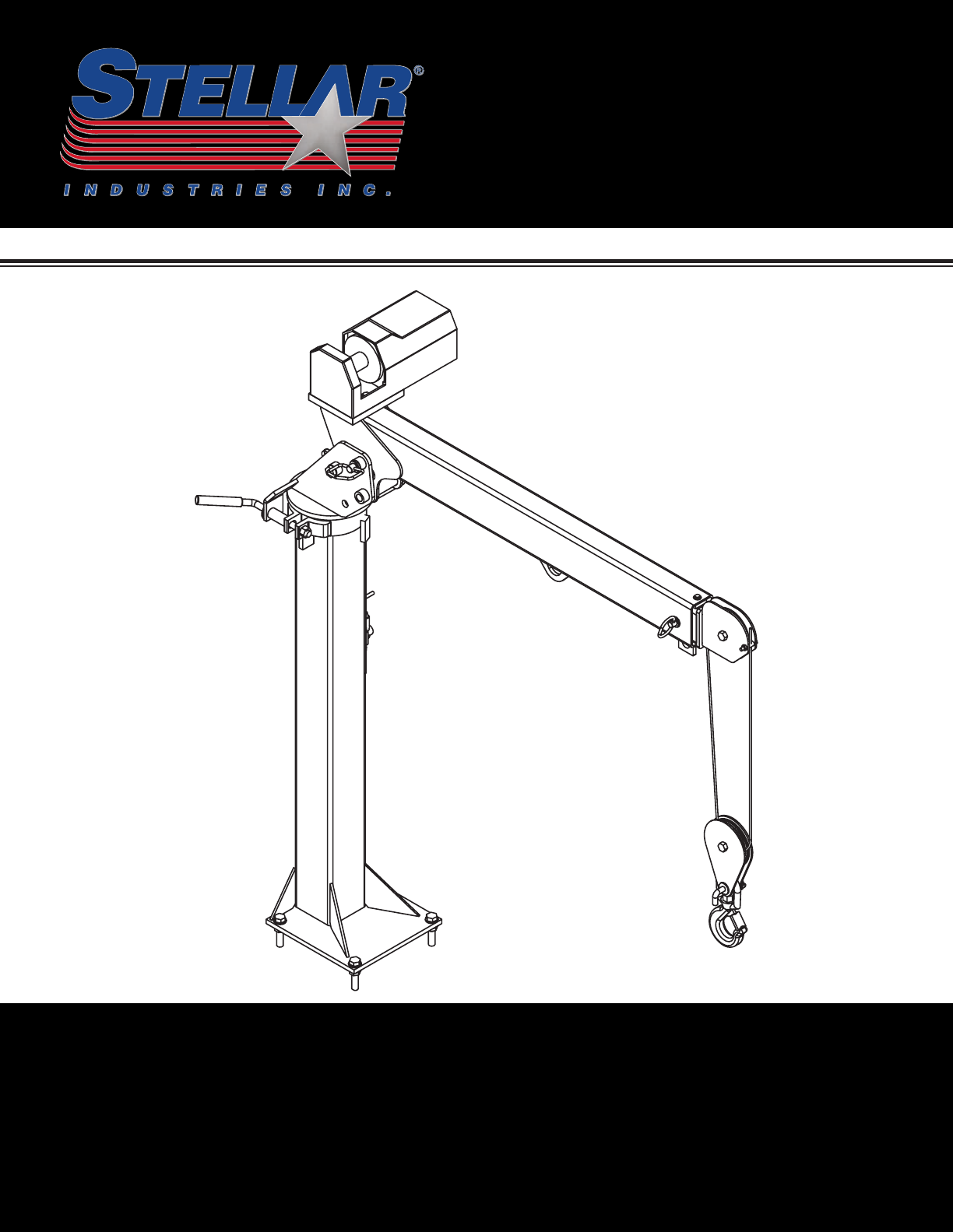

Model eC2000 TelesCopiC Crane owners’ Manual installation • assembly drawings • parts Stellar Industries, Inc. Subject to Change without Notification. © 2012 Stellar Industries, Inc. 190 State Street PO Box 169 Garner, IA 50438 800-321-3741 Fax: 641-923-2811 www.stellarindustries.
EC2000 Manual Revisions Date of Revision Section Revised Description of Revision
Table of Contents Table of Contents Chapter 1 - Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .1 Capacity Chart - Decal PN 18039 . . . . . . . . . . . . . . . . .2 Chapter 2 - Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Wiring Schematic - Power Rotation . . . . . . . . . . . . . . . .4 Wiring Schematic - Manual Rotation . . . . . . . . . . . . . . .4 Control Kit Power Rotation - PN 22930 . . . . . . . . . . . . .5 Stability Procedure . . . . . . . . . . . . .
ii EC2000 Owner’s Manual
Specifications Chapter 1 - Specifications 11’ 3.35 M 1565lbs 710kg 10’ 3.05 M 1985lbs 900kg 9’ 2.74 M 2000lbs 8’ 905kg 2.44 M 930lbs 420kg 1190lbs 7’ 2.13 M 540kg 1580lbs 6’ 715kg 1430lbs 1.83 M 1075lbs 650kg 860lbs 490kg 390kg Reach in Feet/Meters Capacity in Pounds/Kilograms Weight of load handling devices are part of the load lifted and must be deducted from the capacity. Maximum 1 - part line capacity is 1100lbs (495kg). For greater loads, use 2 - part line. 0’ 0’ 1’ .
2 EC2000 Owner’s Manual Capacity Chart - Decal PN 18039 Reach in Feet/Meters Capacity in Pounds/Kilograms 11’ 3.35 M 1565lbs 710kg 10’ 3.05 M 1985lbs 900kg 9’ 2.74 M 2000lbs 8’ 905kg 2.44 M 930lbs 420kg 1190lbs 7’ 2.13 M 540kg 1580lbs 6’ 715kg 1430lbs 1075lbs 650kg 0’ 1.83 M 490kg 860lbs 390kg 0’ 1’ .305 M 2’ .610 M 3’ .914 M 4’ 1.22 M Weight of load handling devices are part of the load lifted and must be deducted from the capacity. 5’ 1.52 M 6’ 1.83 M 7’ 2.
Installation 3 Chapter 2 - Installation Notice: Read this Page Before Installation of the Crane Installation Instructions: Prepare Platform For Crane Installation (Not Supplied) 1. When designing the platform, maintain a proper clearance for the crane mounting and operation. 2. The platform must be strong enough to support the crane and rated load. 3. Platform/crane support minimum requirements: Top plate should be made from 0.50” grade 50 plate. The structure should be supported by 4 x 4 x 3/16 tubing.
4 EC2000 Owner’s Manual Wiring Schematic - Power Rotation Ignit ion Ignition Control Box On/Off Swi tch Switch (PN C4815) Relay PN C6072 E-Brake E-Brake Ground Ground Battery + Battery Solid State Solonoid PN 39687 Bat tery-Battery Gr ound St ud Ground Stud Ec2k t EC2KMas Mast Wiring Schematic - Manual Rotation Igni tio n Ignition On/Off Switch Swi tch (PN C4815) Relay PN C6072 EBrake E-Brake Ground Gr ound WWinch inch M otor Motor ++ Battery + Batte ry+ Solid State Solonoid PN 39687 WWinch i
Installation Control Kit Power Rotation - PN 22930 UP DOW N W INCH Rotation 2 Breaker BREAKER AUX Aux BAT Bat Power POW ER 12V 12V ROTATI ON Rotation Motor M OTOR 3, 4,5 3,4,5 POW ER Power ROTATI ON Rotation FRONT Front View VIEW GD GD LT LT TM TM SA SA RT RT BBlLa c Kk CUT INCHcable CABLETO CutWwinch to 6.5’ of wireW I 6.5' ,Wwith ITH6”6"OF RE inside of box.
6 EC2000 Owner’s Manual Stability Procedure Definition of Stability for the Stellar Telescopic Crane Products: A truck is stable until the load cannot be lifted off the ground with the winch, without tipping over the truck. Every Stellar crane installed must be tested for stability to determine the actual load capacity of the final truck package. The actual test data must be recorded and supplied with the truck at the time of in-service and should be kept with the truck at all times.
Installation Stability Capacity Chart STABILITY CAPACITY CHART 7
8 EC2000 Owner’s Manual Decal Kit - PN 18776 0 EC2 000 00 EC2 18040 18040 PN 18776 Item 01 02 03 04 05 06 07 08 Part No.
Assembly Drawings Chapter 3 - Assembly Drawings Standard Crane Assembly - PN 17631 23 25 22 43 32 24 17 2 3 18 10 30 21 12 22 20 11 9 8 6 15 USE COMPOUND #40365 ON BACK SIDE 36 7 5 31 40 27 28 4 16 26 42 1 39 38 13 11 41 37 15 16 29 19 14 34 35 33 Mounting Hardware Ship Loose 15 PN 17631 ITEM PART 1 39693 2 17600PC 3 39691 4 39690 5 18069 6 18068 7 18067 8 18475PC 9 18483PC 10 18485 11 17222 12 18711PC 13 17965PC 14 18036PC 15 2826 16 0399 17 C0538 18 18712 19 18714PC 20 18
10 EC2000 Owner’s Manual 50’ Wire Rope Crane Assembly - PN 33939 23 22 25 24 33 32 21 17 2 3 22 21 11 20 15 18 30 37 38 10 12 28 9 8 4 31 6 7 16 39 16 19 13 5 USE COMPOUND #40365 ON BACK SIDE 27 26 1 40 14 29 41 42 13 15 11 34 43 35 36 Mounting Hardware Ship Loose 15 PN 33939 ITEM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 PART 39693 17600PC 39691 39690 18069 180 68 18067 18475PC 18483PC 18485 17222 18711PC 17965PC 18036PC 2826 039 9 C0538 18712 18714PC 1
Assembly Drawings 11 Short Mast Crane Assembly - PN 19146 22 23 25 39 21 24 38 17 2 3 18 30 21 22 9 10 20 11 12 8 15 6 33 7 34 5 35 27 31 4 28 36 26 15 1 16 32 15 40 41 29 16 MOUNTING HARDWARE SHIP LOOSE 43 42 USE COMPOUND #40365 ON BACK SIDE 19 14 13 37 PN 19146 ITEM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 PART 39703 17600PC 39691 39690 18069 18068 18067 18475PC 18483PC 18485 17222 18711PC 17965PC 18036PC 2826 0399 2828 18712 18714PC 18715PC 0340 0
12 EC2000 Owner’s Manual Power Rotation Crane Assembly - PN 22601 16 18 15 17 24 23 ? 10 14 21 15 3 2 5 13 8 14 11 28 18 29 17 4 22 35 9 30 19 8 34 14 12 33 14 33 20 9 32 6 7 25 36 17 38 31 USE COMPOUND #40365 ON BACK SIDE 1 39 37 40 26 Mounting Hardware Ship Loose 27 8 PN 22601 ITEM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 PART 39688 22608PC 3 9691 39690 17222 17965PC 18036PC 2826 0399 C0538 18712 18714PC 18715PC 0340 0479 18774 C6353 13576 18773 57
Assembly Drawings 13 Power Rotation Short Mast Crane Assembly - PN 24906 21 18 24 11 17 18 15 23 14 17 3 2 10 14 22 13 35 16 15 5 34 36 9 30 29 28 19 14 4 8 26 33 17 6 9 27 31 8 12 37 40 5 7 32 14 33 8 20 1 Mounting Hardware Ship Loose 25 39 38 USE COMPOUND #40365 ON BACK SIDE PN 24906 ITEM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PART 39696PC 22608PC 39691PC 39 69 0 P C 17222 17965PC 18036PC 2826 0399 C0538 18712 18714PC 18 715 PC 0340 0479 18774 C6353 1
14 EC2000 Owner’s Manual LH Mount Crane Assembly - PN 56658 16 18 15 17 24 23 14 10 14 5 13 3 2 21 15 8 11 28 18 29 17 4 22 35 9 30 19 8 34 14 12 33 14 33 20 9 32 6 7 25 36 17 38 31 USE COMPOUND #40365 ON BACK SIDE 1 39 37 40 26 27 Mounting Hardware Ship Loose 8 PN 56658 ITEM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PART 56659PC 22608PC 39691PC 39 690 P C 17222 17965PC 18036PC 2826 0399 C0538 18712 18714PC 18715 PC 0340 0479 18774 C6353 13576 18773 5753
Assembly Drawings Control Kit Assembly ITEM 1 2 3 4 5 6 7 8 PART 22925 22927 C6072 14994 22931 23892 D0896 C4956 DESCRIPTION ENCLOSURE 6.00X4.00 MACHINED PLATE ELECTRICAL MTG EC2K RELAY BOSCH 20-30 AMP CONNECTOR SOCKET TRAILER 6 PIN CIRCUIT BREAKER 12V 20 AMP AUTO RES JUNCTION BLOCK 5/16" 2 POST CAP SCR #10-24X0.75 FHSH SS NUT #10-24 HH NYLOC SS QTY. ITEM 1 9 1 10 2 11 1 12 1 13 1 14 2 15 2 PART D0561 0333 D0178 6684 12870 23893 23908 DESCRIPTION CAP SCR 0.25-20X0.50 BTNHD SS NUT 0.
16 EC2000 Owner’s Manual
Replacement Parts Chapter 4 - Replacement Parts ASSEMBLY COMPONENTS 22612 BEARING HOUSING - ROTATION (POWER ROTATION MODELS) 22613 GEAR BEARING - ROTATION (POWER ROTATION MODELS) 18069 BEARING - RADIAL BALL 6.00” 18068 RACE - INNER 2.50” 18067 BEARING DRAWN CUP NEEDLE 2.75” 17222 SHEAVE 5.00” DIA. 18773 WIRE ROPE 40 FT (STANDARD MODELS) 33940 WIRE ROPE 50 FT 18483PC HANDLE WELDMENT EC2K 18485 HANDLE GRIP EC2K 18715PC STOP - EXTENSION WELDMENT 18777 HITCH PIN 0.63”X 4.00” W / LANYARD 18778 HITCH PIN 0.
18 EC2000 Owner’s Manual Limited Warranty Statement Stellar Industries, Inc. (Stellar) warrants products designed and manufactured by Stellar to be free from defects in material and workmanship under proper use and maintenance. Products must be installed and operated in accordance with Stellar’s written instructions and capacities.
