Specifications 
Chapter 1 - Specifications
Crane Rating: 6500 ft-lb (.899 TM)
Standard Boom Length: 4’ (1.219 m) from CL of Crane
Boom Extension: 1st Position: Manual 18” (45.7 cm)
2nd Position: Manual 18” (45.7 cm)
Maximum Horizontal Reach: 7’ (2.13 m) from CL of Crane
Maximum Vertical Lift (from crane base): 10’9” (3.28 m)
Boom Elevation: 0 to +21 to +56 degrees
Winch Specification
Rope Diameter: 3/16” (.476 cm)
Line Pull Speed: 20 ft/min (6.10 m)
Max. Single Part Line: 1100 lbs (495 kg)
Max. Double Part Line: 2000 lbs (905 kg)
Manual Rotation: 340˚ Manual
Power Rotation: 314˚ Power
Lifting Capacities: 1580 lbs @ 4’ (715 kg @ 1.219 m)
1190 lbs @ 5’6” (540 kg @ 1.676 m)
930 lbs @ 7’ (420 kg @ 2.13 m)
Stowed Height: 60” (152.4 cm)
Crane Only: 30” (76.2 cm) - Short Mast
Mounting Space Required: 12” x 12” (30.5 cm x 30.5 cm
Approximate Crane Weight: 275 lbs (124.7 kg)
230 lbs (104.3 kg) - Short Mast
300 lbs (136.1 kg) - Power Rotation
Weight of load handling devices are
part of the load lifted and must be
deducted from the capacity.
Maximum 1 - part line capacity is
1100lbs (495kg). For greater loads,
use 2 - part line.

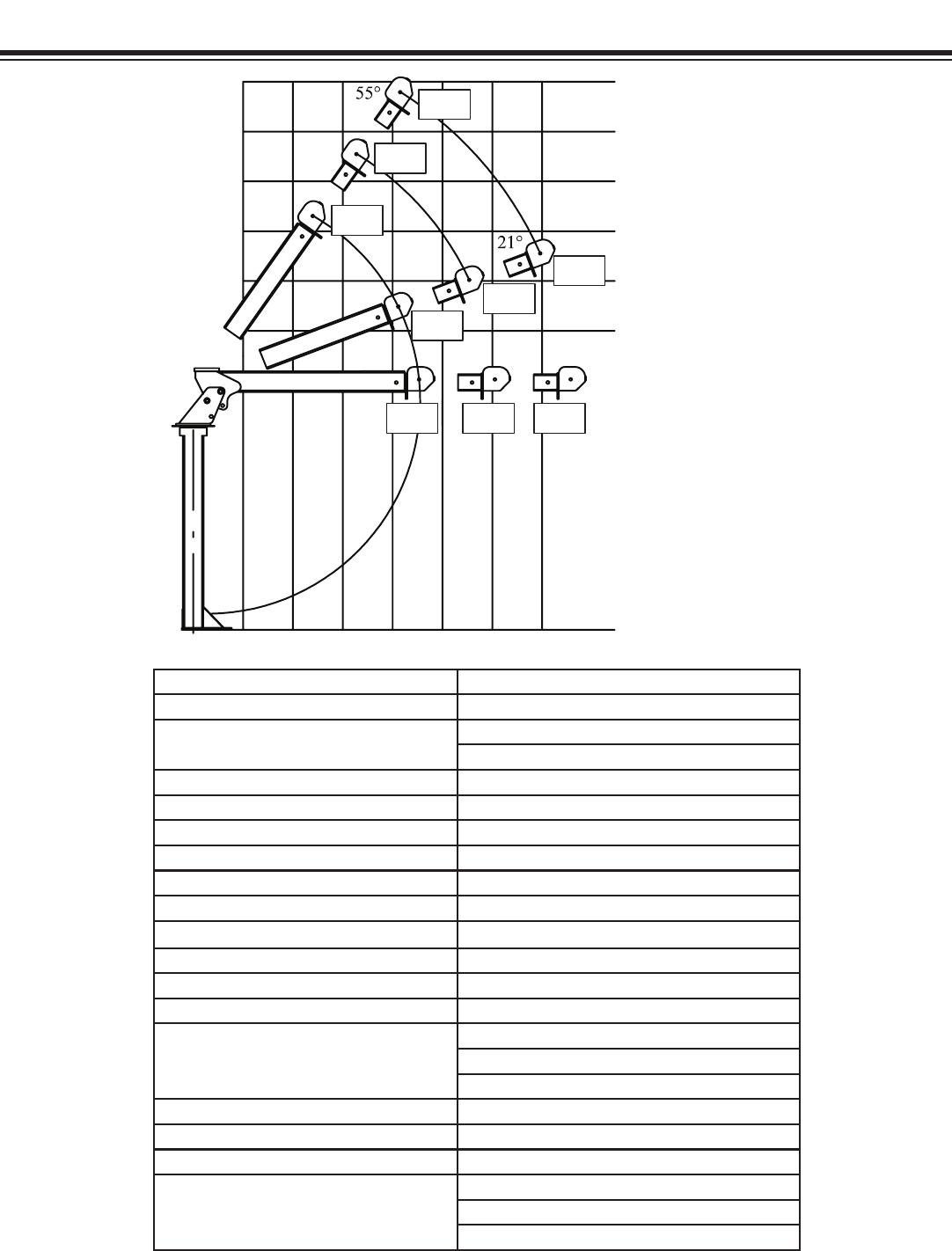

Reach in Feet/Meters
Capacity in Pounds/Kilograms
1565
lbs
710
kg
1985
lbs
900
kg
2000
lbs
905
kg
1190lbs
540kg
1580lbs
715
kg
930lbs
420kg
1430lbs
650kg
1075lbs
490kg
860lbs
390kg
6’
1.83
M
0’
0’
7’
2.13 M
8’
2.44
M
9’
2.74 M
10’
3.05
M
11’
3.35
M
1’
.305 M
2’
.610 M
3’
.914 M
4’
1.22 M
5’
1.52 M
6’
1.83 M
7’
2.13 M
