N If the engine is down on power,
difficult to start or runs poorly at idle
speed, first check the spark plug.
N Fit a new spark plug after about 100
operating hours – or sooner if the
electrodes are badly eroded. Install
only suppressed spark plugs of the
type approved by STIHL – see
"Specifications".
Removing the Spark Plug

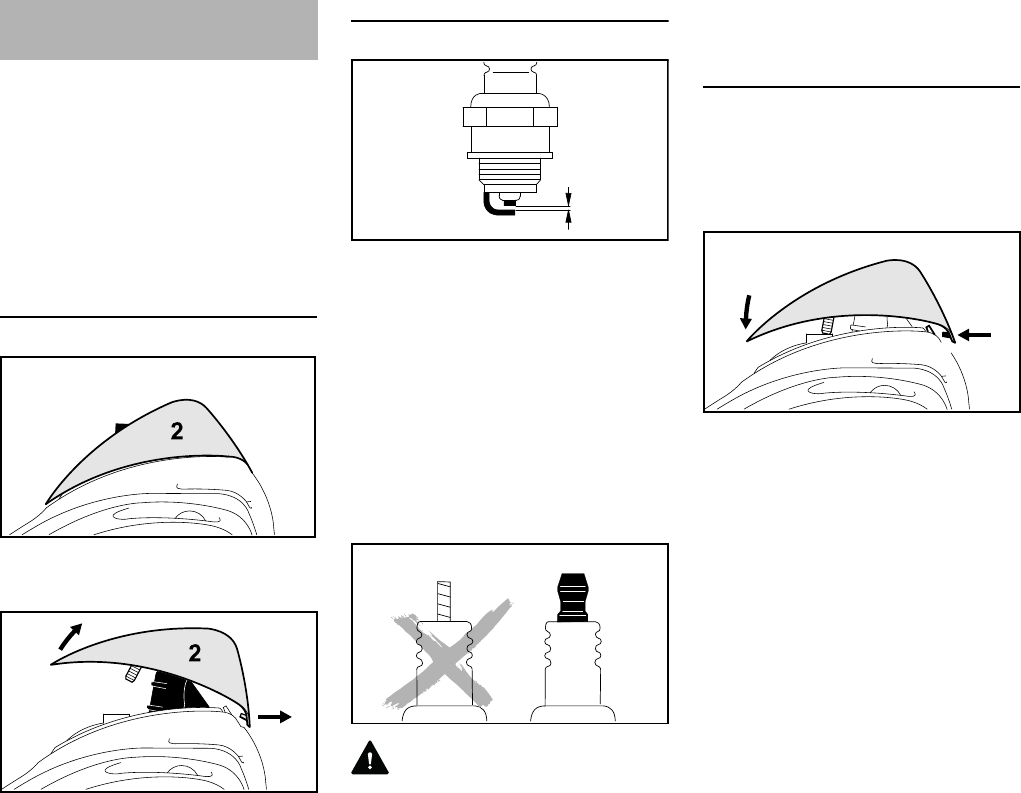

N Rotate the screw (1) in the cap (2)
until the screw head projects from it.
N Lift the front of the cap (2) and push
it to the rear to disengage.
N Put the cap to one side.
N Remove the spark plug boot (3).
N Unscrew the spark plug.
Checking the Spark Plug
N Clean dirty spark plug.
N Check electrode gap (A) and
readjust if necessary – see
"Specifications".
N Rectify the problems which have
caused fouling of the spark plug.
Possible causes are:
– Too much oil in fuel mix.
– Dirty air filter.
– Unfavorable running conditions.
WARNING
Arcing may occur if the adapter nut (1) is
loose or missing. Working in an easily
combustible or explosive atmosphere
may cause a fire or an explosion. This
can result result in serious injuries or
damage to property.
N Use resistor type spark plugs with a
properly tightened adapter nut.
Installing the Spark Plug
N Screw the spark plug into the
cylinder.
N Press the spark plug boot firmly
onto the spark plug.
N Fit the cap (1) on the shroud from
the rear and push the lug (2) into the
opening (3) in the shroud at the
same time.
N Swing the cap forwards onto the
shroud, insert and tighten down the
screw (4) firmly.
