This is information on a product in full production. For further information contact your local STMicroelectronics sales

office.

September 2013 Doc ID 023979 Rev 2 1/9

EV-VNQ5E050AK

VNQ5E050AK evaluation board

Data brief

−

production data

Features

■

Simple single IC application board dedicated

for VNQ5E050AK-E

■

Provides thermal heat-sinking for ease of use

in prototyping

■

Provides electrical connectivity for easy

prototyping

Description

EV-VNQ5E050AK provides you an easy way to

connect ST’s surface mounted VIPower

drivers

into your existing prototype circuitry. This

evaluation board comes pre-assembled with

VNQ5E050AK-E high-side driver.

The VNQ5E050AK-E is a quad channel

high-side driver manufactured using ST

proprietary VIPower M0-5 technology and housed

in PowerSSO-24 package. The VNQ5E050AK-E

is designed to drive 12 V automotive grounded

loads, providing protection, diagnostics and easy

3 V and 5 V CMOS-compatible interface with any

microcontroller.

The device integrates advanced protective

functions such as load current limitation, inrush

and overload active management by power

limitation, overtemperature shut-off with auto-

restart and overvoltage active clamp. A dedicated

analog current sense pin is associated with every

output channel provides enhanced diagnostic

functions including fast detection of overload and

short-circuit to ground through power limitation

indication, overtemperature indication, short-

circuit to V

diagnosis and ON-state and

OFF-state open-load detection.

The current sensing and diagnostic feedback of

the whole device can be disabled by pulling the

CS_DIS pin high to share the external sense

resistor with similar devices.

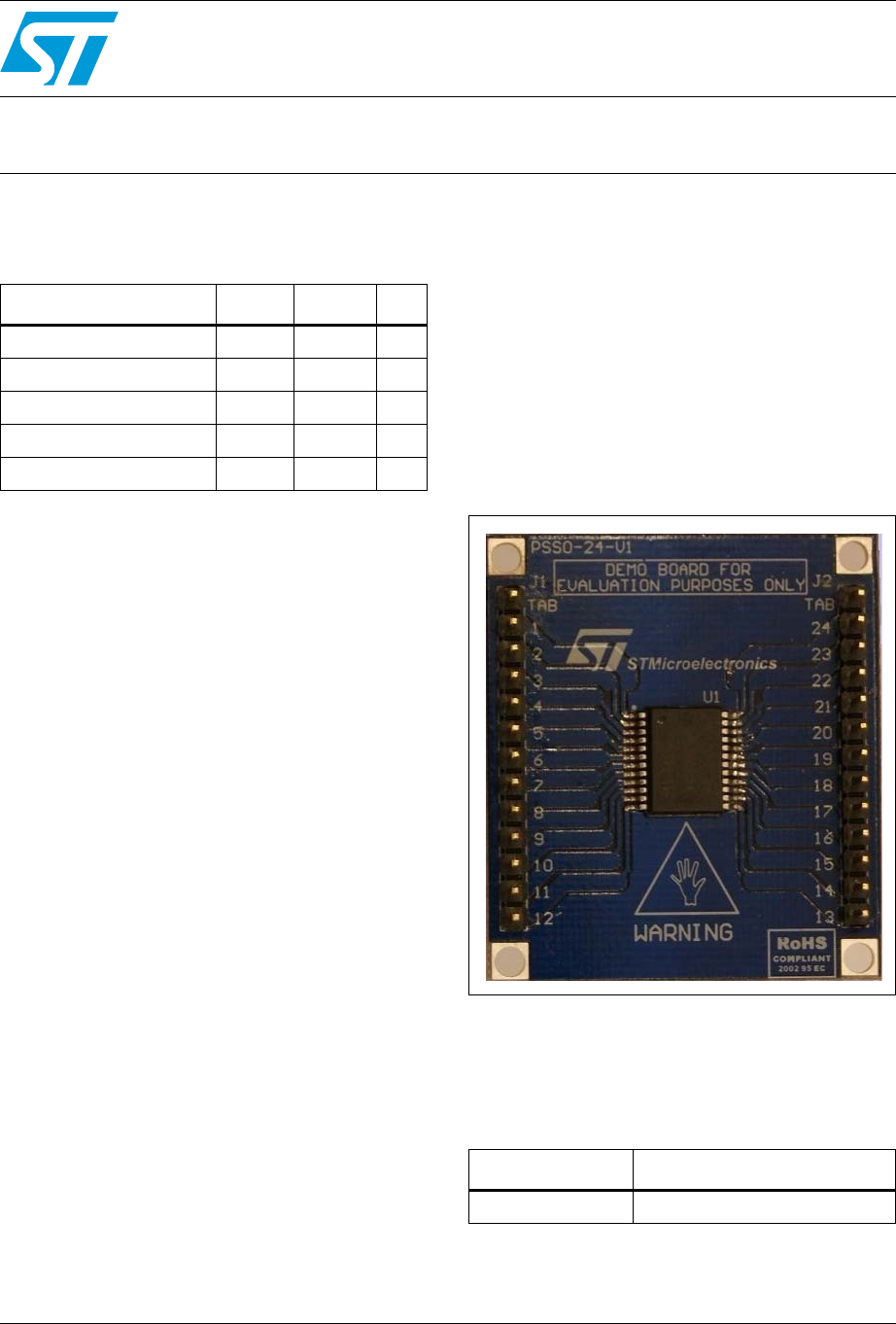

Figure 1.

VNQ5E050AK evaluation board

Parameter Symbol Value Unit

Max supply voltage V

41 V

Operating voltage range V

4.5 to 28 V

Max On-State resistance R

50 mΩ

Current limitation (typ) I

LIMH

27 A

Off-state supply current I

2 µA

(1)

1. Typical value with all loads connected.

Table 1. Device summary

Order code Reference

EV-VNQ5E050AK VNQ5E050AK evaluation board

www.st.com

Summary of content (9 pages)

PAGE 1
EV-VNQ5E050AK VNQ5E050AK evaluation board Data brief − production data Features Parameter Symbol Value Unit Max supply voltage VCC 41 V Operating voltage range VCC 4.5 to 28 V Max On-State resistance RON 50 mΩ Current limitation (typ) ILIMH 27 A Off-state supply current IS 2 µA(1) 1. Typical value with all loads connected.
PAGE 2
Design recommendations 1 EV-VNQ5E050AK Design recommendations This evaluation board provides mounting solution and some heat sinking capability for prototype development, but there are still external components that are required to make these devices work in any application. For further information on how the evaluation board has to be used you can refer to the AN4212 (see Appendix A: Reference documents). Figure 2 illustrates the necessary components for any application. Figure 2.
PAGE 3
EV-VNQ5E050AK 2 Thermal data Thermal data Table 2. VNQ5E050AK-E thermal data Symbol Rthj-amb Table 3. Parameter Thermal resistance junction-ambient (MAX) Max. value Unit 29.5 °C/W PCB specifications Parameter Value Unit 38 x 43 mm Number of Cu layer 2 — Layer Cu thickness 70 µm 1.6 +/- 10% mm Board Material FR4 — Thermal vias separation 1.2 mm 0.3 /- 0.
PAGE 4
Board connector reference 3 4/9 EV-VNQ5E050AK Board connector reference Figure 3. Board layout Table 4.
PAGE 5
EV-VNQ5E050AK Board connector reference Table 4. Board connector specification (continued) Connector Board lead number Device pin function(1) J2 16 OUTPUT3 J2 17 OUTPUT3 J2 18 OUTPUT3 J2 19 OUTPUT2 J2 20 OUTPUT2 J2 21 OUTPUT2 J2 22 OUTPUT1 J2 23 OUTPUT1 J2 24 OUTPUT1 1. For further clarification on pin functions please refer to the related datasheet (see Appendix A: Reference documents).
PAGE 6
Package information EV-VNQ5E050AK 4 Package information 4.1 ECOPACK® packages In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark.
PAGE 7
EV-VNQ5E050AK Appendix A Reference documents Reference documents 1. Quad channel high-side driver with analog current sense for automotive applications (VNQ5E050AK-E, DocID 13519) 2. VIPower M0-5 and M0-5Enhanced high-side drivers (UM1556, DocID 023520) 3. PowerSSO-24 devices evaluation bord (AN4212, DocID 023983) 4. Evaluation Product Licence Agreement on www.st.
PAGE 8
Revision history EV-VNQ5E050AK Revision history Table 5. 8/9 Document revision history Date Revision Changes 29-Nov-2012 1 Initial release. 17-Sep-2013 2 Updated disclaimer.
