November 2008 Rev 1 1/7
LFTVS10-1F3
Transil™, transient voltage suppressor
Features
■ Transient voltage suppressor
■ Electrostatic discharge protection
■ Electrical overstress protection
■ Unidirectional device
■ Low clamping factor V
CL
/V
BR
■
Fast response time
■ Very thin package: 0.605 mm
■ RoHS compliant
Complies with the following standards:
■ IEC 61000-4-2 level 4
–
± 15 kV (air discharge)
–
± 8 kV (contact discharge)
Description
The LFTVS10-1F3 is a single line diode designed
specifically for the protection of integrated circuits
in portable equipment and miniaturized electronic
devices subject to ESD and EOS transient
overvoltages.

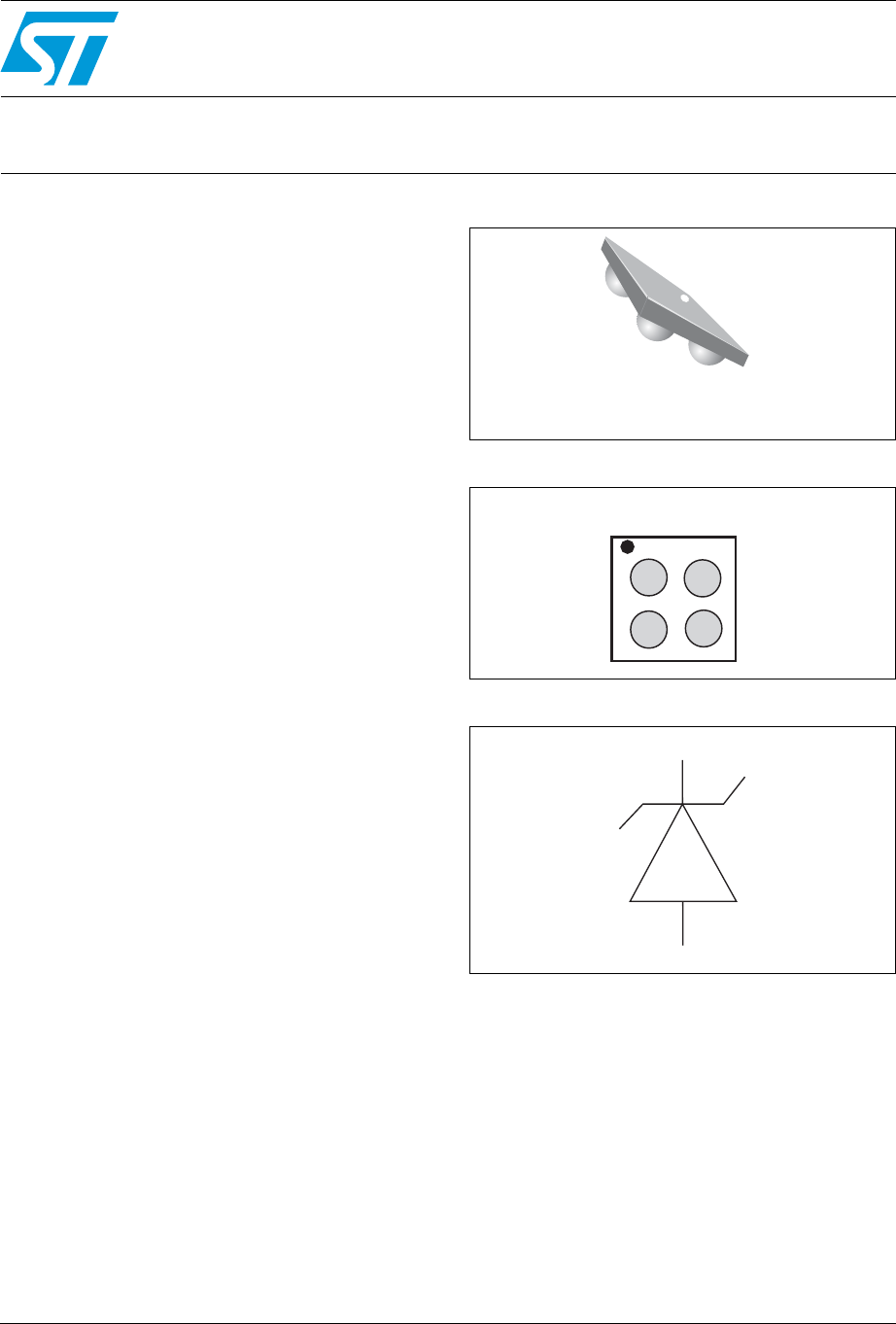

Figure 1. Pin configuration (bump side)
Figure 2. Device configuration
TM: Transil is a trademark of STMicroelectronics
Flip Chip
(4 bumps)
B
1
2
A
A1 and A2
B1 and B2
www.st.com
