11.6.1 Manage Console Settings
1. From (Home) navigate as follows:
(Settings) > (Console)
2. Touch the applicable menu tab to manage console
settings as necessary (Figure 13):
SYMBOL DEFINITION FUNCTION
Volume Adjust volume
Brightness Adjust brightness
Language Set language
System Info View system information
Console Settings
Volume Brightness Language System Info
100
%

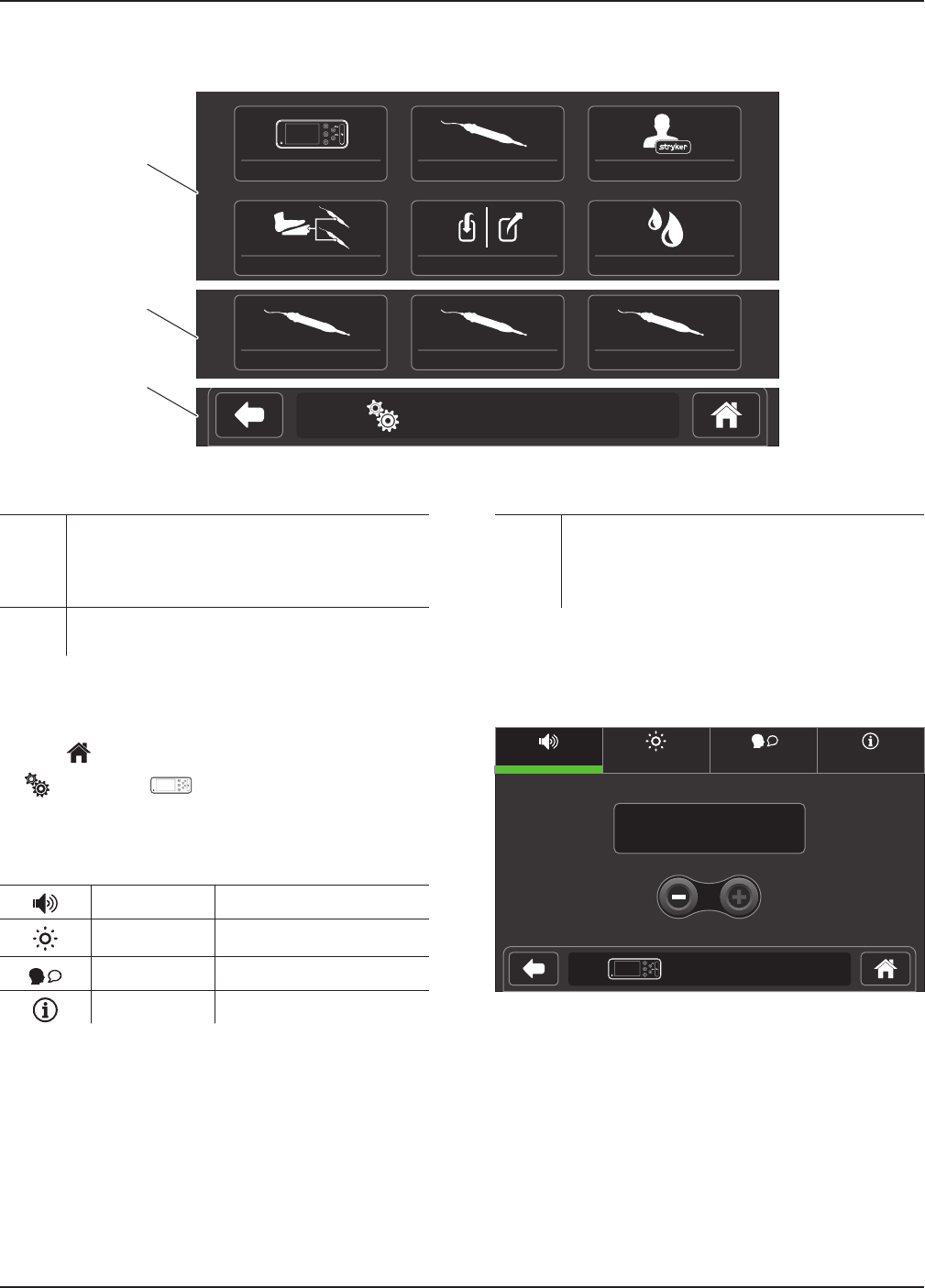

Figure 13 – Console Settings Screen
11.6 System Settings Instructions
System Settings
Console
Control Permissions
[Motor 1]
Select Motor
Import/Export
[Motor 2]
Rep Info
Irrigation
[Motor 3]
A
B
C
Figure 12 – System Settings Screen
A Navigation Bar Area – Provides navigational
buttons and displays the current screen name.
C System Settings Area – Contains the following
buttons: Console, Select Motor, Rep Info,
Control Permissions, Import/Export, and
Irrigation
B Connected Motor(s) Area – Provides access
to the connected motors.
