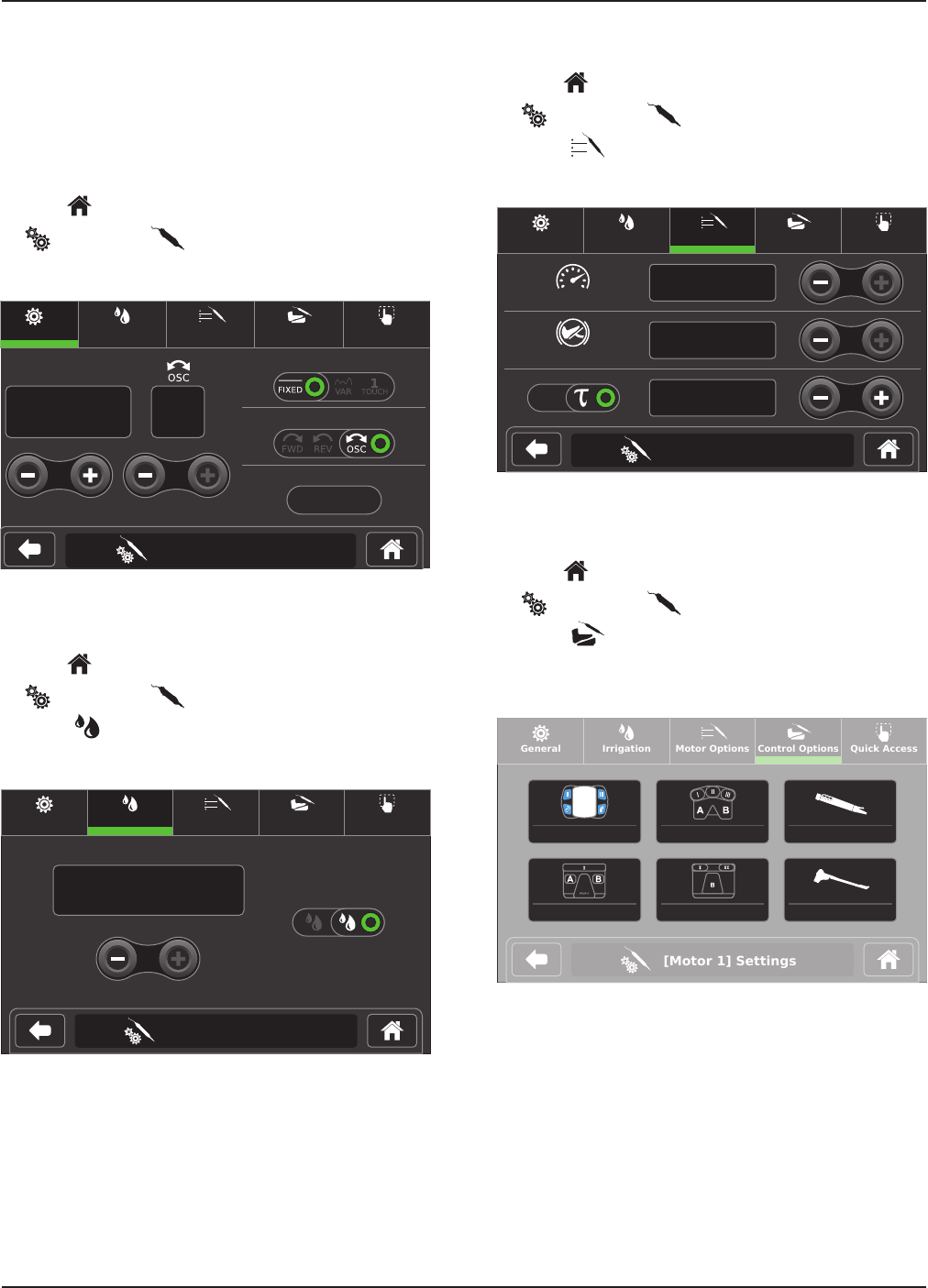

11.6.7 Manage Motor Settings
NOTE: Available motor settings may vary. The console will
only display settings that are available for the connected
device.
11.6.7.1 Adjust General (Motor Settings)
1. From (Home) navigate as follows:
(Settings) > (Motor Name)
2. Adjust settings as necessary (Figure 21).
General Irrigation Motor Options Control Options Quick Access
40000 10
RPM
Direction
Attachment
Mode
Number of Turns
[Attachment 1]
[Motor 1] Settings
Figure 21 – General (Motor Settings) Screen
11.6.7.2 Adjust Irrigation (Motor Settings)
1. From (Home) navigate as follows:
(Settings) > (Motor Name)
2. Touch (Irrigation).
3. Adjust settings as necessary (Figure 22).
General Irrigation Motor Options Control Options Quick Access
100
%
[Motor 1] Settings
Figure 22 – Irrigation Screen
11.6.7.3 Adjust Motor Options
1. From (Home) navigate as follows:
(Settings) > (Motor Name)
2. Touch (Motor Options).
3. Adjust settings as necessary (Figure 23).
General Irrigation Motor Options Control Options Quick Access
Accelerate
Brake
I.D. Touch
Torque
100
%
100
%
80
%
[Motor 1] Settings
Figure 23 – Motor Options Screen
11.6.7.4 Adjust Control Options
1. From (Home) navigate as follows:
(Settings) > (Motor Name)
2. Touch (Control Options).
3. Touch the control device button to adjust options for
that specific device (Figure 24).
General Irrigation Motor Options Control Options Quick Access
[Motor 1] Settings
NSE Footswitch
TPS Two-Pedal
TPS Footswitch
TPS Uni-Directional
Handpiece
Handswitch Control
Figure 24 – Control Options Screen
NOTE: Available control options may vary. The console will
only display options that are available for the connected
device.
4. Adjust control options as necessary (Figure 25 and
Figure 26).
