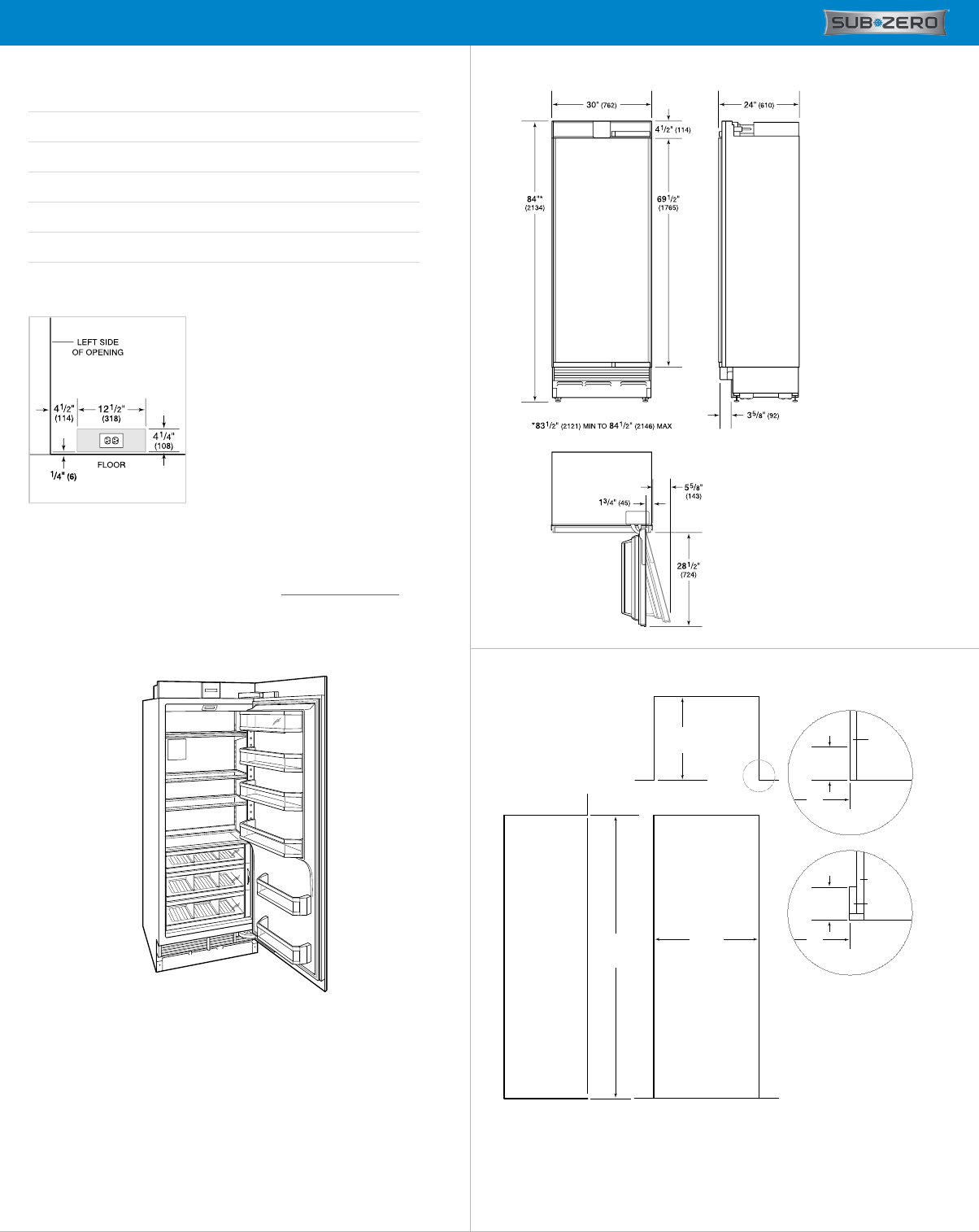

Quick Reference Guide

30" DESIGNER COLUMN REFRIGERATOR - PANEL READY
PRODUCT SPECIFICATIONS
Model IC-30R
Dimensions 30"W x 84"H x 24"D
Door Clearance 28 1/2"
Refrigerator Capacity 17.3 cu. ft.
Electrical Supply 115 VAC, 60 Hz
Electrical Service 15 amp dedicated circuit
ELECTRICAL
NOTE: The electrical outlet must be positioned with the grounding prong to the right of
the thinner blades.
PANEL SPECIFICATIONS For complete panels specifications including width/height,
weight requirements and thickness requirements visit subzero-wolf.com/reveal.
NOTE: Dimensions in parenthesis are in millimeters unless otherwise specified
INTERIOR VIEW
This illustration is intended for interior reference only and may not represent the exterior
of the model being specified.
DIMENSIONS
STANDARD INSTALLATION
25" (635)
OPENING
DEPTH
30" (762)
OPENING WIDTH
84"
(2134)
OPENING
HEIGHT
NOTE: 3
1
/2" (89) finished returns will be visible and should be finished to match cabinetry.
SIDE VIEW
TOP VIEW
FRONT VIEW
3
/4" (19)
TYPICAL
FRAMED
CABINETRY
30"
(762)
FILLER
3
1
/2" (89)
FINISHED
RETURN
FRAMELESS
CABINETRY
30"
(762)
3
/4" (19)
TYPICAL
3
1
/2" (89)
FINISHED
RETURN
Specifications are subject to change without notice. This information was generated on April 8, 2021. Verify specifications prior to finalizing your cabinetry/enclosures.
