User Manual

10AG module:
There are four
antenna
connectors,
two for the 2.4
GHz (802.11b
and 802.11g)
band and two
for the 5 GHz
(802.11a)
band, with the
2.4 GHz
connectors
located to the
right of the 5
GHz
connectors. If
you have a
single antenna
for each band,
then connect it
to the main
antenna
connector for
each band,
which is
located to the
right of the
auxiliary
connector, and
set the Rx
Diversity and
Tx Diversity
global settings
to Main Only
(see Section
3.6). If you
have two
antennas for
each band for
diversity, then
in each band
connect the
primary
antenna to the
main antenna
connector and
the secondary
antenna to the
auxiliary
antenna
connector.

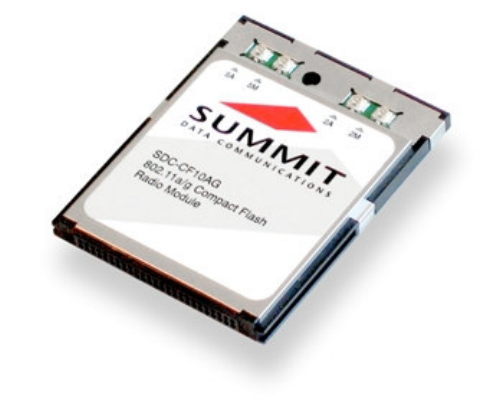

The SDC-CF10AG module has two connectors for
2.4 GHz antennas and two connectors for 5 GHz
antennas.
