Know Your Cordless Air Compressor
Read the owner’s manual and safety instructions carefully before operating the cordless air compressor. Compare the illustration
below to the cordless air compressor in order to familiarize yourself with the location of the various controls and adjustments.
Save this manual for future reference.
*Initial no-load voltage, when fully charged, peaks at 24 volts; nominal voltage under typical load is 21.6 volts.
Technical Data
Battery Voltage* ........................................24 V D.C.
Battery Capacity .......................................1.3 Ah
Battery Runtime Max ...............................30 min
Charger Input............................................100 – 240 V AC,
50/60 Hz, 0.4 A
Charger Output .........................................26 V DC 450 mA
Charge Time Max .....................................3 hours
Motor ........................................................ 154 Watt
Air Flow .......................................... 2.1 gal/min
Working Air Pressure Max ............. 40 PSI, 2.76 BAR, 276 KPA
(
Ination time varies by item)
Air Pressure Max ........................... 120 PSI, 8.27 BAR, 827 KPA
Gauges .......................................... Digital readout
(PSI | BAR | KPA)
Hose Length .................................. 15 in. (38 cm)
Weight (with battery installed) ....... 3.3 lbs (1.15 kg)

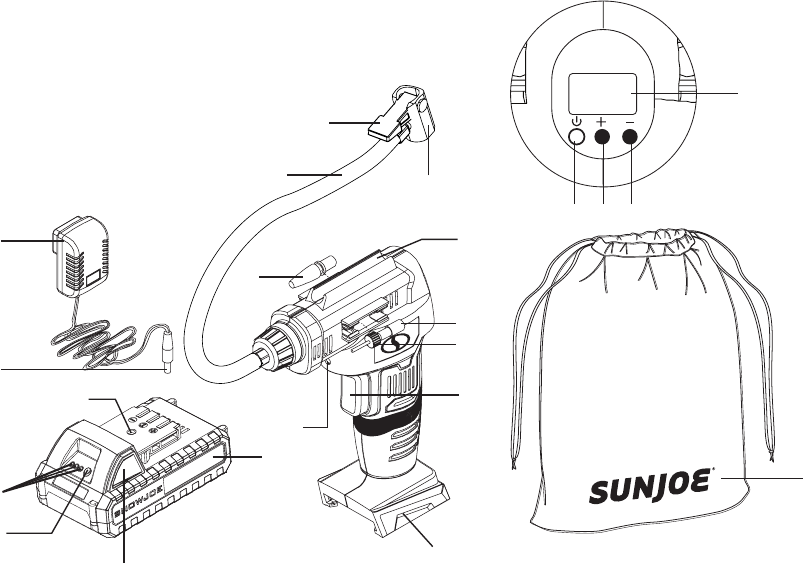

1. 24V lithium-ion charger
(XZ2600-0450)
2. Charger plug
3. Charge socket
4. Battery indicators
5. Push button for battery indicator
6. Push lock button
7. 24V iON+ lithium-ion battery
(24VBAT-LTW) featuring
exclusive EcoSharp
®
technology
8. Air chuck clamp
9. Air chuck
10. Air hose
11. Tapered adapter
12. Hose storage area
13. Presta valve adapter
14. Sport ball needle
15. LED light
16. Trigger switch
17. Battery compartment
18. Digital gauge
19. Power button
20. Pressure setting (+)
21. Pressure setting (-)
22. Storage bag
