Chapter 2 The Cluster Platform 4500/3 System 41

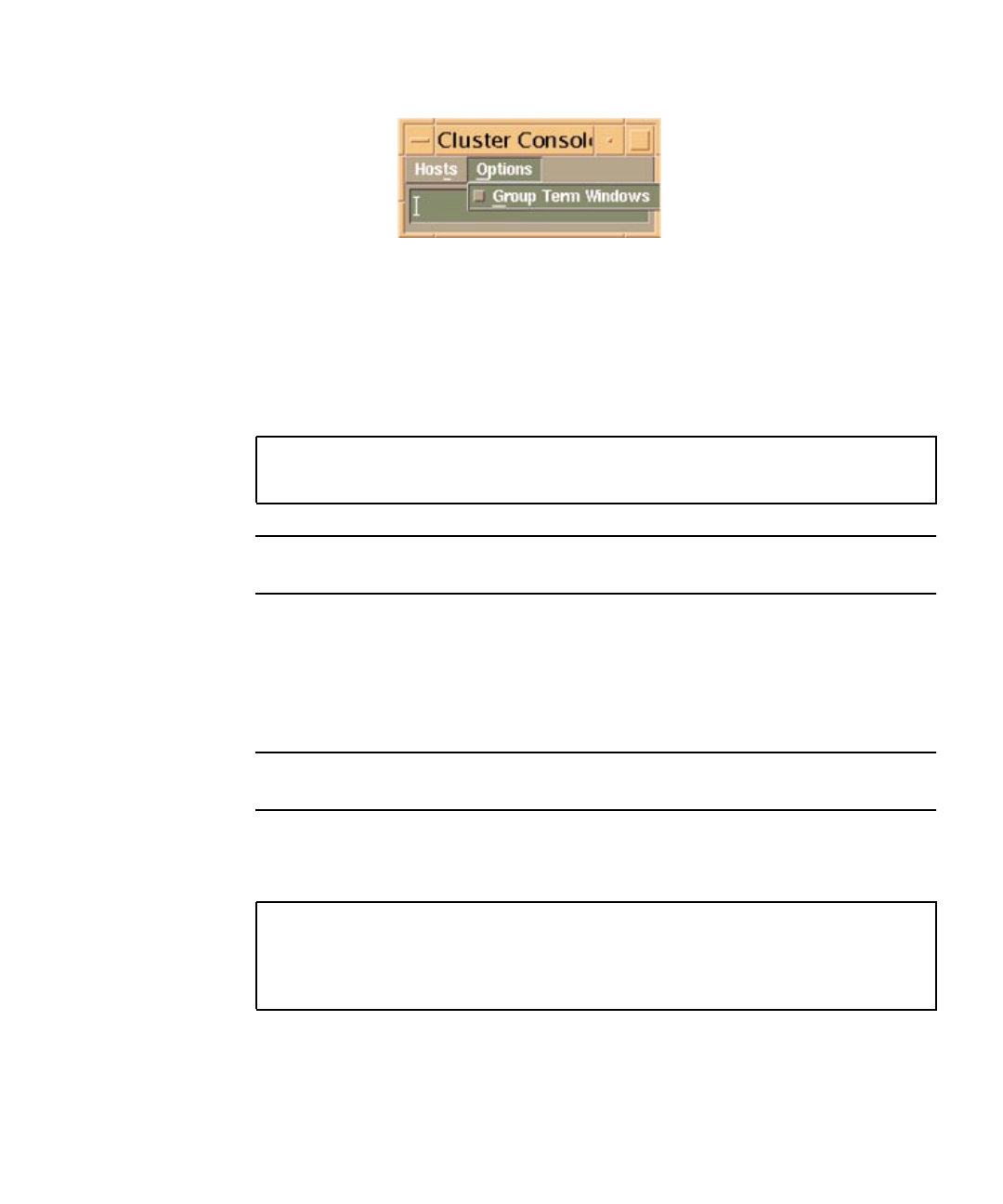

FIGURE 2-8 Cluster Console Window
▼ Installing the Software Stack on Both Cluster Nodes
1. Use the ccp(1M) Cluster Console window to enter the following command into
both nodes simultaneously:
Note – You must use spaces between the dash (-) character in the
“boot net - install” string.
The Solaris operating environment, Solstice DiskSuite, and Sun Cluster 3.0 are
automatically installed. All patches are applied and system files are configured to
produce a basic cluster environment.
See Appendix B for sample output of the automatic installation of the first cluster
node.
Note – Ignore any error messages received during the initial cluster installation. Do
not attempt to reconfigure the nodes.
2. Log into each cluster node as a superuser (password is abc) and change the default
password to a secure password choice:
{0} ok setenv auto-boot? true
{0} ok boot net - install
# passwd
passwd: Changing password for root
New password:
secure-password-choice
Re-enter new password:
secure-password-choice
