Appendix B Physical Characteristics B-3
B.3.1.1 Ethernet Port
The Ethernet connector is an RJ-45 connector. The controller autonegotiates to either
10 BASE-T, 100 BASE-T, or 1000 BASE-T.

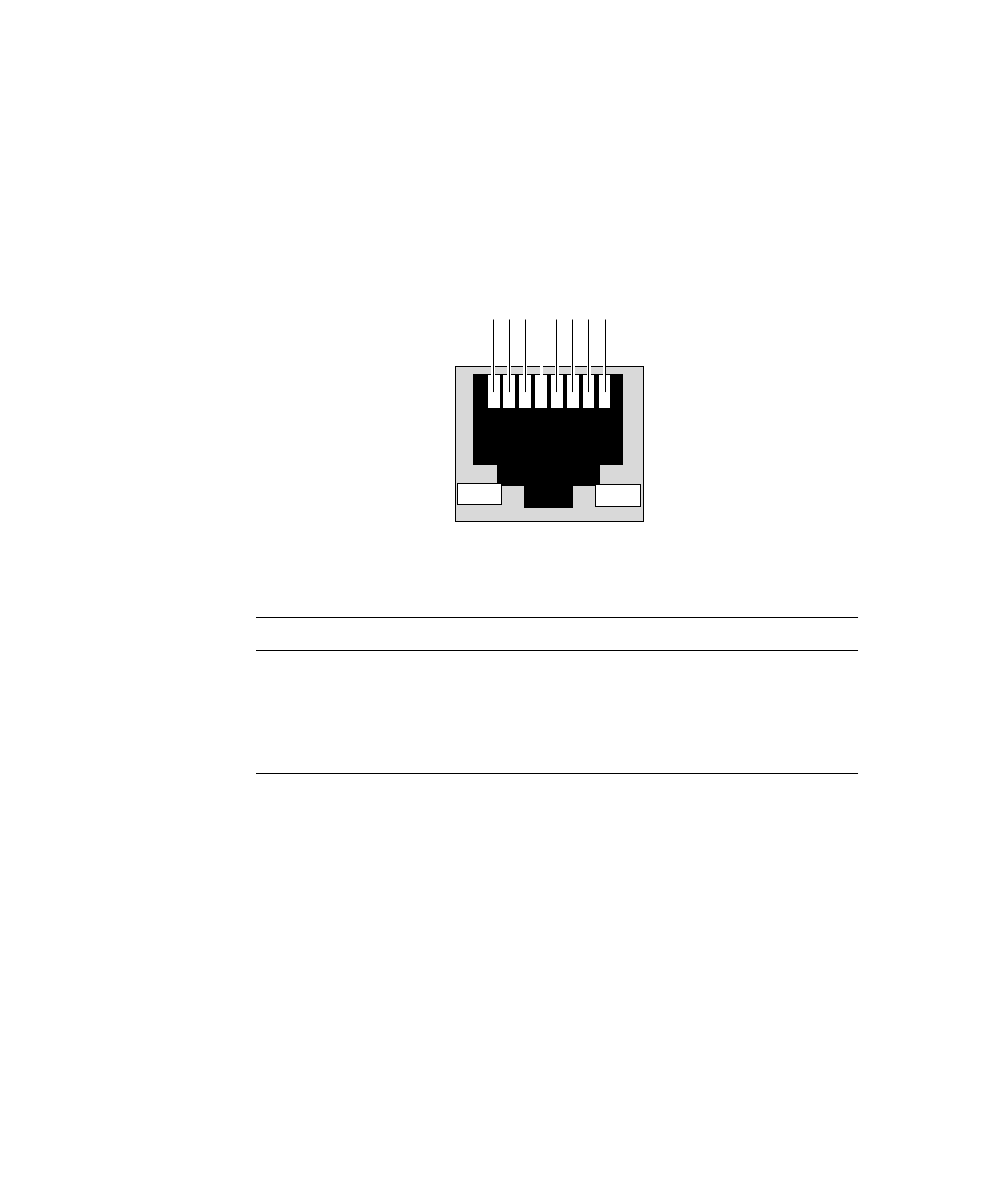

FIGURE B-1 shows the Ethernet port connector.
FIGURE B-1 Ethernet RJ-45 Connector
TABLE B-1 provides the eight pin assignments for the Ethernet port connector.
TABLE B-1 Ethernet Port Connector Pin Assignments
Pin Signal Name Pin Signal Name
1 DA+ 5 DC-
2 DA- 6 DB-
3 DB+ 7 DD+
4 DC+ 8 DD-
1 2 3 4 5 6 7 8
