Appendix B Physical Characteristics B-5
B.3.1.3 Serial Port

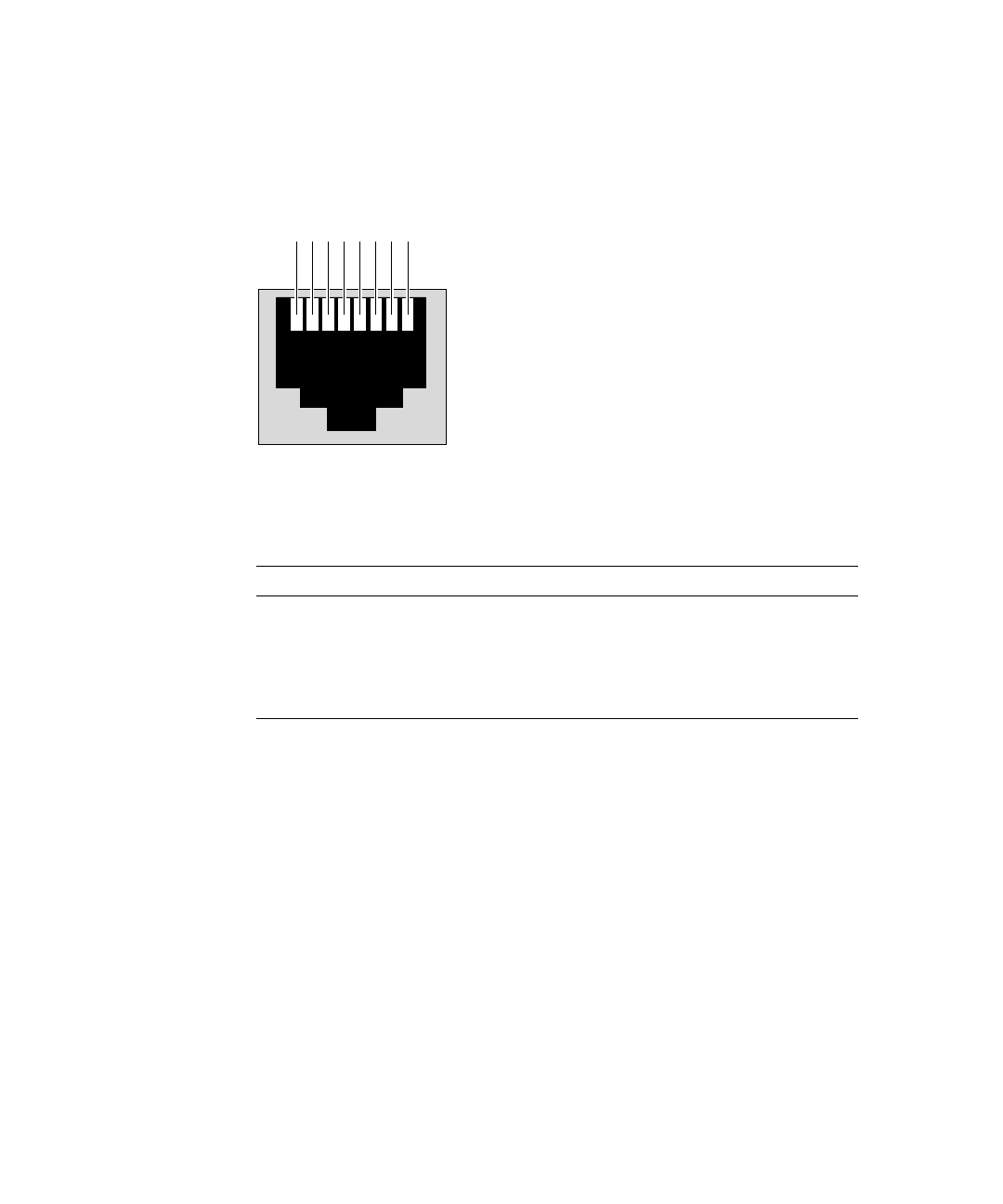

FIGURE B-3 shows the connector pin assignments for the front panel serial port.
FIGURE B-3 Front Panel Serial RJ-45 Connector
B.3.2 AMC Connector
One 170-pin connector provides the AMC connection. The connector and pinouts are
defined by the industry-standard specification PICMG Advanced Mezzanine Cards
AMC.0 Specification R1.0 ECR-002 D0.9, June 29, 2006.
The AMC slot is available at the front panel. The AMC can be accessed from the
front panel, depending on the features of the AMC, or through an optional advanced
rear transition module (ARTM).
TABLE B-3 lists the serial port connector pin assignments.
TABLE B-3 Serial Port Mini DIN 8-pin Connector Pinouts
Pin Signal Name Pin Signal Name
1 RTS 5 GND
2 DTR 6 RXD
3 TXD 7 DSR
4 GND 8 CTS
1 2 3 4 5 6 7 8
