Chapter 2 Hardware Installation and Service 2-9

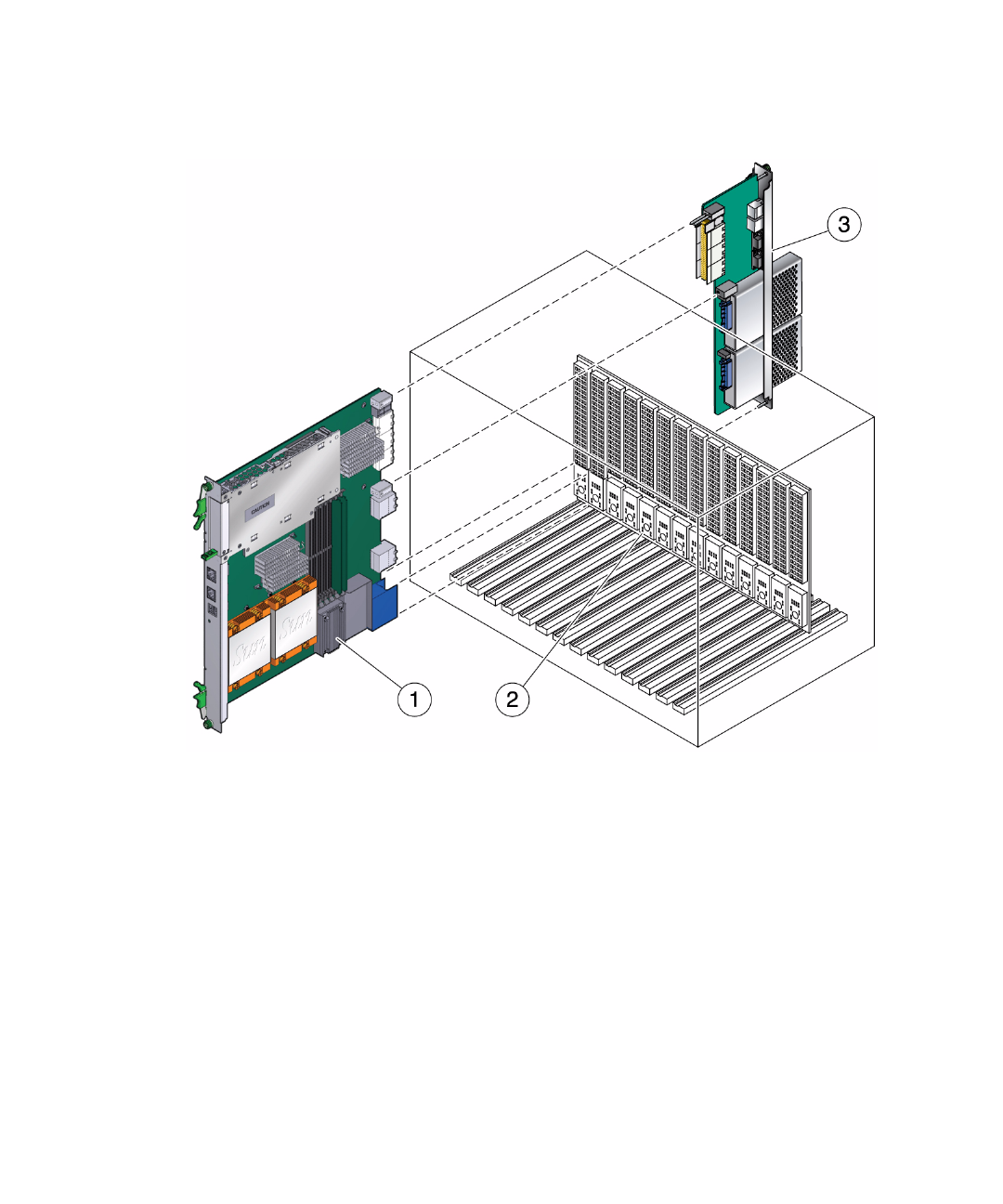

FIGURE 2-1 Installing a Netra CP32x0 ARTM
3. Remove the slot filler panel from the selected slot, if necessary.
4. Retrieve the advanced rear transition module (ARTM) from the ship kit.
5. Prepare the rear transition module by opening the injector/ejector latch at the
top of the module (
FIGURE 2-2).
