2-22 Sun Netra CP3250 Blade Server User’s Guide • April 2009
The socket and module are both keyed, which means that the DIMM can be installed
only one way. With even pressure, push simultaneously on both upper corners of the
DIMM until its bottom edge (the edge with the gold fingers) is firmly seated in the
connector.

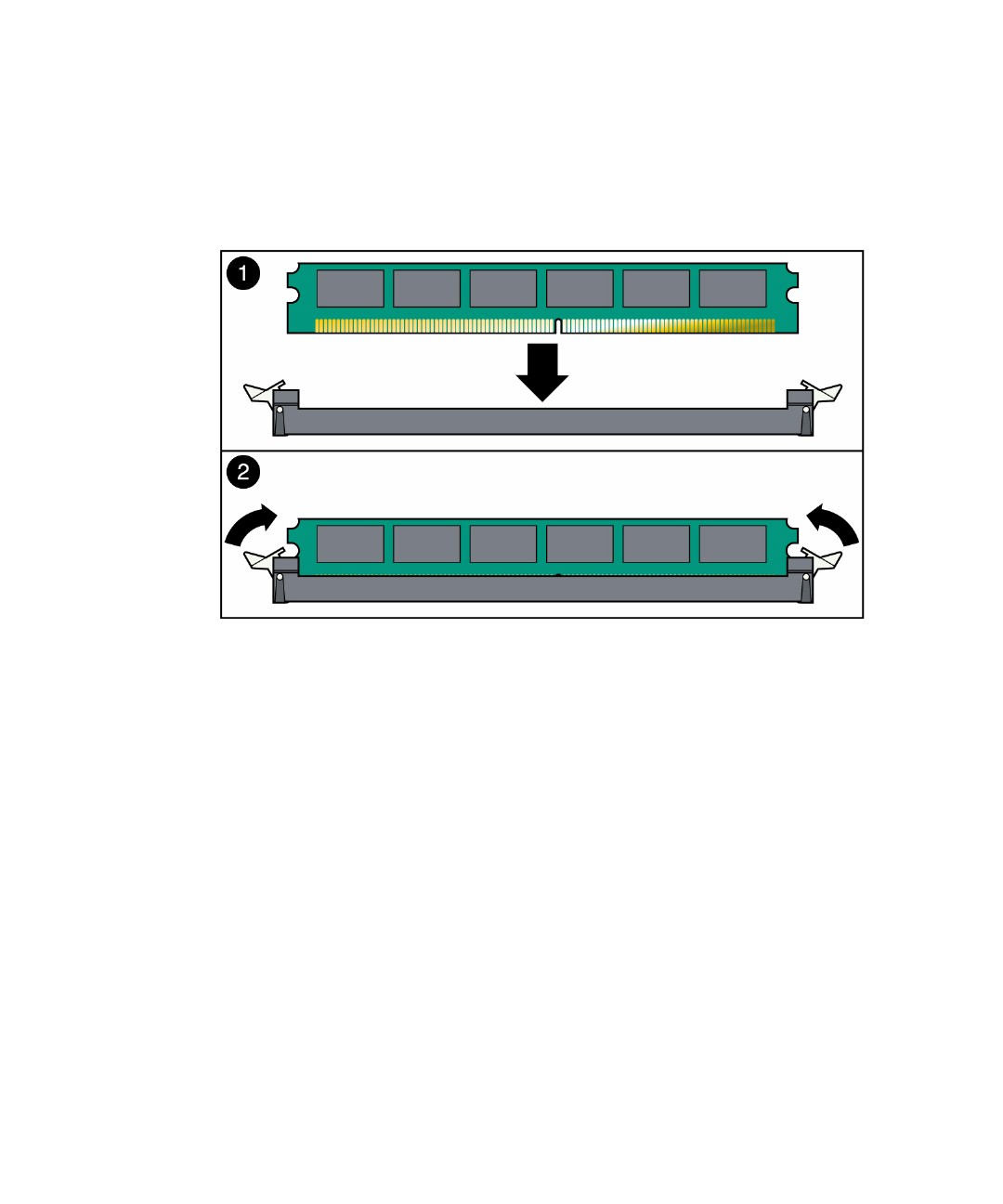

FIGURE 2-6 Installing a DIMM
6. Press the top edge of the DIMM toward the blade server until the retainer clips
click into place in the notches on the DIMM sides (
FIGURE 2-6).
The small metal retainer clips on each side of the DIMM slot are spring-loaded, and
they should click into place in the notches on the sides of the DIMM.
