2-34 Sun Netra CP3250 Blade Server User’s Guide • April 2009

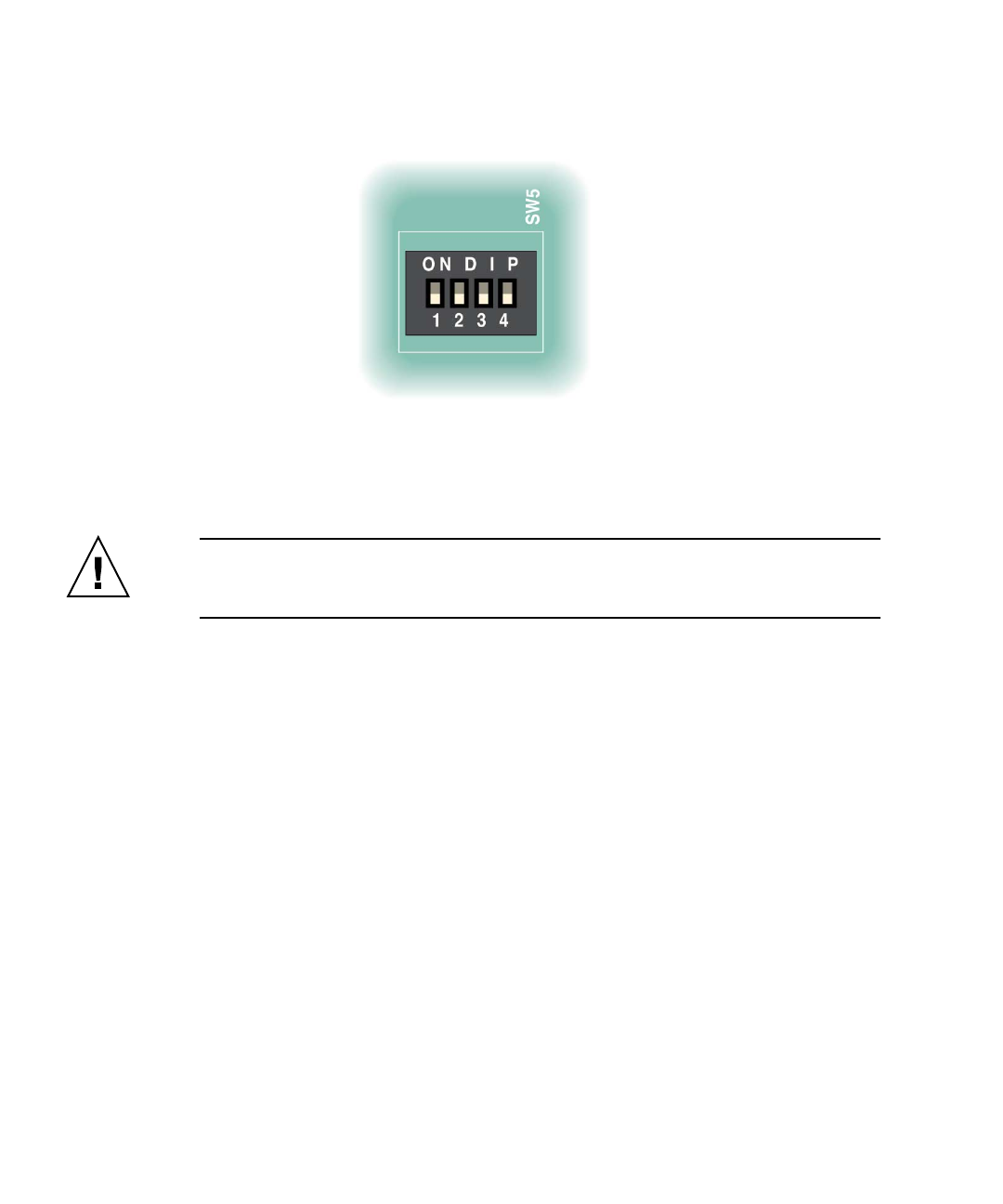

FIGURE 2-15 SW5 Default DIP Switch Settings
2.3.12 Resetting the Netra CP3250 Blade Server
Caution – Do not operate the ATCA shelf without all fans, component heatsinks, air
baffles, and covers installed. Severe damage to components can occur if the ATCA
shelf is operated without adequate cooling mechanisms.
1. Use a spudger tool or other stylus to press and release the recessed Reset
button on the front of the Sun Netra CP3250 blade server (
FIGURE 2-16).
2. Confirm the progress of the reset by monitoring the BIOS POST messages.
