Raspberry Pi Pin Number Introduction
For you to better understand, we draw the pin mapping tables below for the 26-pin/40-pin
GPIO Extension Board.

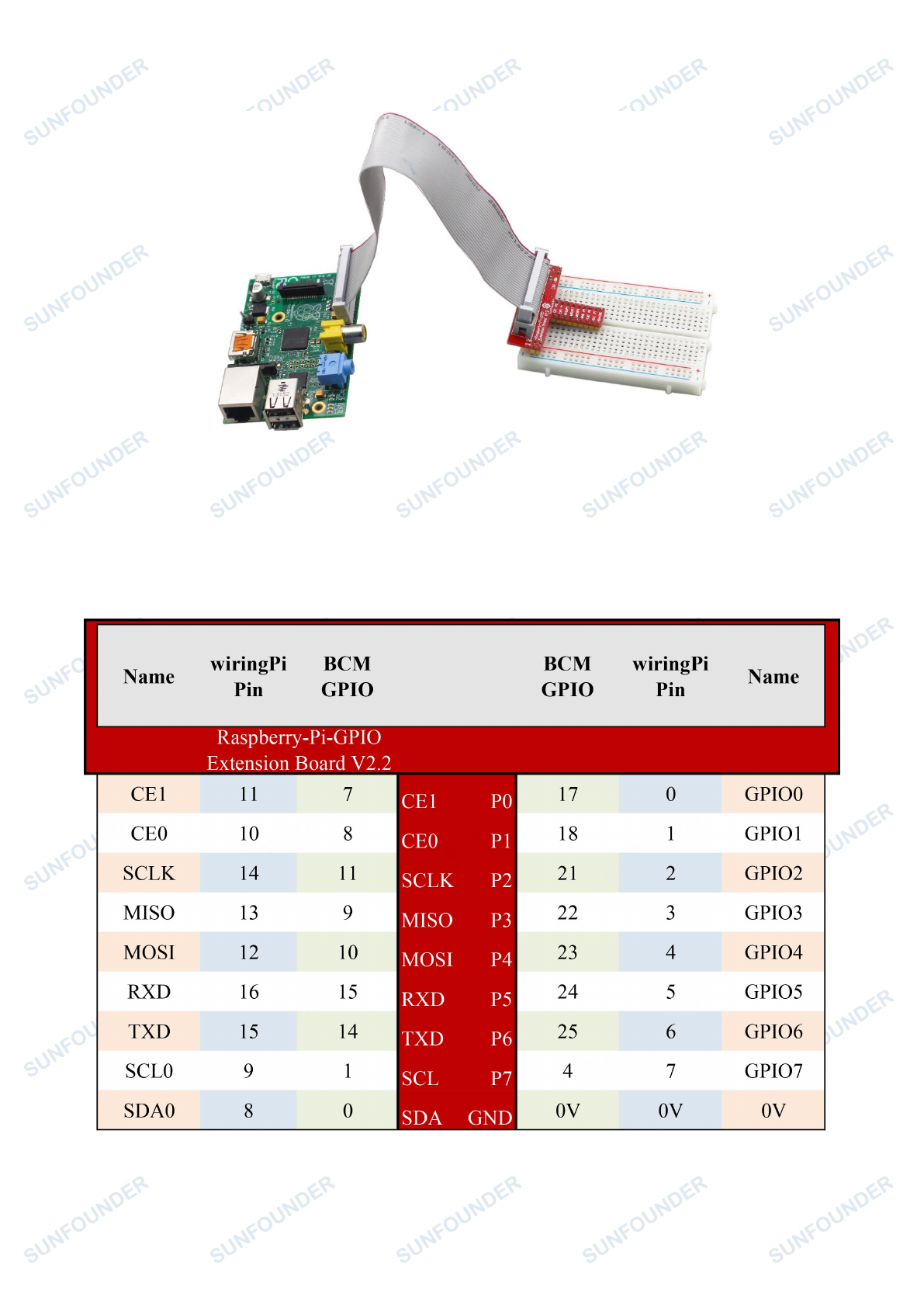

The pin mapping table for 26-pin GPIO Extension Board. Its 5V0 and 3V3 pins are not shown.
26-pin GPIO Extension Board
