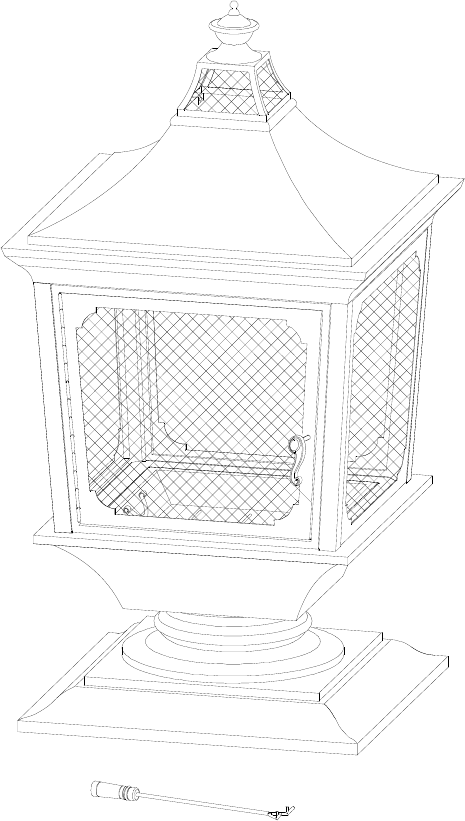

OWNER’S MANUAL Worthington Fireplace
Warning: • The Fireplace is HOT! DO NOT allow your children to play near it when Fireplace is in use. • To avoid destroying the finish, please handle the surface by using a soft cloth instead of your bare hands. • Read all instructions thoroughly and be sure you understand them fully before attempting to use this product. • To extend the life of this product, store indoors while not in use. • Item is hot when in use and can burn if touched. Allow the item to cool before touching.
Part List： No.
Step 1: Connect Base (L) and Connector (K) by 5/16-18x1.125 Bolt (AA), Ф8 Spring washer (EE), 5/16-18 Nut (DD) and Ф8 Flat washer (CC). AA EE CC DD K L Step 2： Connect Fire bowl Base (O) and Connector (K) by 5/16-18x0.6 Bolt (BB), Ф8 Spring washer (EE) and Ф8 Flat washer (CC). Make sure the Frontgate Logo goes to the back of the Fire Pit below the Ash Catcher.
Step 3： Step 4： Insert Ash tray (J) into Fire bowl Base (O). Place Fire bowl (N) into Fire bowl Base (O), then put Cover (C) onto Top frame (D).
