Country of Origin: China

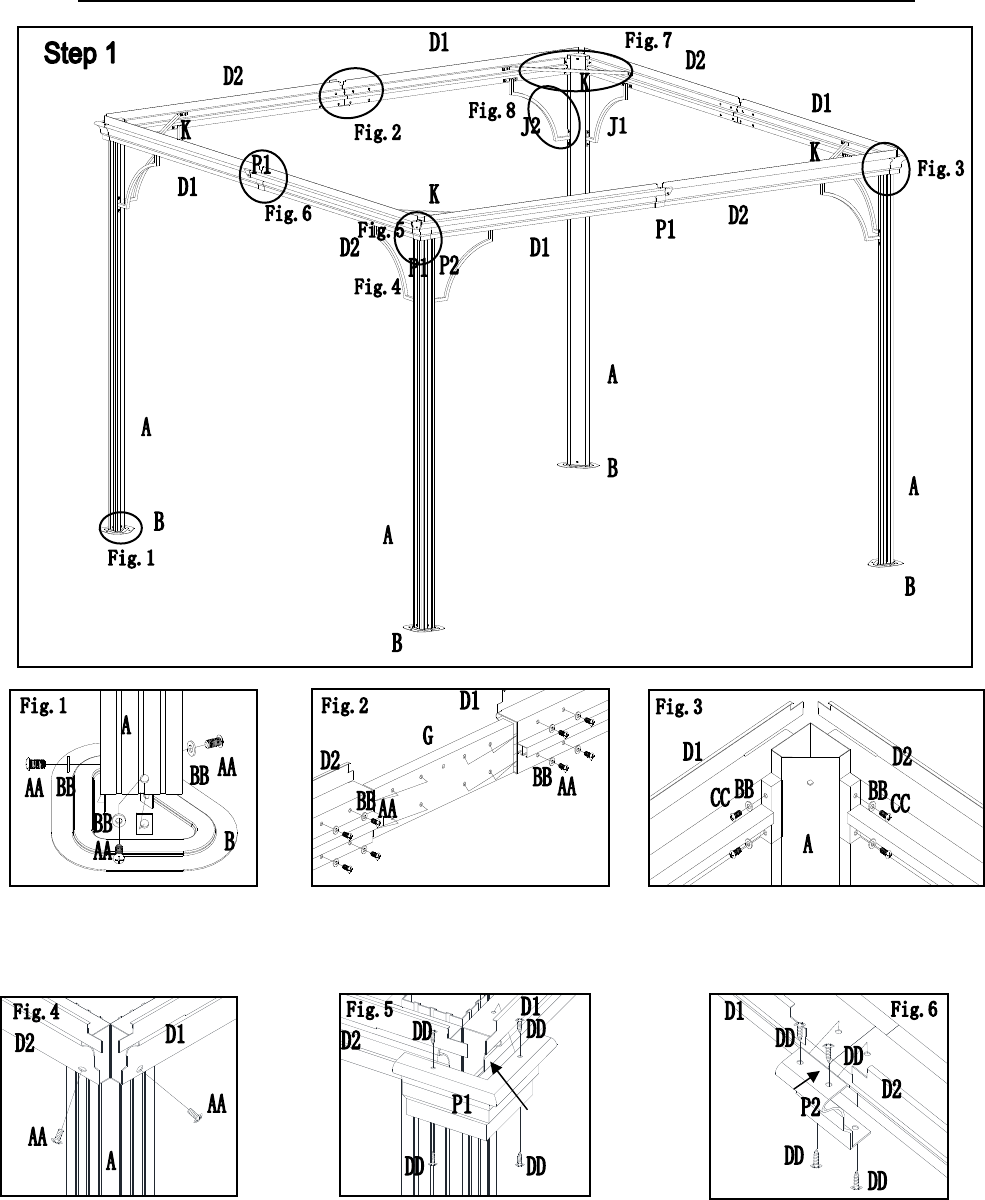

Fig.1: Attach stake slice(B) on post(A) and fix them tightly by bolt(AA) and flat washer(BB)
Fig.2: Attach decorative groove connector(G) to decorative grooves(D1&D2) and fix them tightly by bolt(AA) and flat washer (BB).
Fig.3: Attach Post(A) to decorative grooves(D1&D2) and fix them tightly by bolt(CC) and flat washer(BB),.
Fig.4: Attach decorative grooves(D1, D2) to post(A)from the outside and fx them tightly by bolt(AA).
Fig.5: Attach the corner cover(P1) to decorative grooves, and fix tightly by bolt(DD)
Fig.6: Attach the middle cover(P2) to decorative grooves and fix tightly by bolt(DD)
