Installation & Assembly

Pre-Assembly (continued)

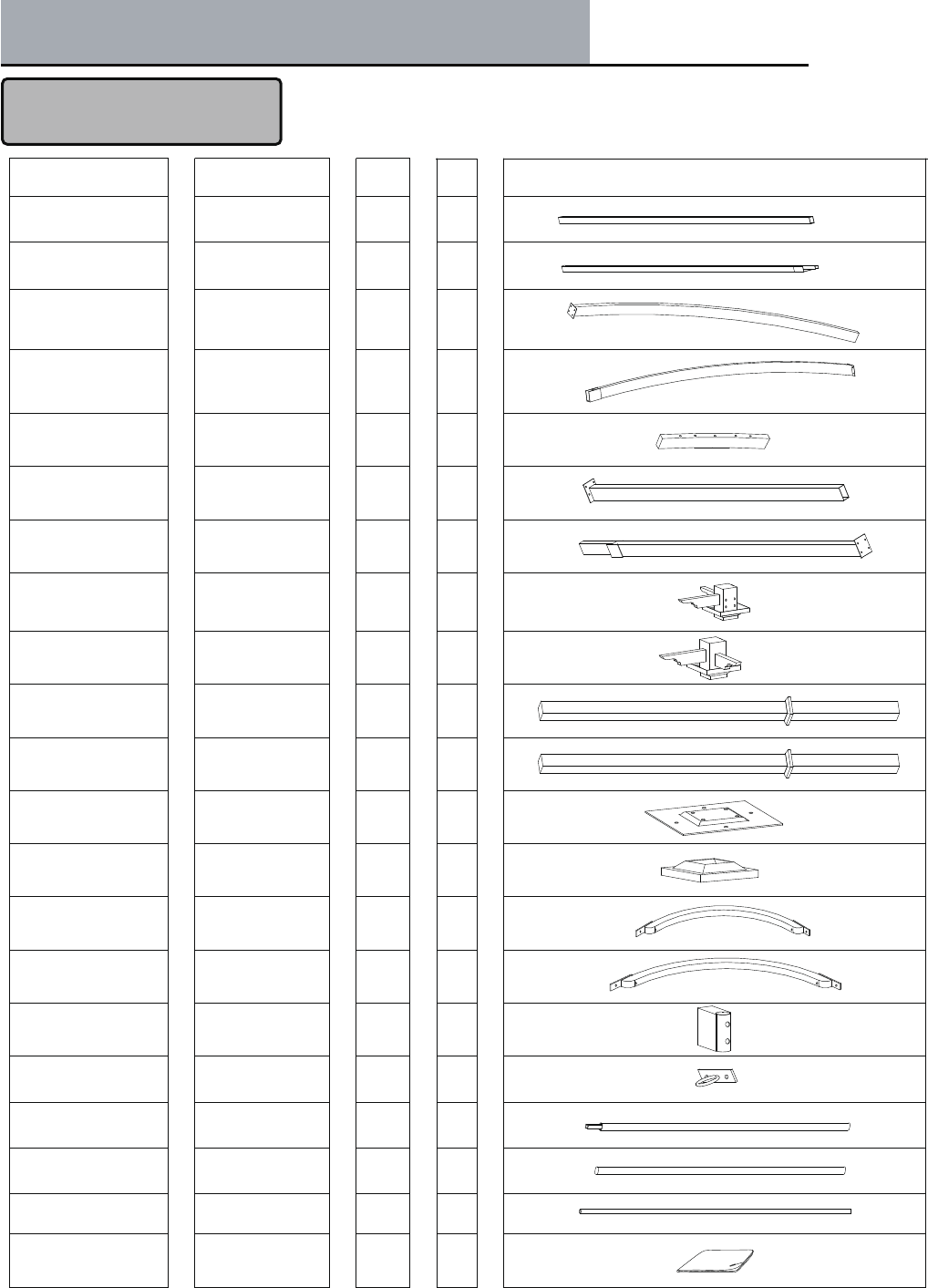

Parts List
Description Part #
Label Qty
Beam PG0080XXR01 A 5
Beam 2 PG0080XXR02 B 5
Arc Beam 1 PG0080XXR03 C 2
Arc Beam 2 PG0080XXR04 D 2
Arc Beam
Connector
PG0080XXR05 E 2
Support Beam 1 PG0080XXR06 F1 2
Support Beam 2 PG0080XXR07 F2 2
Decorative
Connector 1
PG0080XXR08 G1 2
Decorative
Connector 2
PG0080XXR09 G2 2
Post 1 PG0080XXR10 H1 2
Post 2 PG0080XXR11 H2 2
Stake Piece GZD8080X103 I 4
Stake Cap GZD8080S103 J 4
Arc Support 1 PG0080XXR12 K 4
Arc Support 2 PG0080XXR13 L 4
Sliding Rail
Connector 1
PG0080XXR14 M1
8
Rod Connector PG0080XXR17 N 4
Canopy Rod 1 PG0080XXR18 O 2
Canopy Rod 2 PG0080XXR19 P 2
Sliding Rail Rod PG0080XXR20 Q 4
Canopy PG0080XXR21 R 1
