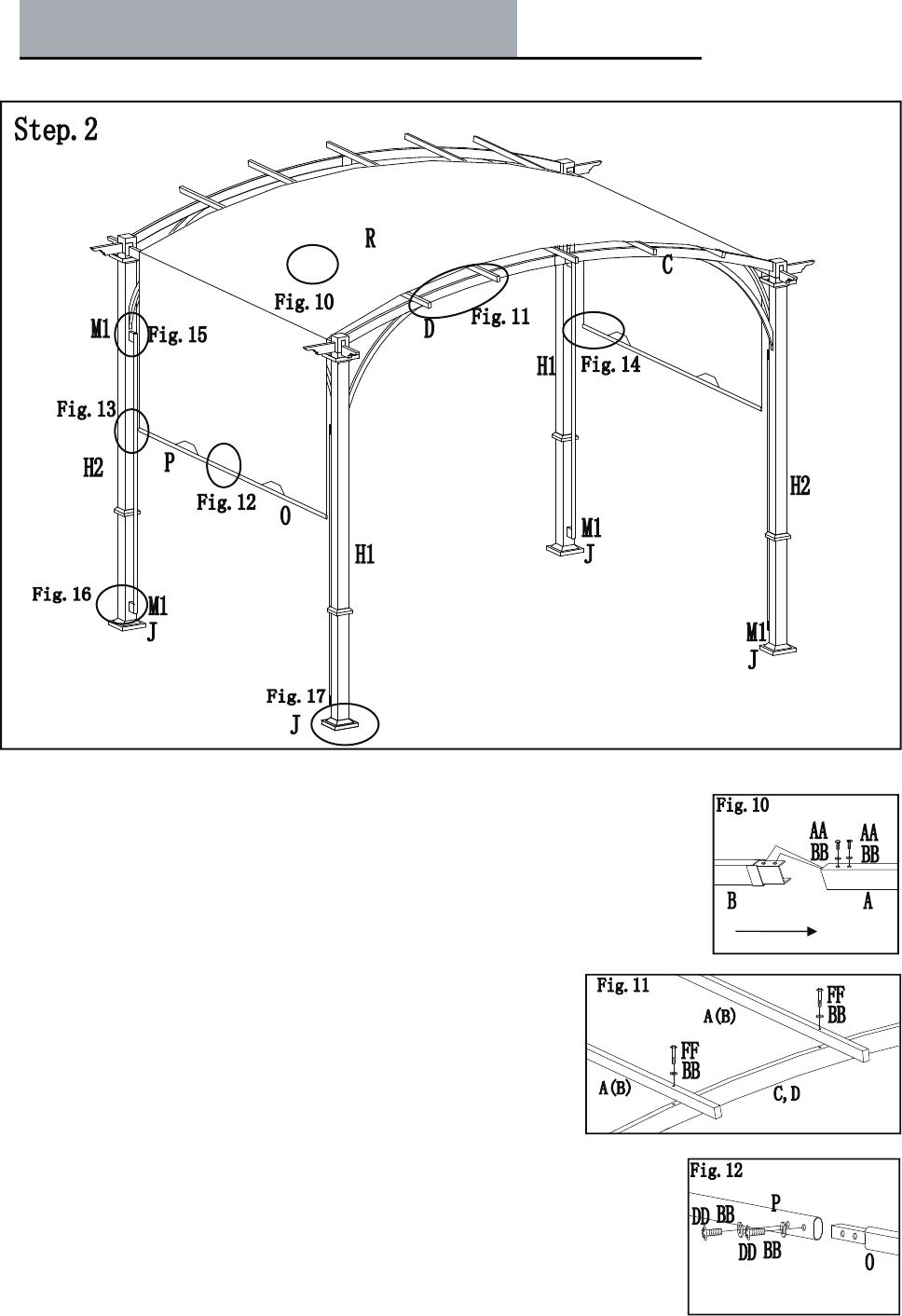

Fig.10: Insert end of Beam 2 (B) into Beam 1(A), and connect by
using Bolt (AA) and Washer (BB).
Fig.11: Connect the assembled Beam (A,B) to Arc Beam
(C,D) by Cross Bolt (FF) and Washer (BB).
Fig.12: Insert Canopy Rod (O) into Canopy Rod 2 (P), by
using Cross Bolt (DD) and Washer (BB) to fasten.
Assembly Instructions
