Installation & Assembly

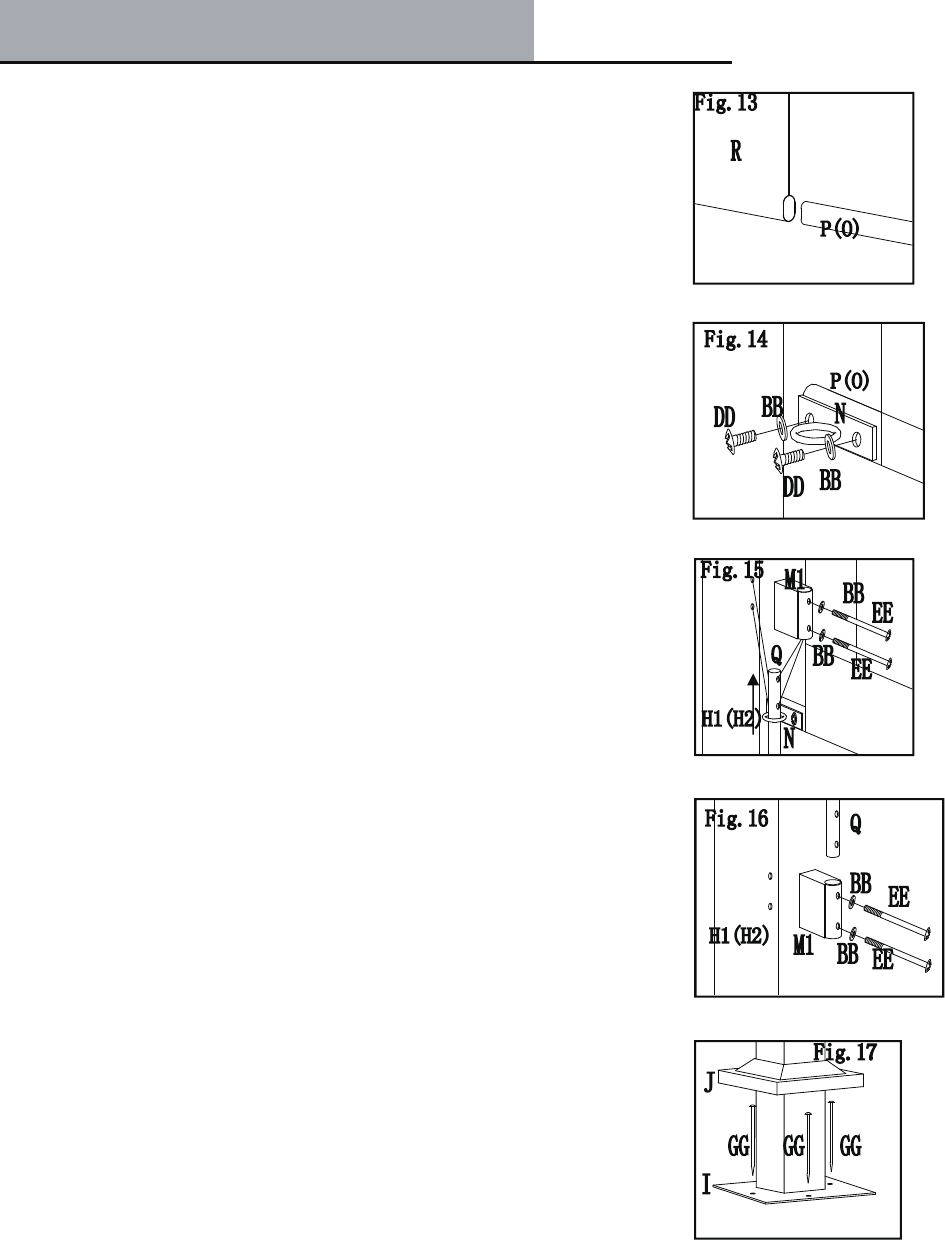

Fig.13: Firstly spread cover on assembled top frame, insert
assembled Canopy Rod (P,O) into the bottom sleeve
of the Canopy (R).
Fig.14: Attach Rod Connector (N) to Canopy Rod (P,O) by
Cross Bolt(DD) and Washer (BB).
Fig.15: Cross Sliding Rail Rod (Q) into the ring of Rod
Connector (N), insert end of Sliding Rail Rod (Q) into
Sliding Rail Connector 1 (M1), and then attach to
Post (H1, H2) by using Cross Bolt (EE) and Washer
(BB).
Fig.16: Insert end of Sliding Rail Rod (Q) into Sliding Rail
Connector1 (M1), then fix them to the lower end of
Post (H1,H2) by using Cross Bolt (EE) and Washer
(BB).
Fig.17: Fix assembled Pergola on the ground by Ground
Stakes (GG).
Assembly Instructions
