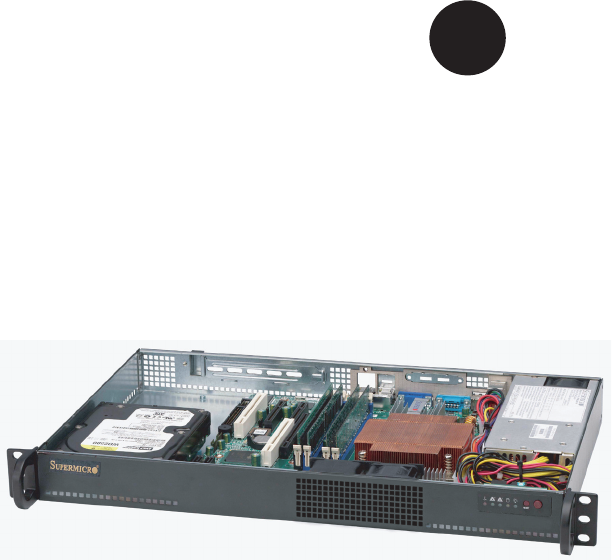

SUPER ® SC510 Chassis Series SC510-200B USER’S MANUAL 1.
SC510-200B Chassis Manual The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com. Super Micro Computer, Inc.
Preface Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SC510 chassis. Installation and maintenance should be performed by experienced technicians only. Supermicro’s SC510-200B chassis features a unique and highly-optimized design for dual-core Intel Xeon 300/Core 2 Duo platforms. The chassis is equipped with a 200W high efficiency power supply for superb power savings.
SC510 Chassis Manual Manual Organization Chapter 1 Introduction The first chapter provides a checklist of the main components included with this chassis and describes the main features of the SC510-200B chassis. This chapter also includes contact information. Chapter 2 System Safety This chapter lists warnings, precautions, and system safety. It recommended that you thoroughly familiarize yourself installing and servicing this chassis safety precautions.
Preface Table of Contents Chapter 1 Introduction 1-1 1-2 Overview ......................................................................................................... 1-1 Shipping List.................................................................................................... 1-1 Part Numbers .................................................................................................. 1-1 1-3 Where to get Replacement Components........................................................
Chapter 5 Rack Installation 5-1 Overview ......................................................................................................... 5-1 5-2 Unpacking the System .................................................................................... 5-1 5-3 Preparing for Setup ......................................................................................... 5-1 Choosing a Setup Location .............................................................................
Chapter 1: Introduction Chapter 1 Introduction 1-1 Overview Supermicro’s SC510-200B chassis features a unique and highly-optimized design. The chassis is equipped with high efficiency 80%+ low noise power supply. 1-2 Shipping List Part Numbers Please visit the following link for the latest shiping lists and part numbers for your particular chassis model http://www.supermicro.com/ SC510-200B Chassis Model SC510-200(B) CPU HDD I/O Slots Intel Xeon 3000/ Core 2 Duo Series 1 Fixed 3.
SC510 Chassis Manual 1-3 Where to get Replacement Components Though not frequently, you may need replacement parts for your system. To ensure the highest level of professional service and technical support, we strongly recommend purchasing exclusively from our Supermicro Authorized Distributors / System Integrators / Resellers. A list of Supermicro Authorized Distributors / System Integrators /Reseller can be found at: http://www.supermicro.com. Click the Where to Buy link.
Chapter 1: Introduction 1-4 Contacting SuperMicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel: +31 (0) 73-6400390 Fax: +31 (0) 73-6416525 Email: sales@supermicro.
SC510 Chassis Manual Notes 1-4
Chapter 2: System Safety Chapter 2 System Safety 2-1 Overview This chapter provides a quick setup checklist to get your chassis up and running. Following the steps in order given should enable you to have your chassis setup and operational within a minimal amount of time. This quick set up assumes that you are an experienced technician, famailiar with common concepts and terminology.
SC510 Chassis Manual 2-4 Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SC510-200B from damage: • • • • • • • • Be aware of the locations of the power on/off switch on the chassis as well as the room’s emergency power-off switch, disconnection switch or electrical outlet. If an electrical accident occurs, you can then quickly remove power from the system. Do not work alone when working with high voltage components.
Chapter 2: System Safety • 2-5 • • • • • 2-6 DVD-ROM Laser: CAUTION - this server may have come equipped with a DVD-ROM drive. To prevent direct exposure to the laser beam and hazardous radiation exposure, do not open the enclosure or use the unit in any unconventional way. General Safety Precautions Keep the area around the chassis clean and free of clutter.
SC510 Chassis Manual • • • • • • Touch a grounded metal object before removing any board from its antistatic bag. Do not let components or PCBs come into contact with your clothing, which may retain a charge even if you are wearing a wrist strap. Handle a board by its edges only; do not touch its components, peripheral chips, memory modules or contacts. When handling chips or modules, avoid touching their pins. Put the serverboard and peripherals back into their antistatic bags when not in use.
Chapter 3: Chassis Components Chapter 3 Chassis Components 3-1 Overview This chapter describes the most common components included with your chassis. Some components listed may not be included or compatible with your particular chassis model. For more information, see the installation instructions detailed later in this manual. 3-2 Components Chassis Chassis may include one of the following three options: • One fixed 3.5" hard drive. • Up to 4 fixed 2.5" hard drives.
SC510 Chassis Manual Mounting to a Rack (optional) The SC510-200B can be placed in a rack for secure storage and use. To setup your rack, follow the step-by-step instructions included in this manual. Power Supply Each SC510-200B chassis model includes a high-efficiency 80%+ low noise power supply with thermal control fan, rated at 200 Watts. In the unlikely event your power supply fails, replacement is simple. The power supply simply needs to be unscrewed from the chassis and replaced.
Chapter 4: Chassis Setup and Maintenance Chapter 4 Chassis Setup and Maintenance 4-1 Overview This chapter covers the steps required to install components and perform maintenance on the chassis. The only tool you will need to install components and perform maintenance is a Phillips screwdriver. Print this page to use as a reference while setting up your chassis. ! Review the warnings and precautions listed in the manual before setting up or servicing this chassis.
SC510 Chassis Manual 4-2 A Removing the Chassis Cover B C D E F 1 2 G H I J K R E V I S I O N S / -×-q DESCRIPTION ±Ô-z REV ª©¥» LOCA ¦ 1 1 RANGE ½d³ò TOLERANCE ¤½®t X.xx ± 0.10 X.x ± 0.25 X ± 1.00 ²Ä¤T¨¤ªk THE 3RD PROJECTION A BLEC M Ablecom Technology Inc. MODEL NO./ ¾÷«¬ : SC510 ¤j˚T¬ì§ÞªÑ¥÷¦³--¤½¥q TITLE / «~¦W : MATERIAL / §÷½è : DRAWN / ø¹Ï : DATE / ¤é´Á: * SHO 06-Nov-07 FINISH / ªí-±³B¸Ì : See Note.
A Chapter 4: Chassis Setup and Maintenance 4-3 Installing the Hard Drives The 3.5" hard drive screws directly into the chassis B D C B A C D J I H G F E E F Figure 4-2A: Installing the 3.5" Hard Drive 1 1 The 2.5" hard drives (1) must be installed in their brackets (2) before they are screwed into the chassis 2 3 4 2 5 6 7 8 Figure 4-2B: Installing the 2.
SC510 Chassis Manual 4-4 Installing the Motherboard Figure 4-3: Chassis Standoffs Permanent and Optional Standoffs Standoffs prevent short circuits by securing space between the motherboard and the chassis surface. The SC510-200B chassis includes permanent standoffs in locations used by most motherboards. These standoffs accept the rounded Phillips head screws included in the SC510-200B accessories packaging. When using the Micro ATX 9.6"x9.
Chapter 4: Chassis Setup and Maintenance Installing the Motherboard: 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, precautions, and cable connections. 2. Open the chassis cover. 3. As required by your motherboard, install standoffs in any areas that do not have a permanent standoff. To do this: A. Place a hexagonal standoff screw through the bottom the chassis. B. Secure the screw with the hexagon nut (rounded side up). 4.
SC510 Chassis Manual Add-on Card/Expansion Slot Setup A 1 2 SC510 chassis includes an I/O slot for the optional add-on card. A full-height, halflength PCI add-on card is supported. A riser card is required in order to adapt the add-on card to the 1U chassis. For further information on add-on cards and risers cards, refer to the Supermicro website at www.supermicro.
Chapter 4: Chassis Setup and Maintenance 5. Insert the assembled add-on card and riser card into the expansion slot inside the chassis, carefully aligning the plate of the add-on card with the openings in the back of the chassis. A 6. Replace the add-on card clip and screw it onto the chassis to hold the add-on card in place.
SC510 Chassis Manual 4-5 Replacing the Heatsink The SC510-200B Chassis includes a heatsink, which conducts heat away from the motherboard. 1. Unplug all power leading to the chassis. 2. Remove the motherboard following the directions in section 4-4. 3. Remove the 4 mounting screws which attach the heatsink to the motherboard and set them aside for later use. 4. Carefully lift the heatsink from the motherboard. 5.
Chapter 4: Chassis Setup and Maintenance 4-6 Installing the Air Shroud 1 Figure 4-6: Air Shroud for SC510-200B Chassis Air shrouds concentrate airflow to maximize fan efficiency. The SC510-200B chassis air shroud does not require screws to set up. Place the air shroud in the chassis. The air shroud fits behind the fan closest to the power supply. Use the clip on the fan housing to hold the air shroud in place.
SC510 Chassis Manual Checking the Server's Air Flow 1. Make sure there are no objects to obstruct airflow in and out of the server. 2. Use only recommended server parts. 3. Make sure no wires or foreign objects obstruct air flow through the chassis. Pull all excess cabling out of the airflow path, or use shorter cables. 4. The control panel LEDs inform you of system status. See “Chapter 3: System Interface” for details on the LEDs and the control panel buttons.
Chapter 4: Chassis Setup and Maintenance 4-7 Replacing System Fans DTwo heavy duty fans within a single fan housing provideG cooling for the chassis. E F H These fans circulate air through the chassis as a means of lowering the chassis internal temperature. 1. If necessary, open the chassis while the power is running to determine which fan has failed. (Never run the server for an extended period of time with the chassis open.) 2. Turn off the power to the system and unplug the system from the outlet.
D E SC510 Chassis Manual F G H Figure 4-8: Removing Fan Housing from Chassis 6. To remove the fans from the fan housing, gently push upwards on the fan from the underside of the fan housing. Gently ease the fan out of the top of the fan housing Figure 4-9: Removing Fans from Fan Housing 7. Slide the replacement fan upwards through the bottom of the fan housing. 8. Reconnect the fan wiring and replace the fan housing in the chassis using the mounting screws previously set aside.
Chapter 4: Chassis Setup and Maintenance 4-8 Power Supply The SC510-200B Chassis has a 200 watt power supply. This power supply is autoswitching capable. This enables it to automatically sense and operate at a 100v to 240v input voltage. The SC510-200B chassis has one power supply. In the unlikely event that the power supply unit fails, the system will shut down and you will need to change the power supply unit. New units can be ordered directly from Supermicro (see contact information in the Preface).
SC510 Chassis Manual extend upwards through the mounting thru holes, to hold the power supply in place. Set the screws aside for later use. 4. Remove the power supply from the chassis. 5. Align the mounting thru holes on the power supply with the mounting holes in the chassis and reattach the power supply to the chassis using the four screws which were previously set aside 6. Connect the chassis wiring to the power supply.
Chapter 5: Rack Installation Chapter 5 Rack Installation 5-1 Overview This chapter provides a quick setup checklist to get your chassis up and running. Following these steps in the order given should enable you to have the system operational in a minimal amount of time. 5-2 Unpacking the System You should inspect the box the chassis was shipped in, and note if it was damaged in any way. If the chassis itself shows damage, you should file a damage claim with the carrier who delivered it.
SC510 Chassis Manual • This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and similar environments). ! Warnings and Precautions! ! Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them. • In single rack installation, stabilizers should be attached to the rack. • In multiple rack installations, the racks should be coupled together.
Chapter 5: Rack Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (TMRA).
SC510 Chassis Manual 5-4 Rack Mounting Instructions This section provides information on installing the SC510 chassis into a rack unit There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly. You should also refer to the installation instructions that came with the rack unit you are using. Figure 5-1: Installing the Chassis into a Rack Installing the Chassis into a Rack: 1.
Appendix A: Chassis Cables Appendix A Cables, Screws, and other Accessories A-1 Overview This appendix lists supported cables for your chassis system. It only includes the most commonly used components and configurations. For more compatible cables, refer to the manufacturer of the motherboard you are using and our Web site at: www.supermicro.com.
SC510 Chassis Manual Extending Power Cables Although Super Micro chassis are designed with to be efficient and cost-effective, some compatible motherboards have power connectors located in different areas. To use these motherboards you may have to extend the power cables to the mother boards. To do this, use the following chart as a guide. Power Cable Extenders Number of Pins Cable Part # Length 24 pin CBL - 0042 7.9”(20 CM) 20 pin CBL - 0059 7.9”(20 CM) 8 pin CBL - 0062 7.
Appendix A: Chassis Cables A-4 Chassis Screws The accessory box includes all the screws needed to setup your chassis. This section lists and describes the most common screws used. Your chassis may not require all the parts listed. M/B HARD DRIVE Flat head 6-32 x 5 mm [0.197] Pan head 6-32 x 5 mm [0.197] DVD-ROM, CD-ROM, and FLOPPY DRIVE Pan head 6-32 x 5 mm [0.197] Flat head 6-32 x 5 mm [0.197] Round head M3 x 5 mm [0.197] Round head M2.6 x 5 mm [0.197] RAIL Flat head M4 x 4 mm [0.
Appendix B: Power Supply Specifications Appendix B SC510 Power Supply Specifications 200W MFR Part # PWS-201-1H Rated AC Voltage 100 - 240V 50 - 60Hz 4-2Amp +5V standby 2 Amp +12V 16 Amp +5V 8 Amp +3.3V 8 Amp -12V 0.
