User's Manual (1.0b)

E-22
SC216 Chassis Manual
Cable Name: SAS Dual-port Cable Assembly, 68/76 cm
Part #: CBL-0168L
Placement: Internal cable
Ports: Dual
Description: Internal cascading cable. Connects the backplane to the host bus
adapter or external port. Used in dual port environments.
Cable Name: SAS EL2/EL1 Cascading Cable (External), 68 cm
Part #: CBL-0166L
Placement: External Cable
Ports: Single or Dual
Description: External cascading cable. Connects ports between servers. Use one
cable for single port connections and two cables for dual port connections.
DualHBACongurationCables
Dual Port Cable
Assembly

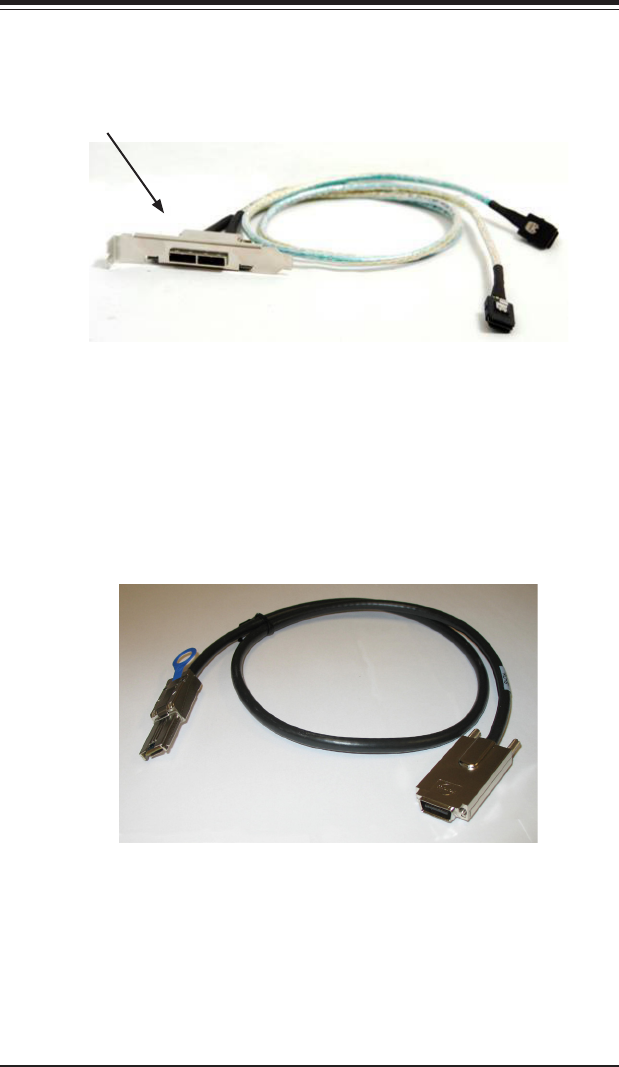

Figure E-22. External Cable (CBL-0166L)
Figure E-21. Dual Port Internal Cable (CBL-0168L)
