Appendix G SAS3-216EL Backplane Specications
Cable Name: 16-port Mini-SAS HD Internal to External Cable Adapter with LP
Bracket
Part #: AOM-SAS3-16I16E-ADP-LP
Ports: Four wide-ports (sixteen ports total)
Placement: Internal cable with adapter
Description: Internal cable, connects the SAS3 backplane to external ports.
Cable Name: 1 Meter External Mini-SAS HD to External Mini-SAS HD Cable
Part #: CBL-SAST-0573
Ports: Single
Placement: External Cable
Description: External cascading cable, connects ports between servers and JBODs.
SingleHBACongurationCables

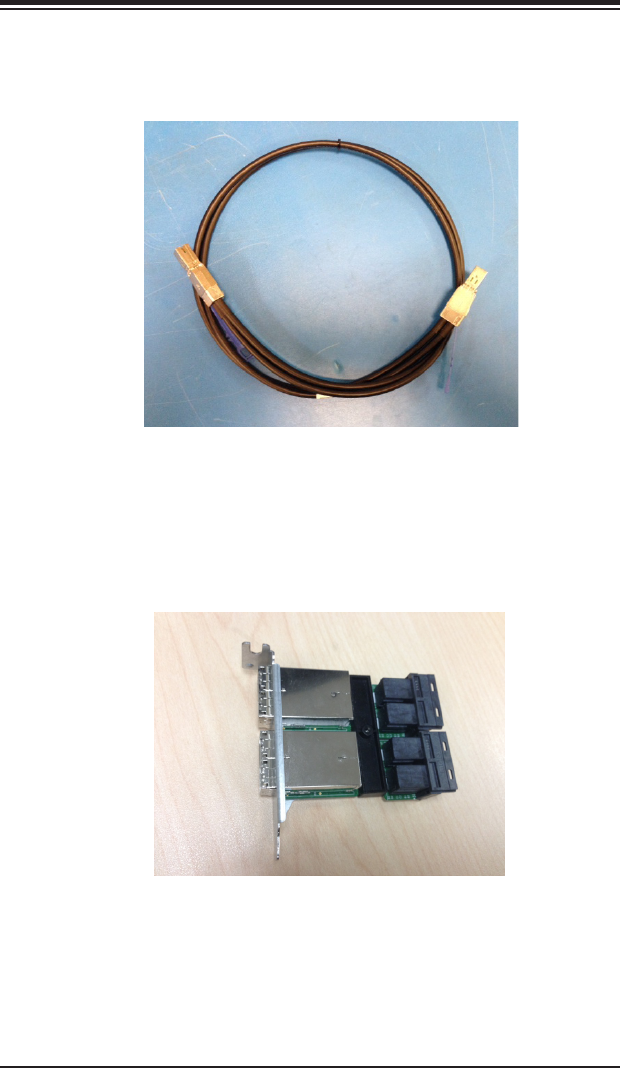

Figure G-17 External Mini-SAS HD to External Mini-SAS HD Cable
Figure G-18. Mini-SAS HD Internal to External Adapter
