User's Manual (1.0b)
SC216 Chassis Manual
5-12

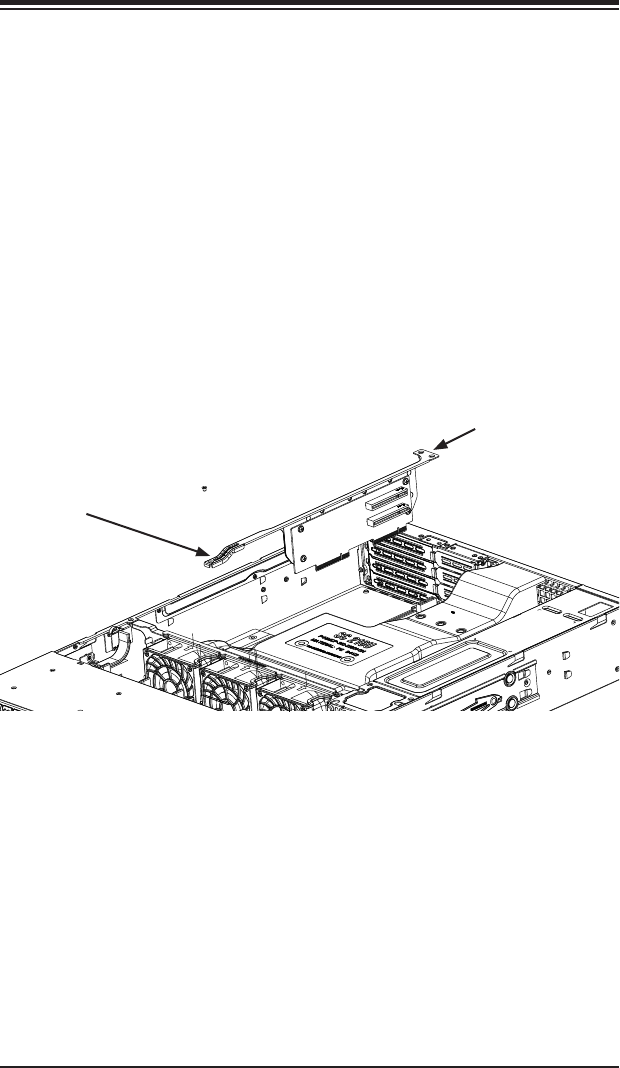

Figure 5-11. Installing the Riser Card Bracket
Secure the head
of the riser card
bracket to the rear
of the chassis with
two screws
Secure the tail
of the riser card
bracket to the
fan tray with one
screw
Installing an Expansion Card for a W or U Model Chassis
1. If this is the rst expansion card, start by locating the riser card bracket in
your chassis accessory bag, and one or two riser cards, which are purchased
separately. One riser card accomodates the full-height expansion cards and
another riser card accomodates the three low prole expansion cards.
2. Power down the system as described in Section 5-2 and remove the cover.
3. Attach the riser card(s) to the riser card bracket using screws. Note that there
are different cards for the right and left side of the bracket.
4. Insert the riser card(s) into the motherboard expansion slot(s) while aligning
the riser card bracket with the rear of the chassis. Secure the bracket with
screws (Figure 5-11).
