Manual

On-Line UPS User Manual

Models: UPS-1500-OL, UPS-2000-OL, UPS-3000-OL

SX-BDL-1500, SX-BDL-2000

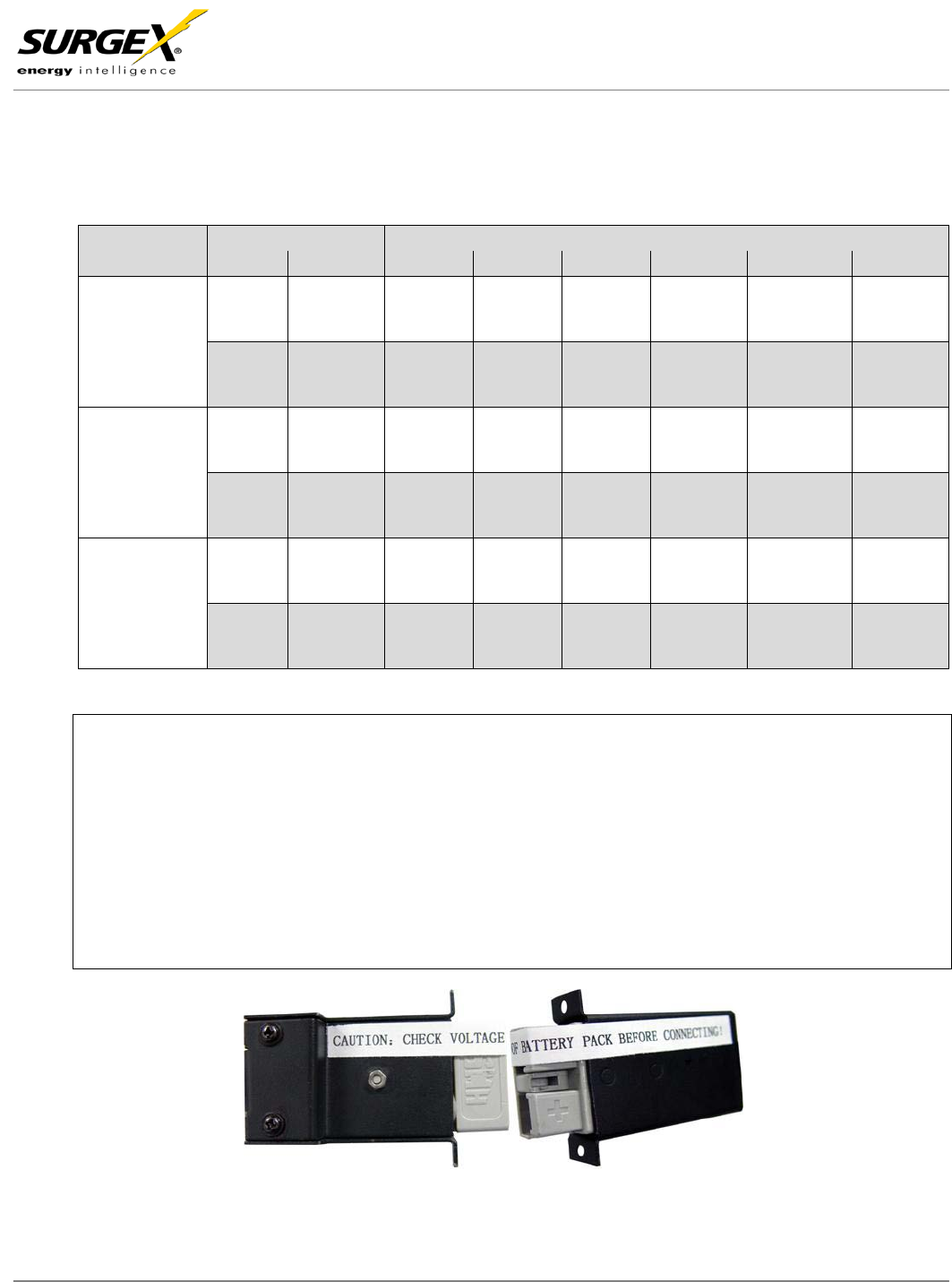

15. Appendix A: Extended Battery Pack (EBP) User Guide

Estimated Run Time for UPS with Extended Battery Packs

MODEL

LOAD

RUNTIME FOR QTY OF EXTENDED BATTERY PACKS IN MIN.

WATTS

UPS

(1) EPB

(2) EPB

(3) EBP

(4) EBP

(5) EBP

SX-BDL-1500

UPS-1500-OL

750 525 18 68 124 184 248 315

1500 1050 9 32 60 90 120 152

SX-BDL-2000

UPS-2000-OL

1000 700 29 109 200 298 402 510

2000 1400 14 52 97 144 194 247

UPS-3000-OL

1500 1050 18 67 123 184 248 315

3000 2100 9 32 60 89 120 152

CAUTION: It is very critical to connect the correct voltage EBP with the UPS intended.

UPS-BPX-1500 is for SX-BDL-1500/UPS-1500-OL

UPS-BPX-2000 is for SX-BDL-2000/UPS-2000-OL/UPS-3000-OL

Connecting the incorrect battery pack to the UPS may result in damage to the UPS and/or battery pack

will void the warranty.

All EBPs have a different DC voltage configuration intended only for the UPS’s listed above. Please do

not mix BPX’s and make sure you only connect the EBP to like EBPs or UPS indicated above. DC

voltages are marked on both the UPS and the EBP – MAKE SURE THEY MATCH.

CAUTION LABEL ON EBP CABLE CONNECTORS –

PLEASE CHECK VOLTAGES CAREFULLY
