Installation Guide

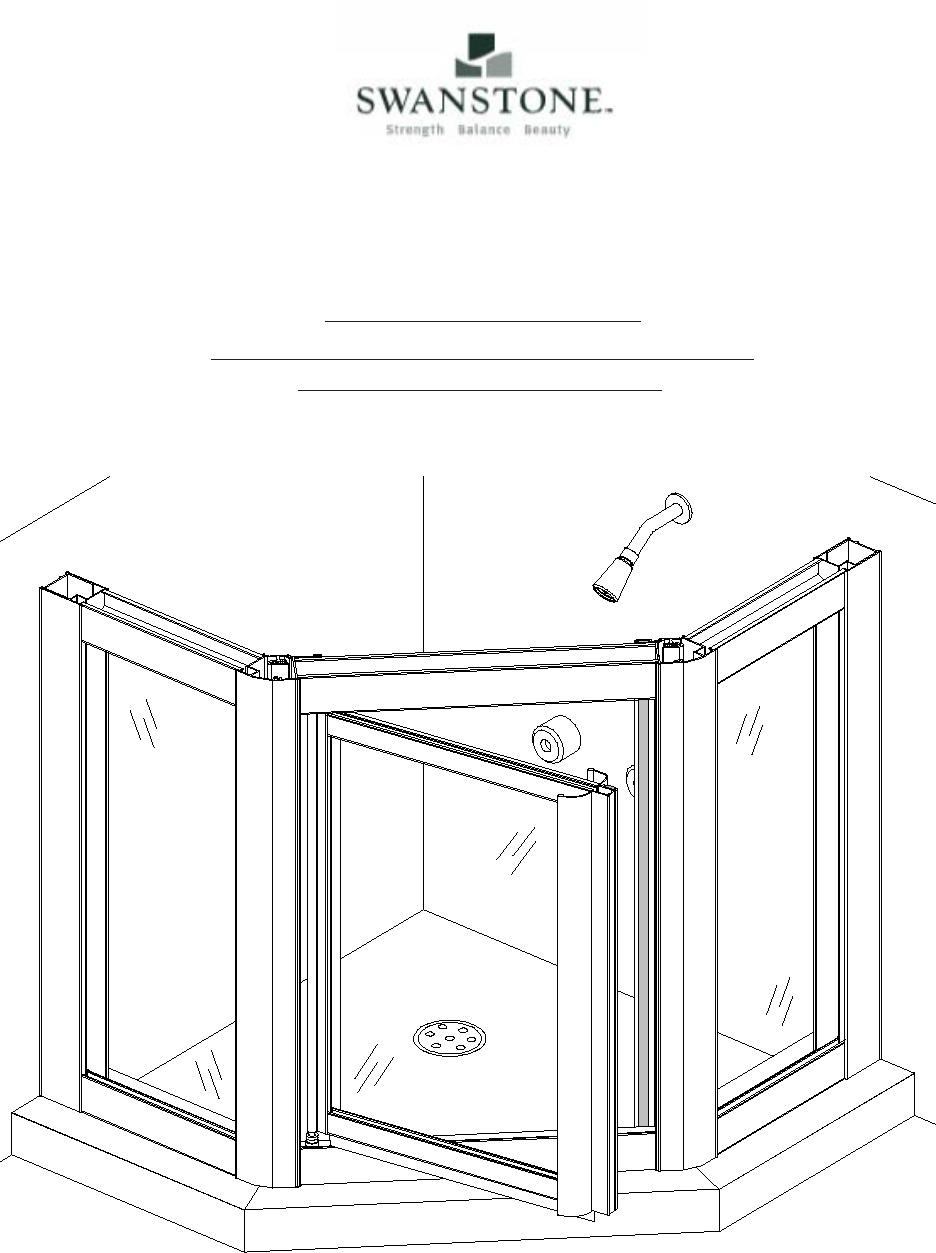

CHALLENGER

MODULAR NEO-ANGLE SHOWER ENCLOSURE

INSTALLATION INSTRUCTIONS

TOOLS / MATERIALS NEEDED

1/8" DRILL BIT LEVEL SAFETY GLASSES

ELECTRIC DRILL HAMMER CLEAR CAULKING OR SEALANT

MEASURING TAPE CENTER PUNCH

PENCIL / FELT TIP PEN PHILLIPS SCREW DRIVER

* FOR CERAMIC TILE WALLS, USE A 3/16" MASONRY DRILL BIT

One City Centre - Ste. 2300

St. Louis, Mo 63101

FAX NO.

(314) 231-8165

TELEPHONE NO.

(314) 231-8148

PAGE 1
FAX NO. (314) 231-8165 TELEPHONE NO. (314) 231-8148 One City Centre - Ste. 2300 St.
PAGE 2
EXPLODED VIEW OF MODULAR NEO-ANGLE (LEFT HAND PIV0T SHOWN) PARTS LIST PART NUMBER 201 B b1 b2 b3 b4 ---210 202 243 834 C c1 c2 c3 c4 c5 c6 c7 c8 c9 c10 c11 c12 c13 c14 ---240 245 241 227 229 226 CP201 CP209 FW 10-093 9842 ---6112FHSL 834 C173B D E F G H I 1329 834P 834PFH 638PHPT C176B C202B DESCRIPTION WALL JAMB SIDE SIDE SIDE SIDE SIDE QUANTITY 2 PANEL ASSEMBLY PANEL RAILS PANEL EXPANDER PANEL CORNER POST PANEL ASSEMBLY SCREW (not shown) 2 4 2 2 8 DOOR FRAME ASSEMBLY DOOR FRAME HEADER / SILL D
PAGE 3
STEP 1 Positioning Wall Jambs Determine the curb centerline, then offset and mark a line 5/8 of an inch toward the outside of shower as shown in figure 1. Separate the Wall Jambs (A) from their respective End Panels (B) as shown in exploded view. Position Wall Jambs (A) up against shower walls . . . aligning their outside legs with the offset mark previously marked on base ledge. Use a level to plumb Wall Jambs (A).
PAGE 4
STEP 6 Caulk for a leak proof installation STEP 4 Vinyl Sweep Insert & Door Frame Installation Measure the Door Assembly width, then trim the Vinyl Sweep to 3/8” less than measurement obtained (see figure above). Notch end of Vinyl Sweep as shown. Determine bottom of Door Assembly and insert Vinyl Sweep into bottom rail. Insert 3/32” notched end first. Fig.
