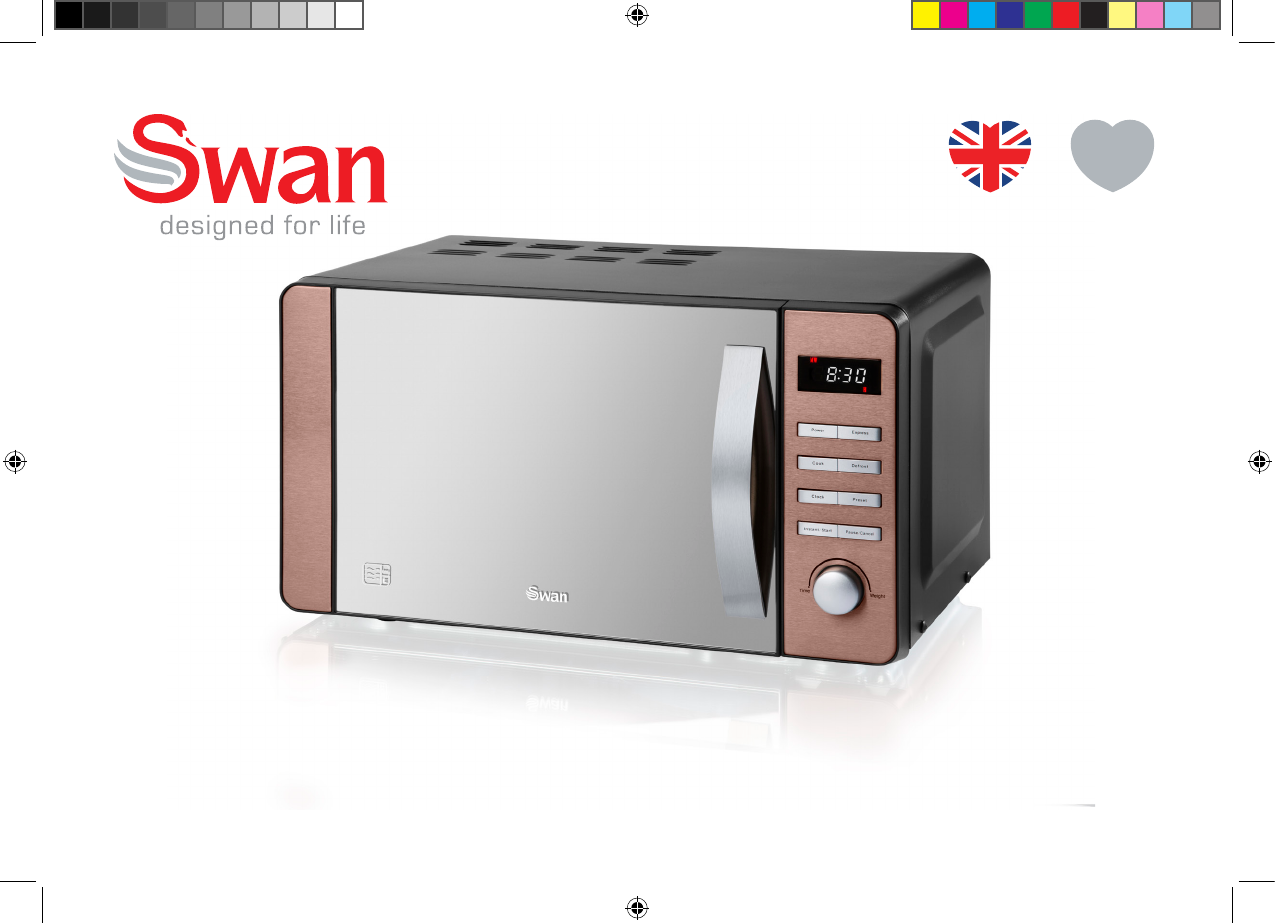

Scan this QR code to hear about our story Est.1931 2 year sGUARANTEE We love what we do we’re proud of our quality Find us on Faceb Digital Microwave Model: SM22090 (all colours) Help line: 01733 404703 SM22090_IM.indd 1 v1.
IMPORTANT SAFEGUARDS Installation 1. 2. 3. 4. 5. 6. 7. 8. Take out all the packing. If there is a safe film over the oven, tear it off before Use. Check carefully for damage. if any, immediately notify dealer or send to the manufacturer’s service center. Microwave ovens must be placed under dry and non-corrosive environments, kept away from heat and humidity, such as gas burner or water tank.
IMPORTANT SAFEGUARDS eruption boiling of liquids. • The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature should be checked before consumption, in order to avoid burns . 5. Don’t operate the oven further if the door or door seal is damaged, or if the oven is malfunctioning, or supply cord is damaged . Return the appliance to the nearest authorised service center for repair and maintenance . Never try to adjust or repair the oven yourself . 6.
IMPORTANT SAFEGUARDS 27. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass . 28. This appliance is not intended for use by persons ( including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety . 29 .
GET TO KNOW YOUR MICROWAVE UTENSILS GUIDELINE It is strongly recommended to use containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use metal containers for microwave cooking and combination cooking as sparks are likely to occur. CONTROL PANEL/PARTS 1. 2. 3. 4. 5. 6. 7. a. Do not remove the Waveguide cover during cleaning b.
HOW TO USE YOUR MICROWAVE BEFORE COOKING Example: to set 12:30 The LED flashes 3 times when plugged in power supply. Then it Steps flashes “:”, prompting you to input the cooking menu and time. 1 Power up the oven TIME/WEIGHT KNOB 2 Press the Clock button once You can increase or decrease cooking time and weight during 3 Turn Temp.Time/Weight knob to set operation by turning Time/Weight button exact hours 4 Press Clock button once again PAUSE/CANCEL 5 Turn Temp.
HOW TO USE YOUR MICROWAVE 3. Microwave cooking Microwave cooking next use. This function function used for cooking and heating food. Press This is used for cooking and heating food.Power Pressbutton, PowerLED • cycles At the maximum microwave power, the oven will automatito show 100P— 80P— 60P— 40P— 20P button repeatedly to cycle through the power options cally lower the power after a certain time of cooking to lengthen the service life. High power 100% microwave power.
HOW TO USE YOUR MICROWAVE EXPRESS Press Express button, LED will cycle to show 0:30, 1:00, 1:30. This function will allow you to heat a cup of water or beverage • conveniently, omitting the steps of setting time. Choose the proper • time depending on the beverage capacity. Example: to cook at P80 (80%) for 10 minutes Steps 1 Power up the oven.
HOW TO USE YOUR MICROWAVE Display Food A.1 Popcorn Method Suitable for bag of popping corn, which is available in the supermarket, up to 85g. Press Pause/Cancel button to stop the popping process A.2 A.3 A.4 Popcorn Same as above but for 100g Warm a piece of chilled pizza 0.15kg Pizza Beverage Heating a cup of 250 ml liquid. The liquid A.5 Beverage Heating a cup of 500 ml liquid.
HOW TO USE YOUR MICROWAVE Cooking Tips The following factors may affect the cooking result: Food arrangement Place thicker areas towards outside of dish, the thinner part towards the Centre and spread it evenly. Do not overlap if possible. Cooking time length Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.
HOW TO USE YOUR MICROWAVE Browning dish When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring. Microwave safe plastic wrap When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt Microwave safe plastic cookware Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content.
CLEANING & MAINTENANCE The oven should be cleaned regularly and any food deposits removed. 1. It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy 2. Remove the power cord from the wall outlet before cleaning. Don’t immerse the appliance in water or other fluids when cleaning. 3.
SERVICING Please check the following before calling for service: a. Place one cup of water (approx.150ml)in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min. b. Does the oven lamp light? c. Does the cooling fan work? (Put your hand over the rear ventilation openings.) d. Does the turntable rotate? (The turntable can rotate Clockwise or counter Clockwise. This is quite normal.) e.
SERVICING SAFEGUARDS MICROWAVE RADIATION! It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy. The temperature of accessible surfaces may be high when the appliance is operating The high voltage capacitor remains charge after disconnection; short the negative terminal of H.
WEEE Directive Warranty This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store. Disposal of Unit Disposal instructions for Swan items in accordance with the WEEE directive. Appliances bearing the symbol shown here may not be disposed of in domestic rubbish.
www.swan-brand.co.uk Scan this QR code to hear about our story Est.1931 2 year sGUARANTEE We love what we do we’re proud of our quality Find us on Facebook Copyright © 2013 Swan Products Ltd. PO Box 3117, Stoke-on-Trent ST4 9GD SM22090_IM.
