System information

17
Main Menu: Opens the Main Menu of the DVR. See
page 18.
PTZ: Opens the Pan, Tilt, Zoom controls. The same
function can be accessed by pressing the PTZ button
on the remote control.
PIP (Picture In Picture): Accesses a list of available
PIP modes. You can also access and cycle through
these modes using the PIP button on the remote
control.

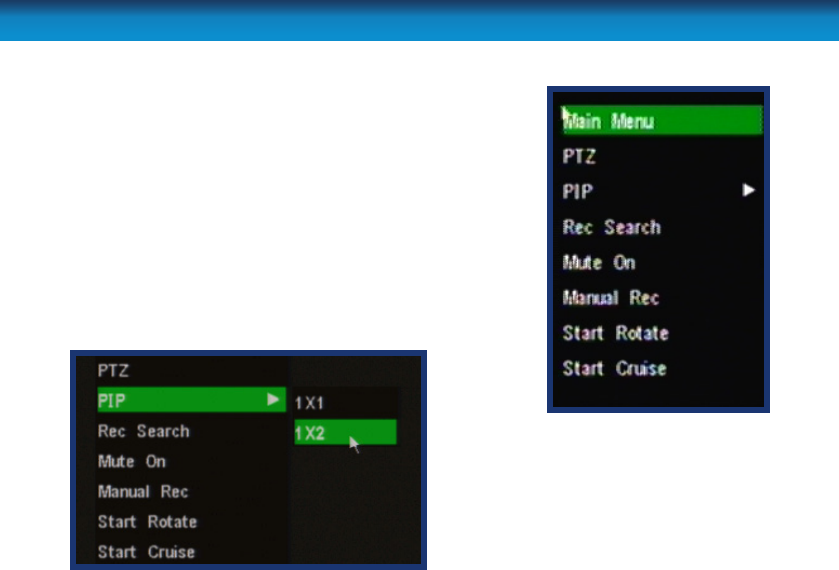

Left:ThePIP options.1x 1 showsone
channelfullscreen withone overlay. 1
x 2 shows one channel fullscreen with
twooverlays.
Rec Search: Opens the Record (Video) Search menu, as detailed on “Record (Video) Search”
on page 33.
Mute On/O: Turns the audio on or o.
Manual Rec: Instantly engages manual recording.
Start Rotate: Initiates the automatic display rotation. Channels will be displayed
sequentially on an automatic loop. To set the rotate time, see page “Video / Audio
Setup Menu” on page 56. If Rotate has already been turned on, then this option
will change to Stop Rotate, which will disable the rotate function.
Start Cruise: This will initiate the cruise mode for PTZ devices. You’ll need to have
congured your PTZ device using the PTZ Conguration menu (page 46) and then
programmed a series of preset points (see “Setting up Cruise Mode” on page 61)
to use as a series of cruise movements.
Lock (only appears once a password has been set - see “User Setup Menu” on
page 54): Locks the DVR’s user interface. Unlocking the DVR requires a correct
username and password combination.
