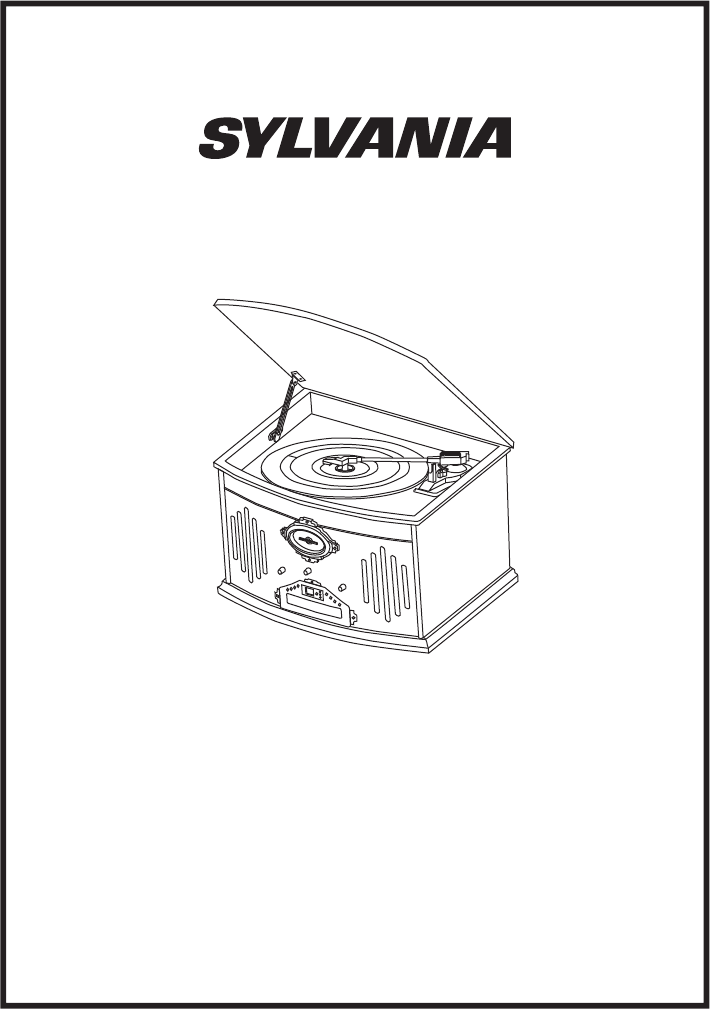

MODEL: SRCD817 PHONOGRAPH WITH AM / FM RADIO & CD PLAYER
IMPORTANT SAFETY INSTRUCTIONS FOR AUDIO PRODUCTS - READ CAREFULLY ALL THE FOLLOWING IMPORTANT SAFEGUARDS When using electrical products, basic precautions should always be followed including: 1. Read these Instructions - All the safety and operating instructions should be read before the product is operated. 2. Keep these Instructions - The safety and operating instructions should be retained for future reference. 3.
15. Warning - To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 16. Power Source - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions. 17.
Preparation of Use There is a screw to protect the phonograph chassis during transportation. Turn the screw clockwise with a coin to its lowest position before you use the phonograph for the first time. Basic Operation 1 Power on. Connect the power plug into the wall outlet. 2 Select the source. 3 Adjust the volume.
Rotate the FM/AM/CD/PHONO knob to select PHONO.
Listening to CD 1 Rotate the FM/AM/CD/PHONO knob to select CD. 1 C D E F G H 2 Open the tray, and place the CD on the tray. 2 3 A B OPEN / CLOSE 3 Close the tray and start playing the CD. OPEN/CLOSE Lights PLAY/PAUSE , CD s should be placed in their trays with the label side up. The CD will start playing from the first track. C Press the F.F button once to go the start of the next track. F.R F.F F.R F.F A Stopping the CD play. STOP Press the F.
Listening to CD E Programmed playback. To repeat a single or the entire disc. F PROGRAM REPEAT This feature allows you to program up to 32 tracks on a disc for playback in any desired order. Note: You cannot program tracks while a disc is playing. If the disc is playing press the STOP button first before beginning the programming steps below: Flash Press the REPEAT button once. The Repeat indicator flashes. Press the F.R or F.
Listening to the Radio 1 Rotate the FM/AM/CD/PHONO knob to select FM or AM. 1 A Antenna For optimal FM reception be sure to stretch the built-in FM antenna wire located at the lower back of the unit and move it around until the station you have tuned in is being received clearly. DO UP WN 2 Tune to the desired frequency. 140 Specifications Output Power : 2.0W + 2.0W FM frequency Range : 87.5 to 108.5MHz AM frequency Range : 525 to 1710KHz SPEAKER : Impedance: 8 ohms Input power: Max.
Care and Maintenance COMPACT DISC CARE To remove a disc from its storage case, press down on the center of the case and lift the disc out, holding it carefully by the edges. Fingerprints and dust should be carefully wiped off the disc's recorded surface with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and microscopic debris, so gently wiping with a soft cloth should remove most particles. Wipe in a straight line from the inside to the outside of the disc.
