Model Number Specification
Dimensions
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Duro shower rebuild trim kit ts any Temptrol
®
valve with
secondary integral diverter or volume control. Rebuild trim
kit components made from brass and nonmetallic
materials. Trim is plated in standard polished chrome
nish.

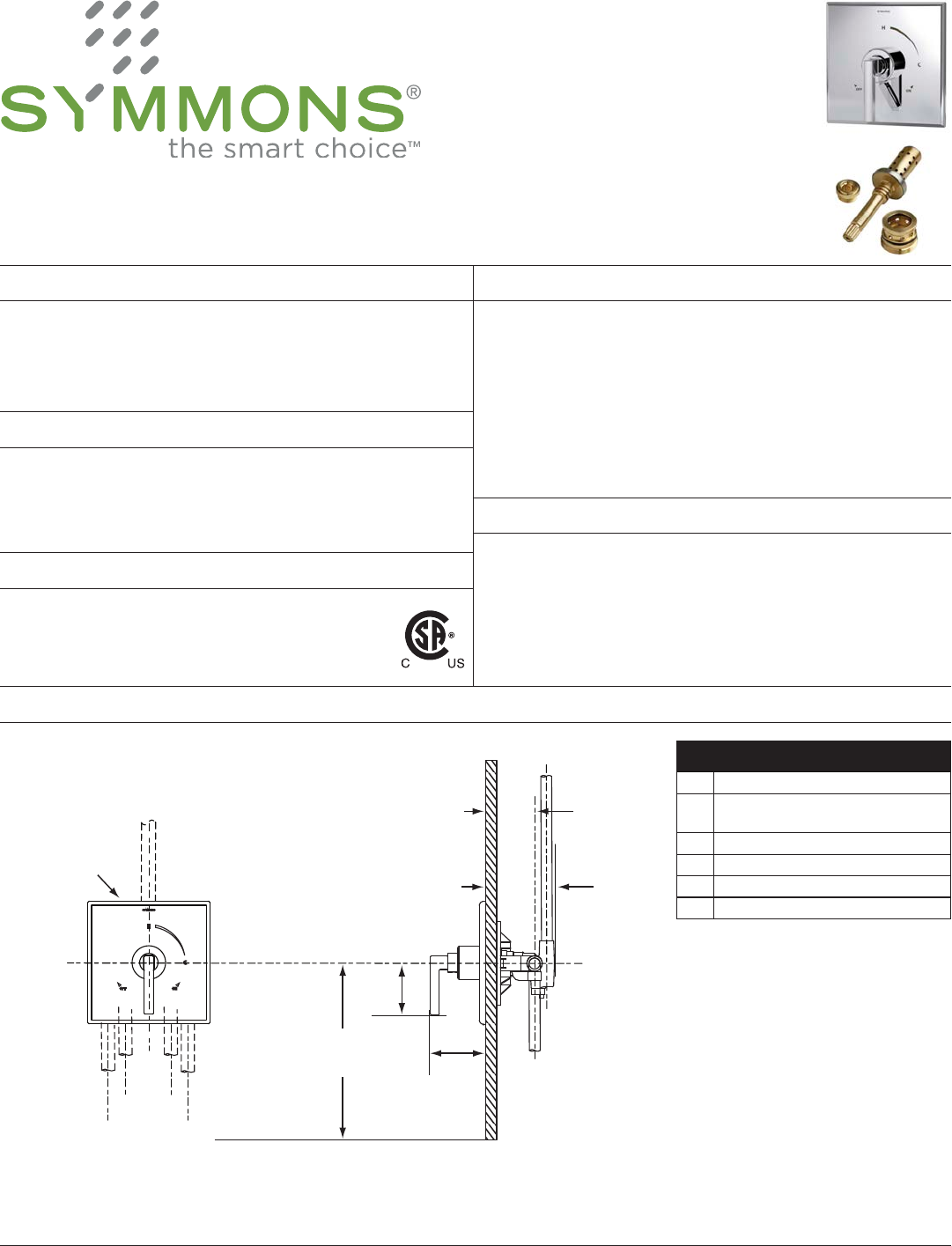

Duro Shower Rebuild Trim Kit
Specification Submittal
S-3600-REB-TRM
Measurements
A 7 1/2”, 191 mm
B
Rough-in
2 3/8” ± 1/2”, 60 mm ± 13 mm
C 3 1/2”, 89 mm
D Ref. 42”, 1067
E 3 1/8”, 79 mm
F 3 3/8”, 86 mm
Location:
Compliance
Note: Append appropriate -sufx to model number.
Modifications
-ASME A112.18.1/CSA B125.1

-STN Satin Nickel finish
Floor
A
C
B
E
D
F

S-3600-REB-TRM Duro Shower Rebuild Trim
Kit with TA-10 Flow Control
Spindle and TA-4 Hot/Cold
Seats.
Notes:
1) All dimensions measured from nominal rough-in (see B as reference).
2) Dimensions subject to change without notice.
Print
Reset Form
