Specification

Symmons Industries, Inc. ■ 31 Brooks Drive ■ Braintree, MA 02184 ■ Phone: [phone] ■ Fax: [phone]
Copyright © 2019 Symmons Industries, Inc. ■ symmons.com ■ [e-mail] ■ ZV-1256 REV A ■ 030519

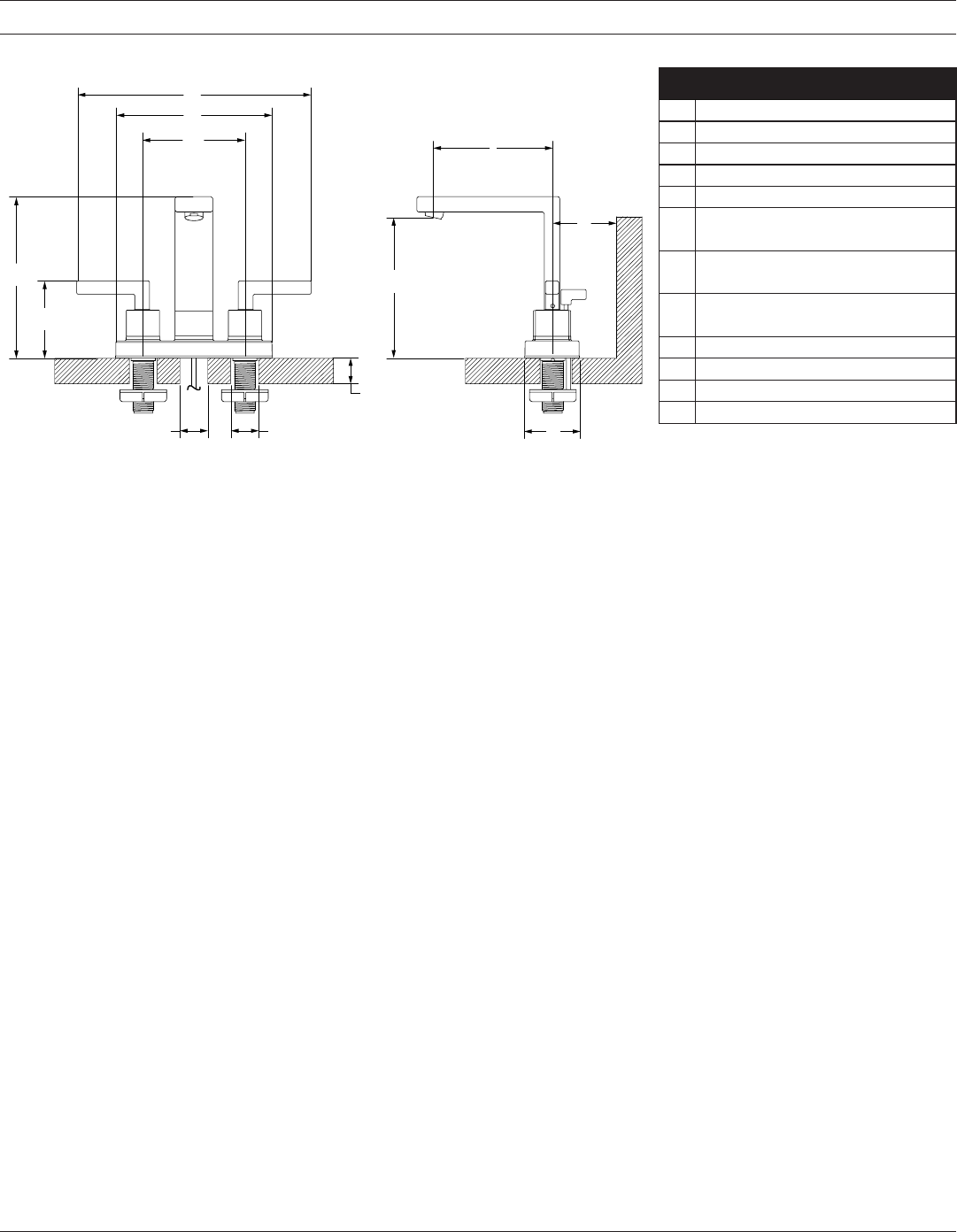

Measurements/Medidas/Mesures
A 9-3/16", 233 mm
B 6-1/8", 156 mm
C 4", 102 mm
D 6-5/16", 160 mm
E 3", 76 mm
F
Min. Ø 1-1/2", 38 mm
Max. Ø 1-5/8", 41 mm
G
Min. Ø 1-1/4", 32 mm
Max. Ø 1-1/2", 38 mm
H
Min. 3/4", 19 mm
Max. 1-1/2", 38 mm
I 4-11/16", 119 mm
J Min. 2-1/2", 64 mm
K 5-1/2", 140 mm
L 2-1/8", 54 mm
FF
LL
GG
AA
B
B
C
C
DD
EE
H
H
II
J
J
KK
Dimensions / Dimensiones / Dimensions
Note: Dimensions are subject to change without notice.
Nota: Las dimensiones pueden cambiar sin previo aviso.
Remarque: Les dimensions sont indiquées sous réserve de modifications.
