Installation & Assembly

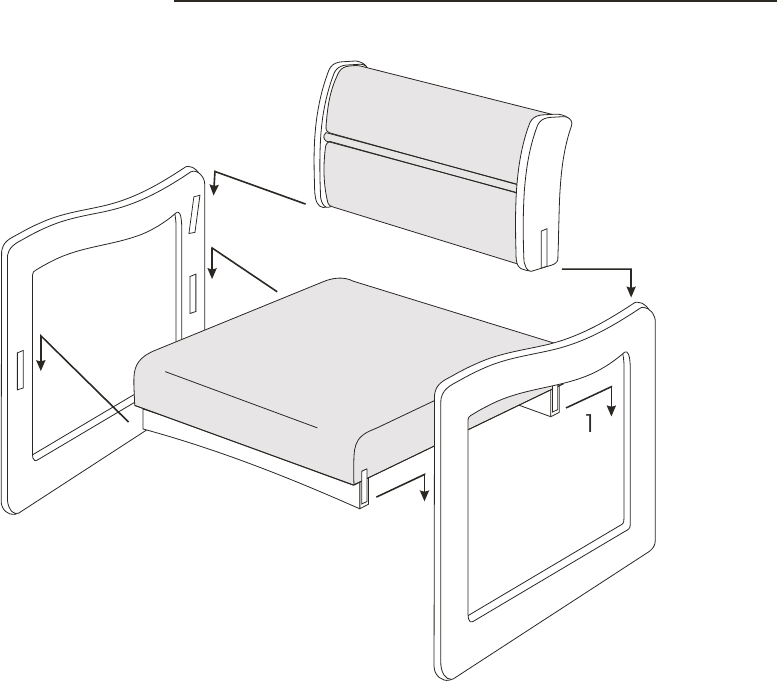

SINGLE CHAIR ASSEMBLY INSTRUCTIONS

1. Slide brackets on one side of the seat cushion (C) down onto brackets of wood

side frame (A). If brackets on the seat (C) don’t line up with the brackets of the side

frame (A), brackets on the seat skirts (S) can be pulled further apart by hand to line

up with the brackets on the frame (A). tighten seat (C) onto frame (A) at this

time.

2. Repeat step 1 with other side frame (A).

3. Slide back (B) into brackets of both wood sides (A) simultaneously.

4. Push down on chair seat (C) to lock the brackets into place. Inspect front and

back of seat to make sure the horizontal wood skirt (S) under seat (C) is not more

than 1/8” away from wood sides (A). If so, pull the back (B) and seat (C) off and reset

into brackets making sure to keep the wood skirt (S) tight against the side frames (A).

Tap down on sides of the back (B) to lock it into place.

5. (Optional) Lock back (B) into place with furnished screws and cover with “Snap

Caps.”

Do not

PAGE 1
SINGLE CHAIR ASSEMBLY INSTRUCTIONS B 3 A 3 2 2 C A 1 S 1 1. Slide brackets on one side of the seat cushion (C) down onto brackets of wood side frame (A). If brackets on the seat (C) don’t line up with the brackets of the side frame (A), brackets on the seat skirts (S) can be pulled further apart by hand to line up with the brackets on the frame (A). Do not tighten seat (C) onto frame (A) at this time. 2. Repeat step 1 with other side frame (A). 3.
PAGE 2
SOFA ASSEMBLY INSTRUCTIONS 9 9 8 9 8 9 7 7 6 9 6 9 5 5 44 9 4 9 3 3 2 2 1 1 A TWO SEAT SOFA CONSISTS OF (1) “DW” AND (1) “DW ADD-ON”. A THREE SEAT SOFA CONSISTS OF (1) “DW” AND (2) “DW ADD-ON”s. A FOUR SEAT SOFA CONSISTS OF (1) “DW” AND (3) “DW ADD-ON”s. A “DW” CONSISTS OF (2) SIDES (1) SEAT AND (1) BACK. A “DW ADD-ON” CONSISTS OF (1) CENTER (1) SEAT AND (1) BACK. 1. SLIDE BRACKETS ON ONE SIDE OF THE SEAT CUSHION DOWN ONTO BRACKETS OF WOOD SIDE FRAME. 2.
