DJI Focus Expansion Module User Guide V1.0 2016.
Disclaimer and Warning Congratulations on purchasing your new DJITM product. The information in this document affects your safety and your legal rights and responsibilities. Read this entire document carefully to ensure proper configuration before use. Failure to read and follow instructions and warnings in this document may result in serious injury to yourself or others, or damage to your DJI product or damage to other objects in the vicinity.

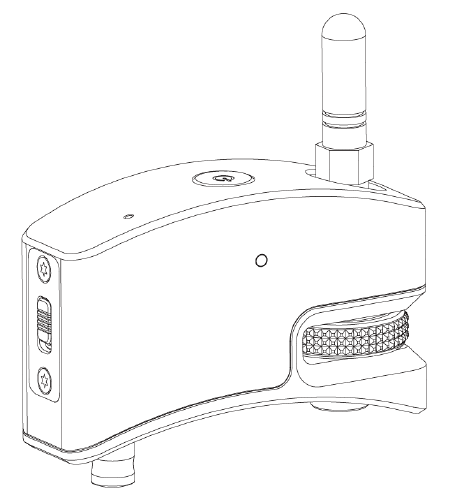

Focus Expansion Module can also be used to wirelessly control the Inspire 1 Pro/RAW camera’s aperture and focus from 3.1 miles (5 km) away. 1. 2. 3. 4. 5. 6. 7. Antenna DJI Focus Remote Controller Power Button Link Button DJI Focus Expansion Module Power Switch Communication Port Lock Knob Status LED Usage 1. Remove the original antenna from the DJI Focus Remote Controller. Do not use the original antenna on the DJI Focus Remote Controller. Instead, use the 5.
3. When used with the Ronin-MX, connect the Communication Port on the Motor to the LB Port and the P-TAP Port by using the provided Power and Communication Cable. 4. Press and hold the power button on the top of the Expansion Module to power on the DJI Focus Remote Controller, and toggle the power switch up to power on the Expansion Module.
Linking The DJI Focus Expansion Module must be linked to the master remote controller of the Matrice 600 or Inspire 1 Pro/RAW in order to work. How to Link 1. Power on the remote controller for the Matrice 600 or Inspire 1 Pro/RAW, and press the C1, C2 and video recording buttons simultaneously. Release the three buttons when you hear a beeping pattern consisting of 1 long beep followed by 2 short beeps, and then press the shutter button once.
could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
radiator& your body. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. EU Compliance Statement: SZ DJI TECHNOLOGY CO., LTD. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the R&TTE Directive. A copy of the EU Declaration of Conformity is available online at www.dji.com/euro-compliance EU contact address: DJI GmbH, Industrie Strasse.
